Narrow Brick Extension for Doorbells |Ring Wired Doorbell | Std 5/8in Offset Extender for Storm Door
Ring Doorbell Wired (2021) Standard Offset Brick Extension | Storm Door Solution
Compatibility: Ring Video Doorbell Wired (AKA 2021 Model) ONLY!
- Fits ONLY: The compact Ring Video Doorbell Wired (also known as Ring Wired 2021).
- Confirm your model matches the image below:
-
(Example Images - Click first for Amazon Link. As an Amazon Associate, I earn from qualifying purchases.) - WILL NOT FIT: Any other Ring model (Pro, Pro 2, Plus, Battery versions, Gen 1/2, etc.).
- Surface Width: Requires mounting surface (trim/molding) to be AT LEAST 9/16 inches wide for the base.
Confused by Ring models? Check our Ring Model Guide or contact us!
Extend Your Ring Wired Doorbell Past Brick & Clear Storm Doors!
Is your Ring Video Doorbell Wired (2021 model) mounted on trim set back behind brick or stone? Did a new storm door installation leave your doorbell too close to open properly? This **Standard Offset Brick Extension Mount** is the perfect solution!
It extends your doorbell forward (select desired length) and shifts it sideways with our standard 5/8" offset, providing crucial clearance while improving visibility. Mounts easily to your existing trim (minimum 9/16" wide) without drilling into brick.
How it Works: Standard Offset (5/8")
This mount features our popular STANDARD OFFSET, which shifts the center of your Ring Wired Doorbell approximately 5/8 inches horizontally towards the brick side from the center of the narrow 9/16" base. This typically leaves about **3/8 inch** of the base visible near the door frame and positions the doorbell partially over the adjacent brick face.
This mount positions the doorbell over or in front of the brick face, not flush with it.
Standard Offset (This Product) vs Full Offset:
Need Maximum Sideways Clearance? Click here for the Full Offset version for the Ring Wired (2021).Base Dimensions & Mounting: The standard mounting base for offset extensions is 9/16 inches wide (requires >= 9/16" surface). Standard mounting hole spacing is 2.5 inches (center-to-center). Ensure solid mounting on trim. Wall-mounting screws not included.
Angled Trim? If your trim is angled, add our Angle Shims (sold separately) for a perpendicular installation.
CRITICAL: Measure & Select Your Extension Length!
Choose the correct length to clear your brickwork or storm door. Measure carefully:
- Measure the exact distance straight out from the surface where the mount base will attach (your trim) to the outermost face of your brick or obstacle.
- Order THIS measurement as your required Extension Length. (Do NOT subtract doorbell thickness for offset mounts).
Select the required extension length from the dropdown menu when ordering. (Starts at 1/4 inch).
Need help measuring? Text/email a picture! (Contact info below)
Key Features & Benefits:
- Designed For: Ring Video Doorbell Wired (2021 Model) ONLY.
- Standard 5/8" Offset: Provides good clearance for many storm doors and trim situations.
- "Over Brick" Placement: Extends doorbell forward past brick and partially over the brick face.
- Avoid Drilling Brick: Mounts to existing trim (>=9/16" wide, Std. 2.5" hole spacing).
- Selectable Extension Length: Order the precise depth needed (Trim-to-Brick/Obstacle measurement).
- Narrow Base (9/16" Std): Fits most standard trim widths.
- Wire Passthrough: Internal channel accommodates wiring.
- Durable PETG Construction: Strong, weather-resistant plastic.
- Add-on Compatible: Works with angle shims, fillers etc. (see below).
- Future-Proof Bracket: Top adapter bracket potentially replaceable for future upgrades (check compatibility).
How to Install Your Standard Offset Extension
This mount uses two main printed pieces: the Extension Base and the Doorbell Adapter Bracket.
-
Tools & Prep: Gather: Drill, PH1 & PH2 Philips Screwdrivers/Bits, Level, Anchors (if needed).
Turn OFF power at the breaker!
-
Mount Extension Base: Position the Extension Base (correct length/offset) on trim over wires (ensure offset provides desired clearance). Attach securely using appropriate screws (#6 size likely, use PH2) and anchors if needed into the 2.5" spaced holes.
Ensure base is level. Drill pilot holes. Don't overtighten.
-
Attach Doorbell Adapter Bracket: Route wires through the Doorbell Adapter Bracket (top piece for Wired 2021). Align onto Extension Base. Attach using the four small center screws provided (likely #4 screws / PH1 driver).
Use correct PH1 bit. Tighten until flush. Check for/clear debris if needed. Do NOT over-torque.
- Wire Doorbell: Connect wires to your Ring Video Doorbell Wired following Ring's instructions. Tuck excess wire into base cavity.
-
Attach Ring Doorbell Wired (2021):
- Align the **Ring Video Doorbell Wired** directly onto the Doorbell Adapter Bracket.
- Secure the doorbell body to the Adapter Bracket using the small screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver). Do NOT use Ring's wall screws here.
Use correct PH1 driver. Tighten gently, avoid overtightening. - Final Check & Power On: Ensure doorbell is secure. Turn power back on and test.
Follow safety rules & Ring's guidelines. Use correct anchors/screws for wall type. Correct screwdriver size prevents stripping.

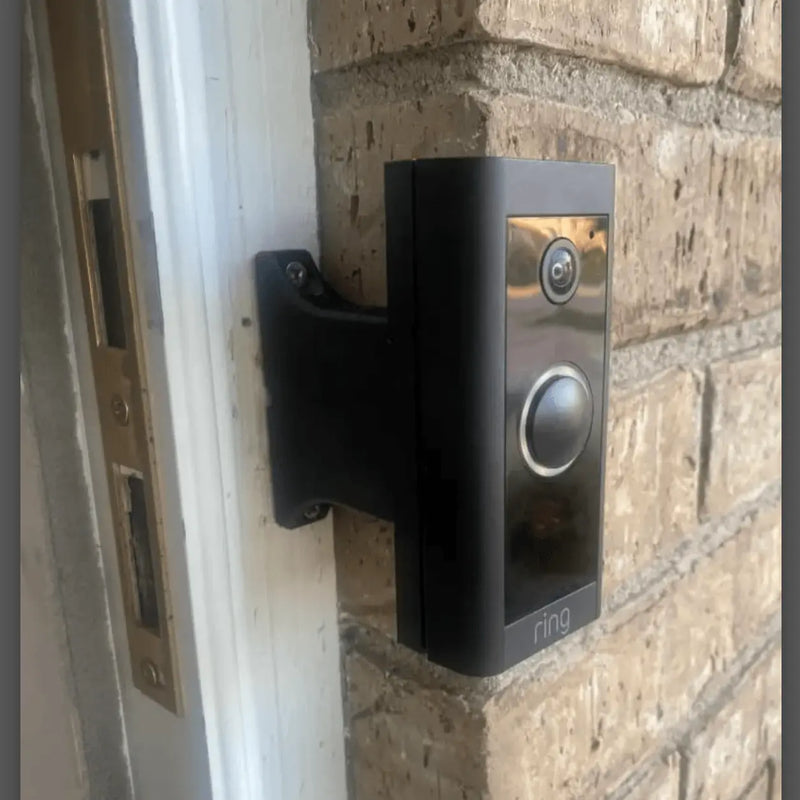

Ideal for Brick Walls & Improved Visibility
Perfect Fit for Recessed Trim
Specifically designed for homes where trim is set back from brick or stone, this extension allows secure mounting without difficult masonry drilling. The standard 5/8" offset effectively positions the Ring Wired Doorbell for better accessibility and function.
Improved Visibility and Convenience
By extending your Ring Wired Doorbell away from the wall and slightly offset, you improve the camera's line of sight, especially useful if porches or landscaping cause obstructions. This ensures guests can easily find and use the doorbell.
Simple and Effective Installation
Installation is straightforward using existing trim as the mounting point. Our instructions and included hardware make it accessible for homeowners to achieve a secure, professional-looking result quickly and efficiently.
Optional Add-ons & Accessories:
Further customize your installation:
-
Angle Shims (5°, 10°, 15°)Corrects for angled trim *under the Extension Base*.
-
Horizontal Angle Adapter or Swivel Add-onAdd horizontal angle adjustment to the end of the extension.
-
Bottom Filler Spacer PlateFills the gap below the extension base on angled/uneven trim.
-
Body Shim Filler PlateFills gaps between the extension body and uneven brick.
-
Add Side Wire EntryAdds side entry holes ("mouse holes") to the *Extension Base* (add service to cart).
Product Examples
(See listing photos for details or contact us for more examples!)
Need Help? Confirm Compatibility & Measurements!
Ensure you have the correct Ring Video Doorbell Wired (2021 Model). Need help measuring the extension length required?
- Email: shop@doorbellmount.com (Send Pictures!)
- Text/Call: 1-833-326-6868 (Text Pictures! Corrected Number)
Standard Color: Black. For other colors, add the Color Change Request item.
Doorbell Not Included. Includes the 2-piece extension mount (Extension Base + Doorbell Adapter Bracket) and necessary assembly screws.
PETG Material: Printed in durable, outdoor-rated PETG.
3D Printed Quality: Minor cosmetic variations inherent to 3D printing may exist but do not affect function. Contact us with quality concerns before reviewing.
Order your Standard Offset Brick Extension for the Ring Video Doorbell Wired (2021) today! Perfect for clearing storm doors. Remember to measure carefully (Trim to Brick Face!) and select your required extension length.
