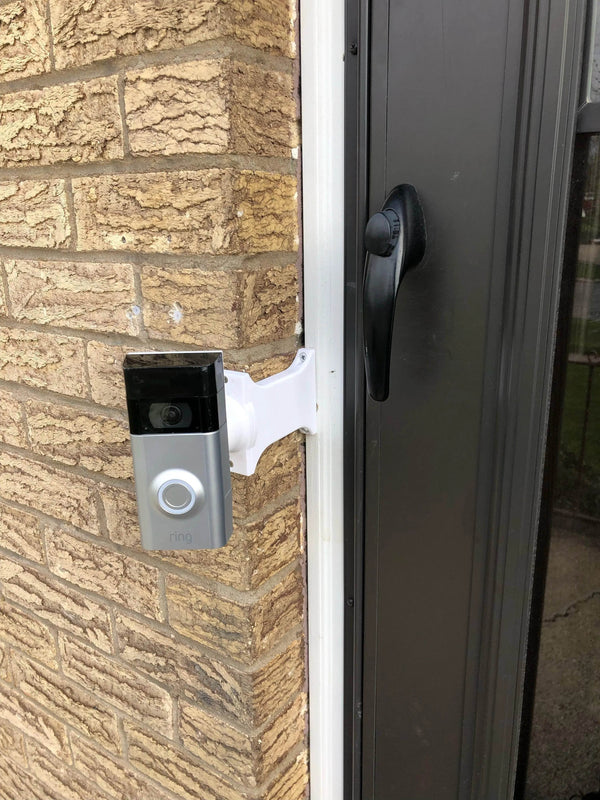

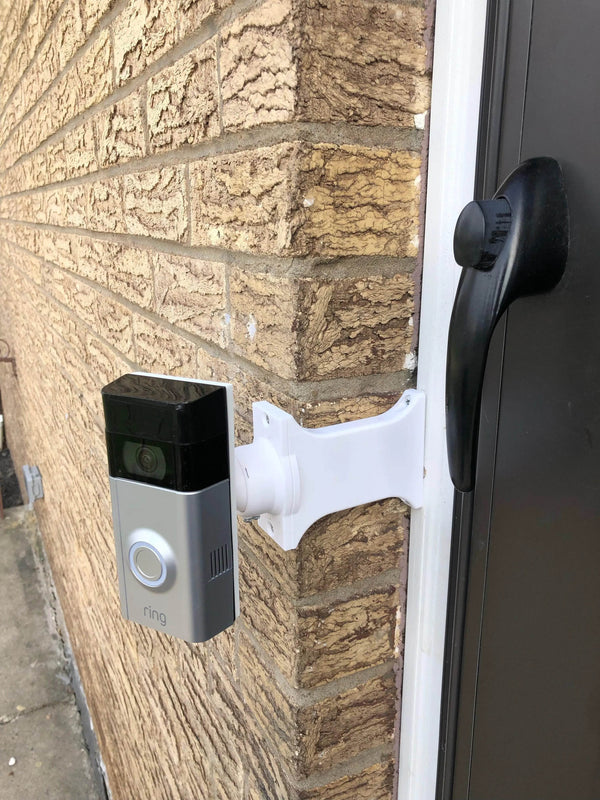

Ring 2/3/4/Plus Battery Doorbell Brick Extension with Adjustable Mount 15-90 Degree
Brick Face Extension | Ring 2/3/Plus/Pro Battery Doorbell | Extend to Face of Bricks
Brick Face Extension | Universal Mount Selection|Extend to Face of Bricks Centered over Old Doorbell
Adjustable Depth Extendable Doorbell Mount | Optional Angle | Universal Selection
Brick Extension Mount - 9/16in Wide, Standard Offset | Universal Fit Mount
Brick Extensions for Ring Doorbells with Removable Batteries
For Ring Models 2, 3, 3+, 4, Battery Plus & Battery Pro
This collection features **Brick Extension Mounts** designed for the series of **Ring Video Doorbells that use a REMOVABLE BATTERY**. This includes models like the Ring Video Doorbell 2, Ring 3, Ring 3 Plus, Ring 4, Ring Battery Doorbell Plus, and Ring Battery Doorbell Pro.
Key Identifying Feature: These doorbells have a **faceplate that removes** to access the battery and reveal **4 screw holes** (2 near the center, 2 near the bottom) on the doorbell body. Our brackets are specifically designed for this 4-screw pattern.
Left: Example of Ring doorbell with faceplate off showing screw holes. Right: Our compatible 4-screw adapter bracket.
This will NOT fit Ring models with integrated (non-removable) batteries like the Ring Video Doorbell (Gen 2 / 2020 release) or any Pro/Wired series. Please consult our Ring Model Identification Guide or contact us with a picture if unsure!
View Example: Ring Battery Doorbell Plus on Amazon (Affiliate Link)
Why Our Brick Extensions for Your Removable Battery Ring Doorbell?
Our Brick Extension Mounts are engineered to solve common installation problems when mounting these Ring models on trim that is recessed behind brick or stone:
- Custom-Fit Adapter Bracket: The top bracket is designed specifically for the 4-screw mounting pattern of the Ring Removable Battery series.
- Improved View & Door Clearance: Extends your doorbell forward past obstructions.
- Avoids Drilling Brick: Mounts to your existing door trim (typically 9/16" wide base).
- Two Offset Options: Choose Standard Offset (with 5/8" doorbell overhang on door side) or Full Offset (doorbell edge flush with mount on door side) for the right clearance.
- Selectable Extension Length: Order the exact extension depth you need.
- Durable & Weather-Resistant PETG: Built for outdoor use.
When you order a Brick Extension and select your specific Removable Battery Ring model, you will receive the correct 4-screw adapter bracket.
Our Brick Extension Offset Styles for Ring Removable Battery Doorbells:
Both styles allow you to select the extension length based on your "Trim to Brick Face" measurement. The difference is how the doorbell is positioned relative to the door side of the mount base:
Illustration: Standard Offset (Red on left) results in approx. **5/8 inch of the doorbell body overhanging the trim on the door side**. Full Offset (Blue on right) shifts the doorbell fully over the brick, making its edge flush with the mount base on the door side.

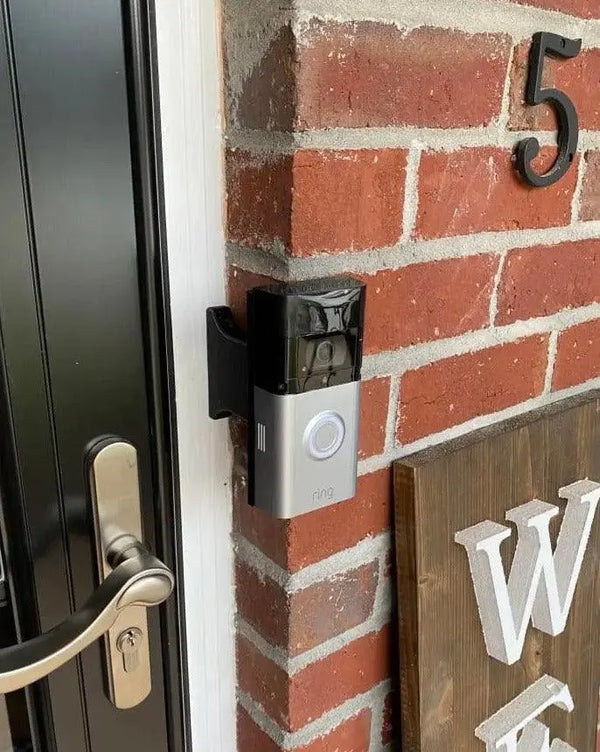

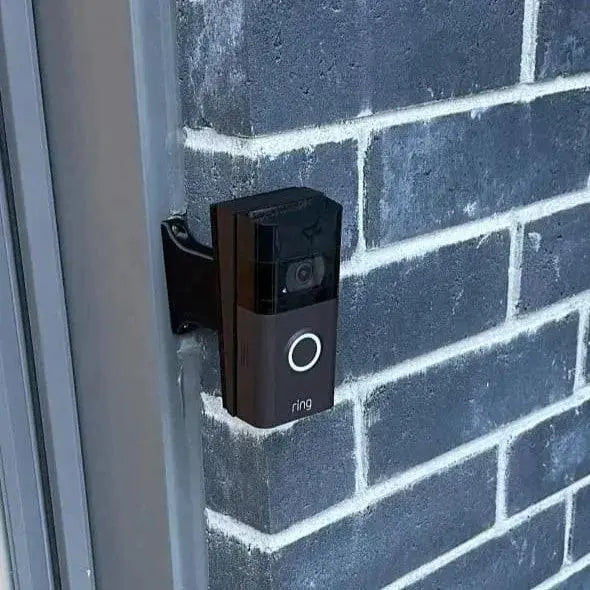

Standard Offset Brick Extension
Our Standard Offset positions your Ring doorbell partially over the brick, leaving approximately **5/8 inch of the doorbell itself overhanging the trim on the door side**. Good for many general clearance needs. Base is 9/16" wide.
Select your specific Ring Removable Battery model & desired length.

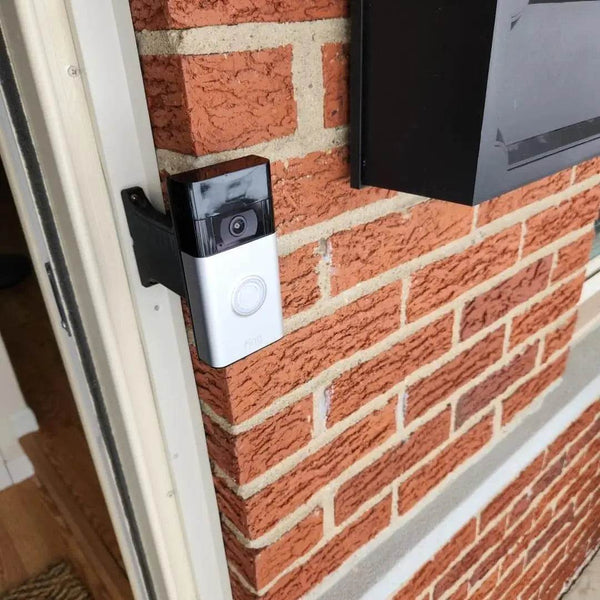

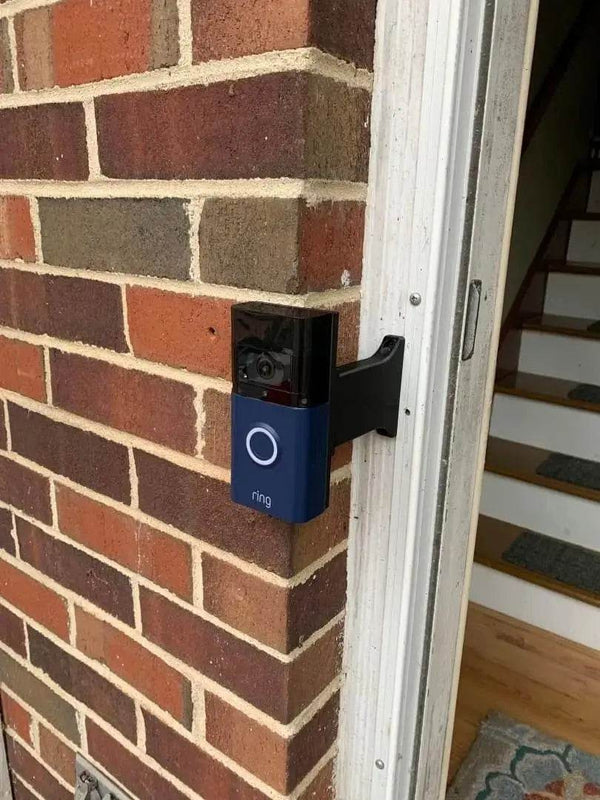

Full Offset Brick Extension (Max Clearance)
Need maximum space from your door swing? The Full Offset design shifts your Ring doorbell **entirely over the brick**, making the doorbell edge flush with the mount base on the door side. Base is 9/16" wide.
Select your specific Ring Removable Battery model & desired length.
Customize Your Brick Extension Installation:
Enhance your setup with these optional add-ons:
-
Angle Shims for BaseCorrects for angled trim under the extension base (5°, 10°, 15°).
-
Angle Adapter / Swivel TopAdd horizontal angle adjustment (fixed or swivel) to the end of your brick extension.
-
Bottom Filler Spacer PlateFills the gap below the extension base on angled or short trim.
-
Side Shim Filler PlateFills gaps between the extension body and uneven brick, adds stability.
-
Add Side Wire Entry ("Mouse Hole")Service to add side entry holes to the *Extension Base* for wire routing.
Perfectly Extend Your Removable Battery Ring Doorbell!
Ensure your Ring Video Doorbell (2, 3, 3+, 4, Battery Plus, or Battery Pro) has a clear view and is safe from door swings. Our Brick Extensions provide a tailored solution for mounting on recessed trim.
Remember to carefully measure your required extension length and select your preferred offset type and specific Ring model!
Questions About Your Ring Removable Battery Doorbell Extension?
Correct model identification is crucial! This page features Brick Extensions for Ring Doorbells with a **removable battery** and 4-screw mounting pattern. Use our guide or send us pictures if unsure.
- Email: shop@doorbellmount.com (Send pictures!)
- Text/Call: 1-833-326-6868 (Text pictures!)
Standard Color: Brick Extensions for these Ring models ship in Black. White or other colors can be requested via our Color Change Request add-on.
Ring Doorbell Not Included: All listings are for the brick extension mount (base + custom adapter bracket for your selected Ring Removable Battery model) and assembly screws only. The Ring doorbell device must be purchased separately.
Model Compatibility: Specifically for Ring Video Doorbells with removable batteries (2, 3, 3+, 4, Battery Plus, Battery Doorbell Pro). Not for other Ring models.
3D Printed Quality: Our mounts are produced using durable PETG 3D printing. Minor cosmetic variations or layer lines may be visible but do not affect durability or function. Your satisfaction is guaranteed.
