15-90° Adjustable Swivel Mount for Eufy Video Doorbell S220 (2022) | 2K Battery | Side-Wall Aim & Lock

$50.00
$40.00
15-90° Side-Wall Aim & Lock Mount for the Eufy Video Doorbell S220 Custom-Fit for the Eufy Video Doorbell S220 (Battery, 180-Day) This bracket is shaped specifically for the Eufy Video Doorbell S220 (2022) — Amazon ASIN B081C4JN51. The S220 is...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Side-Wall Aim & Lock Mount for the Eufy Video Doorbell S220

Custom-Fit for the Eufy Video Doorbell S220 (Battery, 180-Day)

  • This bracket is shaped specifically for the Eufy Video Doorbell S220 (2022) — Amazon ASIN B081C4JN51. The S220 is the long-battery Eufy — 180 days per charge under typical use. Fully wireless, requires HomeBase 2 or HomeBase 3.
  • Does NOT fit: other Eufy models (E340, S330W, C30, C31 each have their own listing) or any non-Eufy brand.
  • Not sure which Eufy you have? Send a photo of the back of your doorbell to shop@doorbellmount.com.
Don't have the doorbell yet? Get the Eufy Video Doorbell S220 on Amazon →

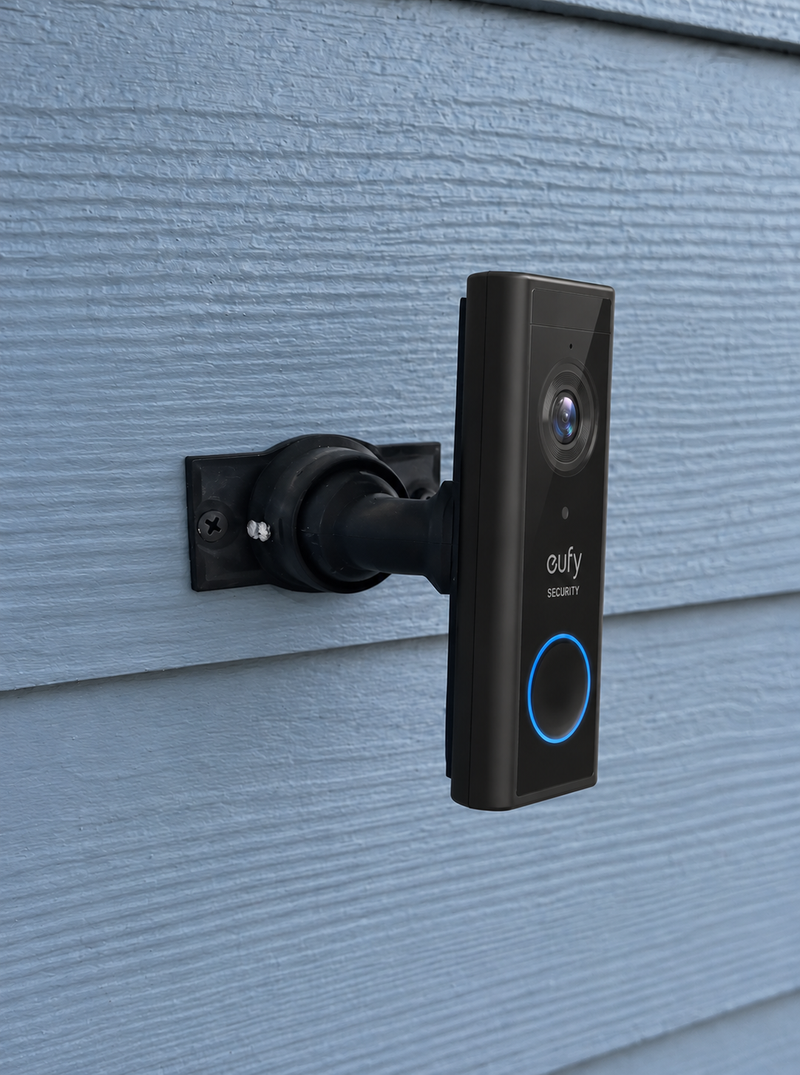

Long-Battery Doorbell Meets Permanent Side-Wall Aim

Six months between charges is the S220's killer feature — once you mount it, you really don't want to touch it again until next spring. This 15-90° bent-neck swivel is built for that level of permanence: set screws lock the angle for years, the PETG won't yellow or warp, and the dual-axis pivot lets you nail the side-wall aim once and walk away. No annual readjustment, no creep, no fuss.

180-day battery life on the S220 means you set the mount angle once and then mostly forget about it — the locking set screws are built for that timescale.

Wide Dual-Axis Control (15-90°) — Tuned for the S220

Bent-neck swivel joint, precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently — matched to the S220's 6-month install rhythm.

15-90 degree mount adjustability diagram for Eufy S220 battery
15° to 90° pivot — dual-axis swivel for perpendicular installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Eufy S220 for flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit Bracket for S220: Slim, model-specific pocket — no rocking, no rattle.
  • Wide Adjustable Angle (15-90°): Substantial dual-axis swivel for side-wall geometry.
  • Set-Screw Permanent Lock: Set the angle once, walk away forever — matches the S220's 180-day install rhythm.
  • Battery-Friendly Cavity: No wire pass-through clutter (the S220 is battery-only).
  • Outdoor PETG: UV-stable, freeze-tolerant, won't yellow or warp.
  • Siding Compatible: Flat surfaces and lapped siding up to 1.8 inches wide.
  • Universal Eufy Base: Future-proof — swap a $10 adapter to upgrade later.
  • Complete Kit: 15-90° swivel base, custom S220 adapter, set screws, mounting screws + anchors.
  • Made in USA: Printed-to-order in our shop with 24-48 hour turnaround.

Customization & Add-On Options

Installing on the Eufy S220

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket/set/doorbell screws provided), wall anchors if needed, level.
    Battery-only doorbell — no transformer needed. Long battery life means very few dismounts per year.
  2. Plan the Aim Angle BEFORE Drilling: Stand where a visitor would stand. Visualize the angle from doorbell to that spot.
  3. Mount the Base: Position vertical and attach using #6 screws (PH2 driver) with anchors as needed.
  4. Attach the Swivel Bracket: Align onto the base and attach using four #4 / PH1 center screws.
  5. Set Initial Angle: Adjust within 15-90°. Lightly tighten one or two set screws for now.
  6. Charge the S220 Battery: Charge fully via USB-C before mounting. 180-day battery life means once or twice a year service.
  7. Attach the Doorbell: Use the screws PROVIDED WITH THIS MOUNT (#4 / PH1 driver). DO NOT USE Eufy's stock screws.
  8. Aim Using Live View: Open eufy Security app → Live View. Adjust through 15-90° until porch path is centered, then fully tighten the set screws.
  9. Tune Motion Zones: Redraw motion zones to match the new angle.

FAQ — Eufy S220 15-90° Mount

Will this 15-90° mount fit the Eufy Video Doorbell S220?
Yes. Custom-shaped for the Eufy S220 (2022), Amazon ASIN B081C4JN51. Will not fit other Eufy models like E340, S330W, C30, or C31.
Difference between this 15-90° mount and the 0-35° mount?
The 15-90° mount is for substantial side-wall corrections (perpendicular installs). The 0-35° mount is for fine-tuning aim on flat walls.
Can I install on vinyl, Hardie, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, use the Hardie Siding Mount for cement board, or drill pilot holes with masonry anchors for stucco.
Is the mount weatherproof?
Yes. UV-stabilized PETG, freeze-tolerant. 4+ year real-world track record.
Does the mount support the S220's removable battery?
Yes — the S220's battery is removable, but you only do this twice a year given the 180-day battery life. The doorbell pops off the adapter cleanly when needed; the mount stays put on the wall.
Will the swivel hold its angle for 6+ months between battery swaps?
Yes. The dual set-screw lock is rated for years, not months. Real-world S220 installs on this mount have held their angle for 4+ years without readjustment. PETG is UV-stable and freeze-tolerant, so no drift.
Does this need a HomeBase 2 or HomeBase 3 to work?
The mount itself doesn't need anything — it's a passive bracket. The S220 doorbell does require HomeBase 2 or 3 for storage and notifications. If you're already running an S220, your HomeBase setup is unchanged by this mount.

Replacement Guarantee

If your mount breaks, cracks, or fails for any reason within the first year of ownership — even if the cause is your own install error — we'll print and ship a free replacement at no cost to you.

Email shop@doorbellmount.com with a photo and your order number. We typically print and ship within 48 hours.
