15-90° Adjustable Swivel Mount for Eufy Video Doorbell S330 Wired (2022) | 2K HDR Dual Cam | Wide-Angle Tilt & Pivot

$50.00
$40.00
15-90° Adjustable Side-Wall Pivot for the Eufy Video Doorbell S330 Wired Custom-Fit for the Eufy Video Doorbell S330 Wired (Dual Cam 2K HDR) This bracket is shaped specifically for the Eufy Video Doorbell S330 Wired (Dual Cam 2K HDR) (2022)...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Adjustable Side-Wall Pivot for the Eufy Video Doorbell S330 Wired

Custom-Fit for the Eufy Video Doorbell S330 Wired (Dual Cam 2K HDR)

  • This bracket is shaped specifically for the Eufy Video Doorbell S330 Wired (Dual Cam 2K HDR) (2022) — Amazon ASIN B09Q2NGQL8. The S330 (formerly sold as 'Eufy Video Doorbell Dual') was the first Eufy doorbell with two lenses — main camera plus integrated package camera. Hardwired only, requires HomeBase 2 or 3.
  • Does NOT fit: other Eufy models (E340, C31, C30, S220 each have their own listing) or any non-Eufy brand. The mounting footprint is consistent across the Eufy lineup, but the doorbell-side adapter bracket is custom-cut for this specific body shape.
  • Not sure which Eufy you have? Send a photo of the back of your doorbell to shop@doorbellmount.com or text us — we'll confirm fit before you order.
Don't have the doorbell yet? Get the Eufy Video Doorbell S330 Wired on Amazon →

Looking for related guides? Check our DoorbellMount.com Blog for installation tips, model comparisons, and side-wall geometry advice.

Wide-Angle Aim for the Original Dual-Cam Doorbell

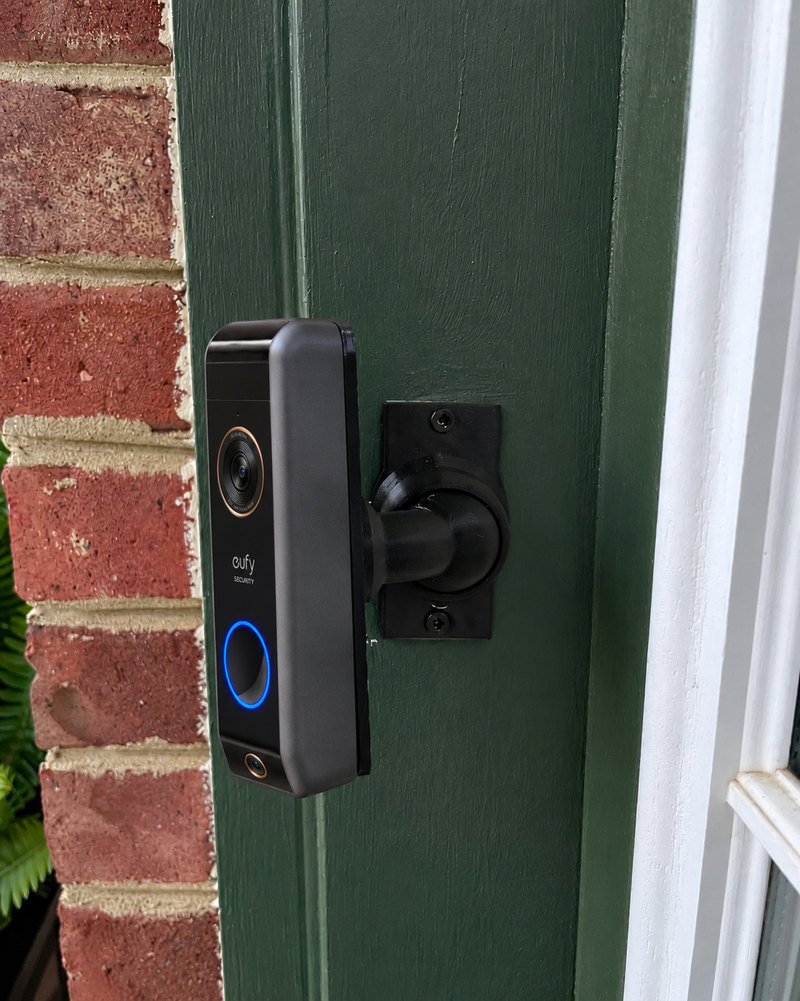

The S330 Wired pioneered the dual-camera doorbell category for Eufy — brilliant 2K HDR plus a built-in package camera. But mounted on a side wall, the second lens just sees siding. This 15-90° bent-neck swivel rotates both cameras together so the package lens actually sees packages and the main lens centers on visitors. Locks permanently with set screws. PETG construction, freeze-tested down to -20°F.

S330 streams 2K HDR with full color night vision — the swivel locks the angle so HDR tonal mapping isn't fighting an off-axis frame.

Wide Dual-Axis Control (15-90°) — Tuned for the S330 Wired

Designed for significant angle correction, this mount features a bent-neck swivel joint. Precise aiming control across a 15° to 90° arc relative to the wall — ideal for side-facing views (excels at angles greater than 45°). Fine-tuning works horizontally (left/right) and vertically (up/down). Once the angle is set, the locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Eufy S330 Wired dual-camera
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Note: this design is optimized for substantial side angles. If you only need a very minor adjustment, see our 0-35° Swivel Mount for the Eufy Video Doorbell S330 Wired instead.

Internal Wire Routing — Hidden & Protected

Doorbell wiring enters from the wall, passes through the hidden internal channel inside the swivel joint, routes through the front S330 Wired adapter bracket, and connects directly to the doorbell terminals. No exposed wiring, no weather risk — even at extreme 90° angles.

Internal wire routing diagram for Eufy S330 Wired

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)

Key Features & Benefits

  • Custom-Fit Bracket for S330 Wired: Pocket-shaped to the dual-cam body — no rocking on lapped siding.
  • Wide Adjustable Angle (15-90°): Substantial dual-axis swivel for perpendicular and side-wall geometries.
  • Locking Set Screws: Holds permanent aim through high winds; no creep on the fixed-bias bottom lens.
  • Wire Pass-Through: Hidden internal channel for the S330's hardwired power leads — clean exit at the doorbell.
  • HDR-Friendly: A locked permanent angle means the 2K HDR sensor isn't constantly retraining on a tilted frame.
  • Outdoor PETG: UV-stable, 4+ year real-world durability outdoors.
  • Siding Compatible: Flat surfaces and lapped siding up to 1.8 inches wide.
  • Complete Kit: 15-90° base, custom S330 adapter, set screws, all wall and bracket hardware.
  • Universal Eufy Base: Swap in a $10 adapter bracket later if you upgrade to E340 or any other Eufy doorbell.

Customization & Add-On Options

Installing Your 15-90° Mount on the Eufy S330 Wired

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket/set/doorbell screws provided), wall anchors if needed, level, multimeter.
    16-24V AC, 30VA recommended for stable HDR Dual Cam streaming.
  2. Plan the Aim Angle BEFORE Drilling: Stand where a visitor would stand and visualize the angle from the doorbell to that spot.
  3. Mount the Base: Route doorbell wires through the base hole. Position vertical and attach using #6 screws (PH2 driver).
  4. Attach the Swivel Bracket: Route wires through the swivel joint. Align onto the base and attach using four center screws (#4 / PH1 driver).
  5. Set Initial Angle: Adjust the swivel within 15-90° toward the visitor approach. Lightly tighten one or two set screws.
  6. Wire the S330 Wired: Connect the leads to the doorbell screw terminals (polarity doesn't matter for AC).
  7. Attach the Doorbell: Align with the pre-drilled holes on the custom S330 Wired bracket. Secure using the screws PROVIDED WITH THIS MOUNT (#4 / PH1 driver). DO NOT USE the Eufy stock screws.
  8. Aim Using Live View & Finalize Set Screws: Open the eufy Security app → Live View. Adjust through the 15-90° range until the porch path is centered, then fully tighten the set screws.
  9. Tune Motion Zones: In the eufy Security app, redraw motion zones to match the new angle.

FAQ — Eufy S330 Wired 15-90° Mount

Will this 15-90° swivel mount fit the Eufy Video Doorbell S330 Wired?
Yes. This bracket is custom-shaped for the Eufy Video Doorbell S330 Wired (2022), Amazon ASIN B09Q2NGQL8. The doorbell sits flush in a model-specific pocket. It will not fit other Eufy models like the E340, C30, C31, S220, or any non-Eufy brand.
What's the difference between the 15-90° mount and the 0-35° mount?
The 15-90° mount uses a bent-neck dual-axis pivot for substantial side-wall corrections. The 0-35° mount is for fine-tuning aim on flat-wall installs. If you need more than 15° of correction, choose the 15-90° version.
Can I install on vinyl siding, Hardie, or stucco?
Yes. For vinyl, pair with our Vinyl Siding Adapter. For Hardie, use the Hardie Siding Mount. For stucco, drill pilot holes and use masonry anchors.
Is the mount weatherproof?
Yes. UV-stabilized PETG, freeze-tolerant. Real-world installs are still going strong after 4+ years.
Does this 15-90° mount work with HomeBase 2 or HomeBase 3?
Yes — the mount is purely mechanical. Whether you run HomeBase 2 (2K HDR) or HomeBase 3 (BionicMind AI), the S330 connects exactly as before.
Will I lose the package camera view at 90°?
No — you'll just rotate it. At 90° side-wall aim, the package lens points along the porch path instead of straight down. That's actually the correct geometry for side-mounted installs.
Can I keep my existing S330 hardwiring?
Yes. The mount has an internal wire channel that accepts the existing S330 leads. Route the wires through the swivel joint and adapter bracket, then connect to the doorbell terminals.

Replacement Guarantee

If your mount breaks, cracks, or fails for any reason within the first year of ownership — even if the cause is your own install error — we'll print and ship a free replacement at no cost to you. We stand behind every printed-to-order PETG mount that ships from our USA shop.

Email shop@doorbellmount.com with a photo of the broken part and your order number. We typically print and ship within 48 hours.

Need to Buy the Doorbell or Accessories?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help?

Standard Color: Ships in Black. Other colors via Color Change Request.

Get the 15-90° Adjustable Swivel Mount for the Eufy S330 Wired today — finally get the right view from your side-mounted doorbell.
