15-90° Adjustable Swivel Mount for Eufy Video Doorbell C30 (2024) | 2K Battery 165° Wide | Ball-Joint Pivot Mount

$50.00
$40.00
15-90° Side-Wall Adjustable Mount for the Eufy Video Doorbell C30 Custom-Fit for the Eufy Video Doorbell C30 (Battery, 165° Wide) This bracket is shaped specifically for the Eufy Video Doorbell C30 (2024) — Amazon ASIN B0DDTSK2WP. The C30 is the...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

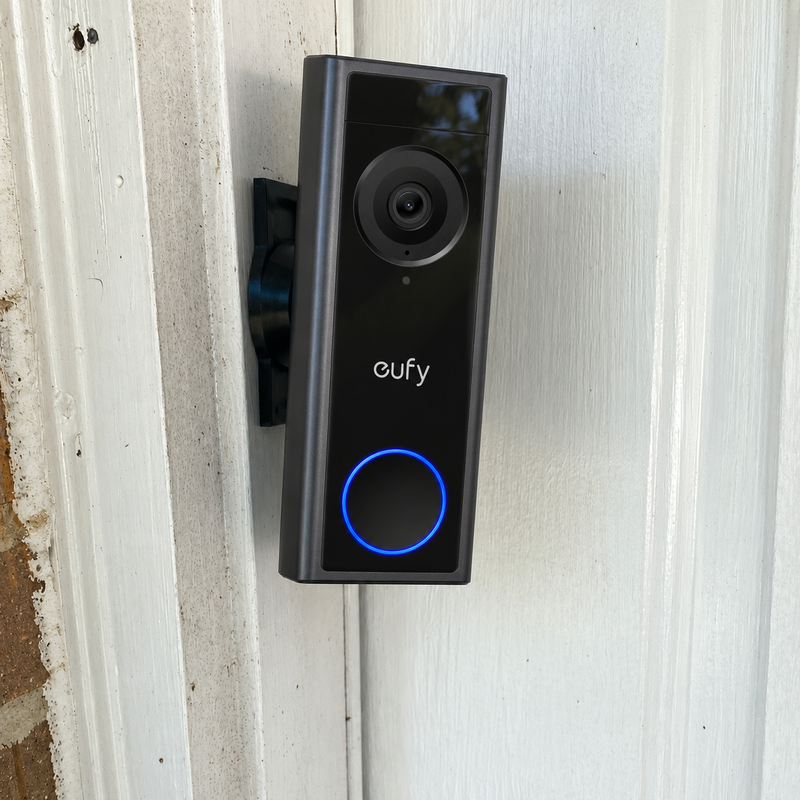

15-90° Side-Wall Adjustable Mount for the Eufy Video Doorbell C30

Custom-Fit for the Eufy Video Doorbell C30 (Battery, 165° Wide)

  • This bracket is shaped specifically for the Eufy Video Doorbell C30 (2024) — Amazon ASIN B0DDTSK2WP. The C30 is the no-wiring Eufy with a 165-degree ultra-wide lens — near-fisheye coverage. On a side wall, the wide field actually exaggerates the off-axis view, so a precise locked angle matters more than usual.
  • Does NOT fit: other Eufy models (E340, S330W, C31, S220 each have their own listing) or any non-Eufy brand.
  • Not sure which Eufy you have? Send a photo of the back of your doorbell to shop@doorbellmount.com.
Don't have the doorbell yet? Get the Eufy Video Doorbell C30 on Amazon →

Wide-Lens Aim Correction for the C30 Battery

The C30's 165-degree ultra-wide lens is generous, but generosity has a downside: an off-axis side-wall install ends up with most of the field hitting siding instead of porch. This 15-90° bent-neck pivot swings the entire camera through a wide arc so the wide lens captures the actual approach path. Set screws lock the angle for the long haul. PETG, USA-made, freeze-tested.

C30's 165-degree ultra-wide FOV is great for porch coverage but unforgiving when off-axis — lock the angle once and let the wide lens do the rest.

Wide Dual-Axis Control (15-90°) — Tuned for the C30

Bent-neck swivel joint, precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree mount adjustability diagram for Eufy C30 165-degree battery
15° to 90° pivot — dual-axis swivel for perpendicular installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Eufy C30 for flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit Bracket for C30: Slim pocket-shaped bracket for the C30 housing.
  • Wide Adjustable Angle (15-90°): Dual-axis bent-neck swivel for side-wall and perpendicular geometry.
  • Locked-Angle Hold: Set screws keep the wide-lens aim locked through wind, weather, and battery swaps.
  • Battery-Friendly: No wire pass-through needed (C30 is battery-only); cleaner internal cavity.
  • Outdoor PETG: UV-stable filament, freeze-tolerant.
  • Siding Compatible: Flat surfaces and lapped siding up to 1.8 inches wide.
  • Universal Eufy Base: Future-proof — the adjustable base works with any Eufy adapter bracket.
  • Complete Kit: 15-90° swivel base, C30 adapter bracket, set screws, mounting hardware.
  • Made in USA: Printed-to-order in our shop, 24-48 hour turnaround.

Customization & Add-On Options

Installing on the Eufy C30

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket/set/doorbell screws provided), wall anchors if needed, level.
    Battery-only doorbell — no transformer needed. Charge the C30 directly via USB-C (it dismounts from the bracket for charging).
  2. Plan the Aim Angle BEFORE Drilling: Stand where a visitor would stand. Visualize the angle from doorbell location to that spot.
  3. Mount the Base: Position vertical and attach using #6 screws (PH2 driver) with anchors as needed.
  4. Attach the Swivel Bracket: Align onto the base and attach using four #4 / PH1 center screws.
  5. Set Initial Angle: Adjust within 15-90° toward the visitor approach. Lightly tighten one or two set screws.
  6. Charge the C30: Charge fully via USB-C before mounting. C30 has ~6 month battery life in typical use.
  7. Attach the Doorbell: Use the screws PROVIDED WITH THIS MOUNT (#4 / PH1 driver). DO NOT USE Eufy's stock screws or back plate.
  8. Aim Using Live View: Open eufy Security app → Live View. Adjust through 15-90° until porch path is centered. With the 165° wide lens, even slightly off-center aim usually still covers the porch — but lock it precisely once you have it.
  9. Tune Motion Zones: Redraw motion zones to match the new angle. The 165° wide lens picks up a lot of peripheral motion — tighten the porch path zone for fewer false alerts.

FAQ — Eufy C30 15-90° Mount

Will this 15-90° mount fit the Eufy Video Doorbell C30?
Yes. Custom-shaped for the Eufy C30 (2024), Amazon ASIN B0DDTSK2WP. Will not fit other Eufy models like E340, S330W, C31, or S220.
Difference between this 15-90° mount and the 0-35° mount?
The 15-90° mount is for substantial side-wall corrections (perpendicular installs). The 0-35° mount is for fine-tuning aim on flat walls.
Can I install on vinyl, Hardie, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, use the Hardie Siding Mount for cement board, or drill pilot holes with masonry anchors for stucco.
Is the mount weatherproof?
Yes. UV-stabilized PETG, freeze-tolerant. 4+ year real-world track record.
Will the 165° FOV cause distortion at extreme 90° angles?
No more than usual — the wide-lens distortion is a property of the C30 sensor itself. The 90° pivot just changes where the lens points; the barrel distortion at the edges stays the same. The wide FOV is forgiving enough that even slightly off-mark 90° aim still covers the porch.
Do I need to dismount the C30 to charge it?
Yes — the C30's USB-C port is on the back, so you do need to lift it out of the bracket to charge. Battery life is ~6 months in typical use, so this is a once or twice a year task.
Can I use the C30 in wired mode with this mount?
The C30 doesn't have wired terminals — it's battery-only by design. If you want a wired Eufy in the same form factor, look at the C31 instead.

Replacement Guarantee

If your mount breaks, cracks, or fails for any reason within the first year of ownership — even if the cause is your own install error — we'll print and ship a free replacement at no cost to you.

Email shop@doorbellmount.com with a photo and your order number. We typically print and ship within 48 hours.

Need to Buy the Doorbell or Accessories?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help?

Standard Color: Ships in Black. Other colors via Color Change Request.

Add yours today — 15-90° Adjustable Swivel Mount for the Eufy C30, finally get the right view from your side-mounted doorbell.
