15-90° Adjustable Swivel Mount | Wyze Battery Video Doorbell (2025) | Side Wall Install

$50.00
$40.00
15-90° Side-Wall Aim Mount for the Wyze Battery Video Doorbell (2025) — New 1536p HD+ Body Engineered for the brand-new Wyze Battery Video Doorbell — released October 2025 at $65.98 with 1536 × 1536 HD+ resolution, a 1:1 head-to-toe field...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Side-Wall Aim Mount for the Wyze Battery Video Doorbell (2025) — New 1536p HD+ Body

Engineered for the brand-new Wyze Battery Video Doorbell — released October 2025 at $65.98 with 1536 × 1536 HD+ resolution, a 1:1 head-to-toe field of view, IP65 weather rating, and a 6-month battery life on a single charge. This bent-neck 15-90° pivot mount tilts the slim 5.71" body perpendicular to the wall, so the new HD+ sensor delivers its full pixel density on the porch path instead of on siding.

The set-screw lock is built for the doorbell's calendar: 6 months between charges, two install touches per year. The PETG is UV-stable and freeze-tolerant, so the angle holds across summer and winter without creep. Made-to-order in the USA, ships matte black.

Custom-Fit for the Wyze Battery Video Doorbell (2025)

  • This bracket is shaped specifically for the new Wyze Battery Video Doorbell (October 2025 release) — Amazon ASIN B09JF9RJG3 (chime included). 1536p HD+ (1536 × 1536 square), 150° H × 150° V FOV, color night vision, AI person/vehicle/package detection, IP65 weather rating, up to 6-month battery life. Body dimensions: 5.71 × 1.85 × 1.14 inches — slimmer than the 1440p Pro.
  • Does NOT fit: the Wyze Video Doorbell Pro (older 1440p — chunkier body), Wyze v1 or v2 (both wired-only, different shapes), the Duo Cam (taller two-camera body), or any non-Wyze brand. Each Wyze model has its own dedicated mount.
  • Confused which Wyze you have? The new Battery Video Doorbell shipped late 2025 with a slim 5.71" tall body; the spec sheet says 1536p (not 1440p). If yours is the older Pro from 2022, it's 1440p, slightly thicker, and uses our Pro mount instead.
Don't have the doorbell yet? Get the Wyze Battery Video Doorbell (2025) on Amazon →

Hold the 1536p HD+ Aim Through a Full 6-Month Battery Cycle

The new 1536p HD+ sensor is the sharpest battery doorbell Wyze has shipped — 1536 × 1536 at 20fps daytime, 1:1 head-to-toe square, AI detection running on every frame. None of that pixel density is useful if the camera mounts square to a side wall; half the frame ends up on siding, the AI gets confused by trim, and Smart Notifications fire on shadows.

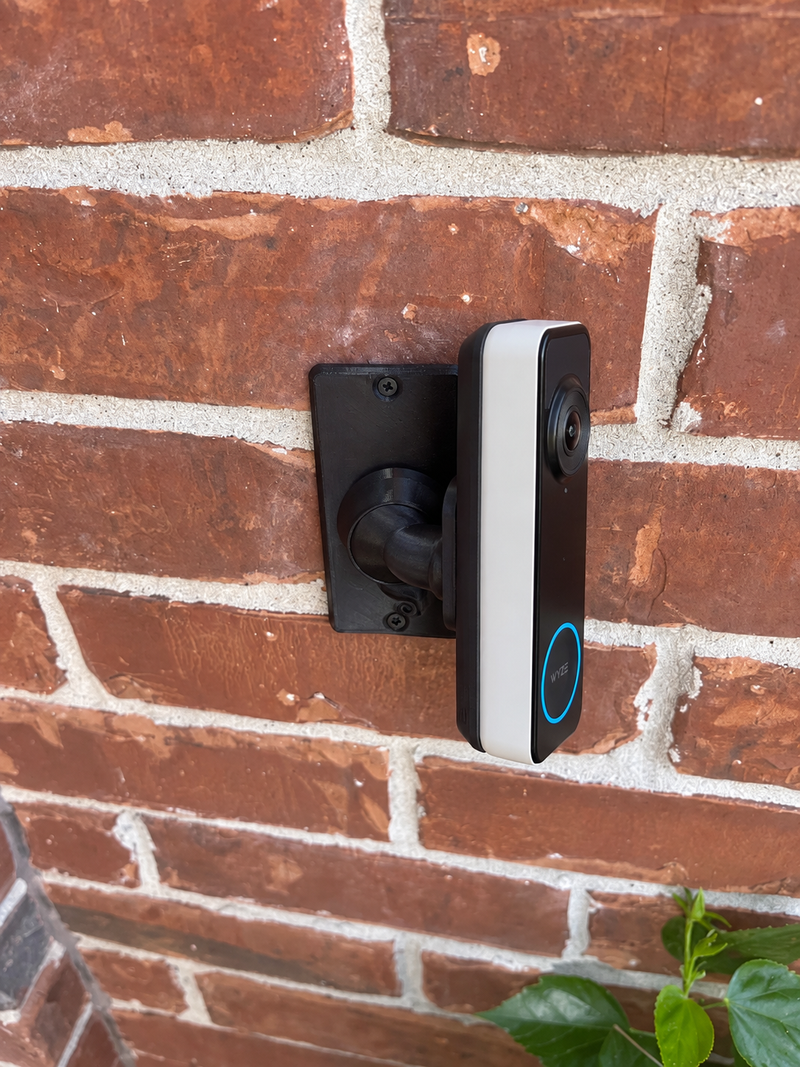

The 15-90° bent-neck pivot tilts the slim body perpendicular to the wall, redirecting the head-to-toe lens at visitors. The set-screw lock holds for years — perfect for a doorbell that you only revisit at recharge time, twice a year. With the doorbell rated to 6-month battery life, two install touches per year is all you'll do.

Wide Dual-Axis Control (15-90°) — Tuned for the Wyze Battery Video Doorbell

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Wyze Battery Video Doorbell (2025)
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Wyze Battery Video Doorbell for fine-tuning on flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom-Fit Pocket for the New 5.71" Body: Slim, model-specific cradle — no rocking, no rattle, lens unobstructed.
  • Bent-Neck 15-90° Pivot: Tilts the slim body perpendicular to the wall — matches side-wall geometry.
  • Two-Axis Set-Screw Lock: Vertical tilt + horizontal pan; both axes lock independently. Holds for years, not months.
  • USB-C Charging Port Stays Reachable: Recharge in place every 6 months without dismounting.
  • IP65-Compatible PETG: Matches the doorbell's IP65 rating — UV-stable, freeze-tolerant.
  • Battery-First Friendly: No wiring required — full install in 15-20 minutes.
  • Optional Trickle-Charge Wire Pass: If you have 16-24V AC at the chime, route the wires through the joint for continuous trickle-charge.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8" wide.
  • Universal Base: Future-proof — switch doorbells later for a ~$10 adapter swap.
  • Complete Kit: Bent-neck pivot base, custom Wyze Battery adapter, set screws, mounting screws + anchors.
  • Made in USA: Printed-to-order with 24-48 hour turnaround.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Wyze Battery Video Doorbell

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket / set screws / doorbell screws — provided preinstalled to the bracket), wall anchors, level. Multimeter optional (only needed if wiring to chime power).
    Battery-only is the easy path. If wiring to existing chime power for trickle-charge: turn breaker OFF first. The doorbell accepts 16-24V AC at the chime location.
  2. Charge the Battery First: The new Battery Video Doorbell ships partially charged — top off via USB-C (about 4-5 hours from empty) so you can verify Live View aim during install.
  3. Plan the Aim Angle: Stand where visitors approach and visualize the angle from the doorbell location. 15-90° gives a wide range — commit to roughly the right angle before drilling pilot holes.
  4. Mount the Base: Pull wires through the base hole (only if wiring to chime), position vertically on your siding/trim, attach using #6 screws (PH2 driver) with anchors as needed.
    Drill pilot holes if mounting into hard trim wood. Don't overtighten base screws.
  5. Attach the Bent-Neck Swivel Bracket: Route wires through the swivel joint (skip if battery-only). Align onto the base and attach using four center #4 / PH1 screws.
  6. Set Initial Angle: Adjust the bent-neck within 15-90° toward visitor approach. Lightly tighten one or two set screws — final tightening comes after Live View confirmation.
  7. Wire (Optional) and Snap the Doorbell Into the Bracket: If wiring, connect the two transformer leads to the doorbell's screw terminals — polarity doesn't matter for AC. If battery-only, skip wiring. Then secure the doorbell using the screws PROVIDED WITH THIS MOUNT (these come preinstalled in the bracket so you can see exactly where each screw goes). Do NOT use Wyze's stock wedge or 3M adhesive method.
    Use the correct PH1 driver for provided screws. Tighten snugly, do not overtighten.
  8. Aim Using Live View & Finalize Set Screws: Open the Wyze app → Live View → tilt and pan the bent-neck through the 15-90° range until the 1:1 frame covers porch top-to-bottom and faces are centered. Fully tighten all set screws.
    Hand-tight on set screws. Over-tightening can crack the joint.
  9. Pair the Chime & Configure Detection Zones: Plug the included Wyze Chime into a power outlet indoors, pair via the app. Configure person/vehicle/package detection zones for the new angle — side-wall installs benefit from a tighter "porch path" zone since the wider 90° angle catches more peripheral motion.

Battery rhythm tip: charge the doorbell at the start of spring and again at the start of fall — that gives you uninterrupted coverage all year on a 6-month cycle. Or wire to existing chime power for continuous trickle-charge if available; the wires route cleanly through the swivel joint.

FAQ — Wyze Battery Video Doorbell 15-90° Mount

Is this mount compatible with the new 2025 Wyze Battery Video Doorbell?
Yes — custom-shaped for the Wyze Battery Video Doorbell (B09JF9RJG3, October 2025 release). Will not fit the older 1440p Pro, the v1/v2 wired models, or the Duo Cam.
How is the 15-90° mount different from the 0-35°?
The 15-90° mount is for substantial side-wall correction — perpendicular installs where the doorbell sits on a wall offset from the door. The 0-35° mount is for small flat-wall fine-tuning.
Can I install this on vinyl siding, Hardie, brick, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, the Hardie Siding Mount for cement-board, or use masonry anchors for brick / stucco.
Will the swivel hold its angle through a full 6-month battery cycle?
Yes — the dual set-screw lock is rated for years, not months. Real-world installs hold their angle 4+ years without readjustment. PETG is UV-stable and freeze-tolerant, so no creep through summer or winter.
Does the bracket leave the USB-C charging port accessible?
Yes — designed so the bottom-edge USB-C is reachable for in-place charging every 6 months without dismounting the doorbell.
Can I trickle-charge from existing chime wiring through this mount?
Yes. Route 16-24V AC chime wires through the wire pass-through in the swivel joint. The doorbell's battery becomes a UPS for power outages and never needs manual recharging.
Is the mount weatherproof to match the doorbell's IP65 rating?
Yes. UV-stable PETG, freeze-tolerant, sealed against rain — matches the IP65 rating of the doorbell.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Need to Buy Your Wyze Doorbell?

Quick affiliate links to the full Wyze video doorbell lineup:

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you. Pricing is controlled by Amazon and may change.

Questions? Need Help?

Standard Color: Ships in Black. For other colors, use the Color Change Request.

Angle Note: The term “15-90°” represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance. Each mount is printed-to-order in our USA shop.

Order your 15-90° side-wall mount for the new Wyze Battery Video Doorbell — lock the 1536p HD+ aim through every battery cycle.
