Ring Wired Doorbell (Ring Wired 2021)

35° Adjustable Swivel Doorbell Mount |Ring Video Doorbell Wired| Frontal Angle Adjustments

35° Adjustable Swivel Doorbell Mount |Ring Video Doorbell Wired| Frontal Angle Adjustments

Regular price $40.00 USD
Regular price $50.00 USD Sale price $40.00 USD
Sale Sold out
Shipping calculated at checkout.





Adjustable Swivel Mount (0-35°) for Ring Video Doorbell Wired (2021 Model)

Is This Your Doorbell? Compatibility Check!

This mount fits ONLY the Ring Video Doorbell Wired (often called the "2021" model to distinguish it). Please confirm your doorbell matches the pictures below.

Ring Video Doorbell Wired - Front View Ring Video Doorbell Wired - Back View
(As an Amazon Associate, I earn from qualifying purchases.)

CRITICAL: This mount WILL NOT FIT any other Ring model, including the Pro, Pro 2, Wired Plus, or Battery models.
Ring's naming is confusing! When in doubt, send us a picture!

Need help identifying your model? Check our Ring Model Guide or contact us: Email shop@doorbellmount.com / Text 1-833-326-6868.

Fine-Tune Your View with the 0-35° Swivel Mount

Need a subtle angle adjustment for your Ring Video Doorbell Wired (2021)? This low-profile swivel mount provides precise aiming control with a 0° to 35° adjustment range. Its versatile dual-axis joint allows fine-tuning both horizontally (left/right) and vertically (up/down).

Ideal for situations where your doorbell is mounted near the door on the same wall and needs just a slight turn inward, or needs a minor up/down tilt to capture the ideal view. This low-profile design sits closer to the wall for a cleaner look.

We specialize in custom solutions! If this mount doesn't solve your problem, reach out to us.

View All Mounts for Ring Video Doorbell Wired (2021)

Precise Dual-Axis Control (0-35°)

Gain exact control over your camera's perspective. The smooth swivel joint enables fine adjustments across a 0° to 35° arc relative to the mounting surface, ensuring you capture precisely what matters.

Adaptable Base Positioning: Mount the base plate vertically or horizontally to best suit your surface, like siding or trim. The doorbell itself always remains upright.

Mount Dimensions

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Total Extension (@ 0° Angle): Approx. 1.5 inches from wall
  • (Note: Base dimensions are consistent across 35°/90° swivel mounts; extension varies for 90° models based on angle)

Features & Highlights:

  • Designed For: Ring Video Doorbell Wired (2021 Model ONLY) - Check Compatibility!
  • Fine-Tuning Angle (0-35°): Dual-axis swivel perfect for precise horizontal & vertical aiming.
  • Low-Profile Design: Minimal extension from the wall compared to 90° version.
  • Secure Angle Hold: Set screws included (likely #4 / PH1) to lock your desired angle.

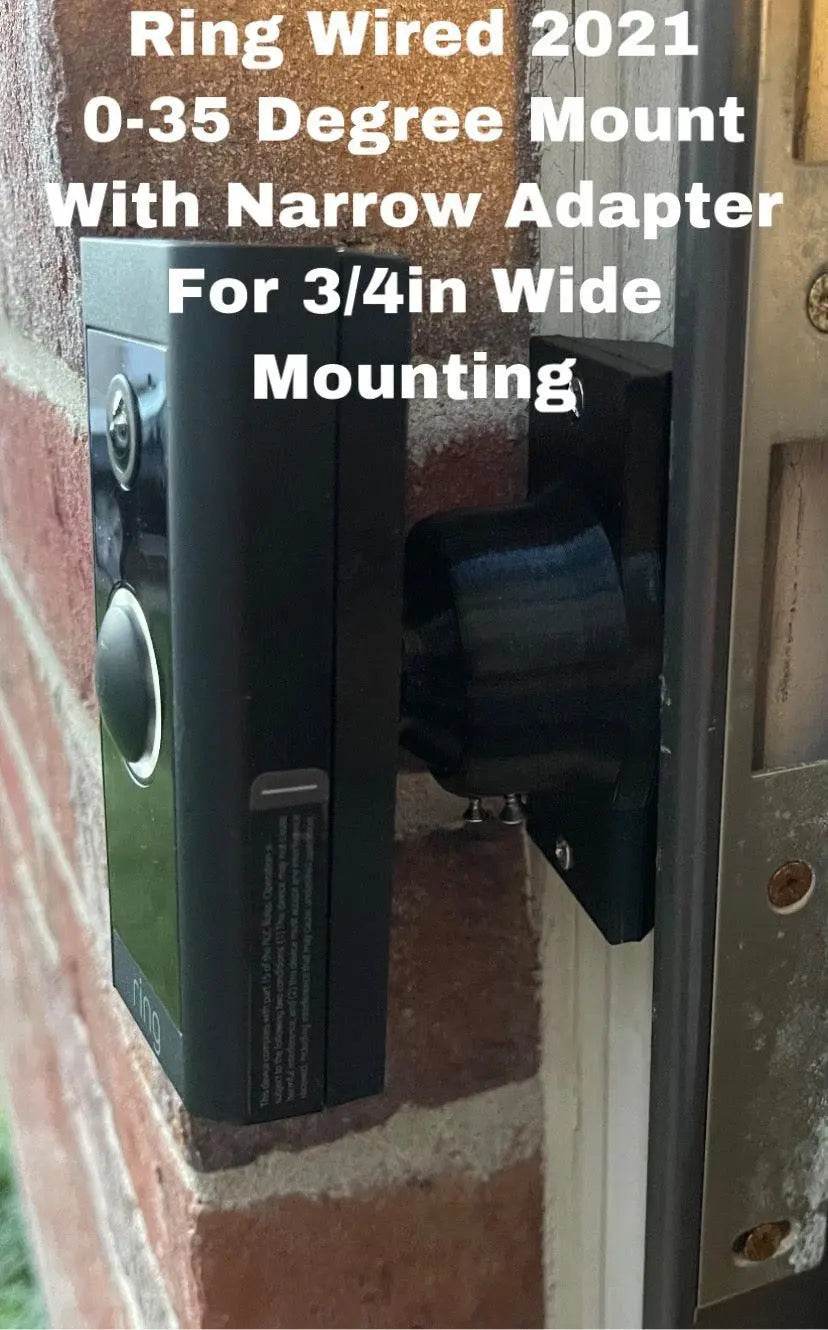

  • Versatile Mounting: Base installs vertically or horizontally; fits surfaces/siding up to 1.8" wide. Adapters available for narrower spots (down to 1/2").
  • Tidy Wiring: Passthrough hole for doorbell wires.
  • Built to Last: Durable, weather-resistant PETG plastic.
  • Complete Kit: Includes screws for base, bracket, doorbell, and angle locking.
  • Custom Options: Contact us for specialized solutions!
  • Future-Proof System: Many of our mounts use a universal base! If you upgrade your doorbell model later, you often only need a new, affordable adapter bracket (the part your doorbell attaches to), not a whole new mount system. Find replacement brackets here (approx. $10).

Installing Your 0-35° Swivel Mount

  1. Prepare Tools & Area: Gather necessary tools:
    • Drill (with appropriate bits).
    • Screwdrivers/Bits: PH2 Philips (#6 base screws) AND PH1 Philips (#4 bracket/set/doorbell body screws provided by us). Using the right size is crucial!
    • Wall anchors (if needed). Level (optional).
    Turn OFF power to your doorbell wiring at the circuit breaker!
  2. Mount Base: Route wires through base. Position (screws vertical or horizontal) & attach using #6 screws (PH2 driver) / anchors.
    Drill Carefully: Use low speed/clutch. Do not overtighten screws to avoid damage.
  3. Attach Swivel Bracket: Route wires through bracket. Align onto base & attach using four center screws (likely #4 / PH1 driver).
    Stripping Risk: Use correct PH1 bit. Tighten screws snugly by hand first.
  4. Set Initial Angle: Adjust swivel bracket (up/down & left/right) within 0-35°. Lightly tighten one/two set screws (likely underside, #4 / PH1 driver).
  5. Wire Doorbell: Connect wires per Ring's instructions. Tuck excess wire into mount.
  6. Attach Doorbell to Bracket:
    • Align your Ring Video Doorbell Wired with the holes on the swivel mount bracket.
    • Secure the doorbell using the screws PROVIDED WITH THIS MOUNT (likely #4 / PH1 driver).
    • DO NOT USE the screws that came with your doorbell for this step (they might be incorrect).
    Stripping Warning: Use the correct PH1 driver for provided screws. Tighten screws snugly, avoid overtightening.
  7. Finalize & Secure Angle: Make final adjustments. Fully tighten all set screws using the correct driver (likely PH1) and gentle pressure.
    Do not overtighten set screws! Hand-tighten is sufficient.
    Turn power back on and test.

Always follow safety rules & Ring's guidelines. Use appropriate anchors. Using the correct Philips bit size (PH1/#4, PH2/#6) is key to prevent stripping.



Get the Most from Your Ring Video Doorbell Wired

Optimize Your Camera View

This adjustable mount lets you eliminate frustrating blind spots. The 0-35° range allows subtle but critical adjustments to ensure your compact Ring Video Doorbell Wired captures exactly the area you need monitored, enhancing your security.

Clean Look, Reliable Performance

The low-profile design offers a less noticeable installation than bulkier mounts. Made from sturdy PETG, this mount provides a reliable, weather-resistant platform for your doorbell, ensuring consistent performance.

Installation Concept Videos

General installation concept shown below:

Watch Installation Video Guide

Unsure About Compatibility? Questions?

Confirm Your Model! If you're not certain you have the Ring Video Doorbell Wired (2021), please send us a picture before ordering to avoid hassle.

Need adapters for narrow trim/siding? Contact us for options!

Default Color is Black. For White, Grey, or Brown, please add the separate Color Change Request item to your order.

Angle Range Note: Provides an adjustable range from approx. 0° (flat) up to 35° relative to the mounting surface. Final angle achieved depends on installation specifics.

3D Printed Quality: While 3D printing provides really good production quality parts, there are often minor imperfections that may be found on the prints. These do not impair the function and rarely affect the aesthetics. But if your not happy with the quality, please text, email, or message me before leaving a review.

Order your 0-35° Swivel Mount for the Ring Video Doorbell Wired today for precise, customized aiming!
