90° Adjustable Swivel Mount | 3/4in Wide Base Adapter Included | Slim Tight Spot Fitting

$50.00
Slim Trim Doorbell Mount (3/4" Base) with 15-90° Swivel | Select Model Narrow Base Fit & Model Selection Required! This articulating mount includes our Ultra-Slim 3/4" Base Plate, designed for installation on narrow door frames or trim (minimum 3/4 inch...
Availability: Out Of Stock
Product Type: Adjustable Mount 15-90°

Slim Trim Doorbell Mount (3/4" Base) with 15-90° Swivel | Select Model

Narrow Base Fit & Model Selection Required!

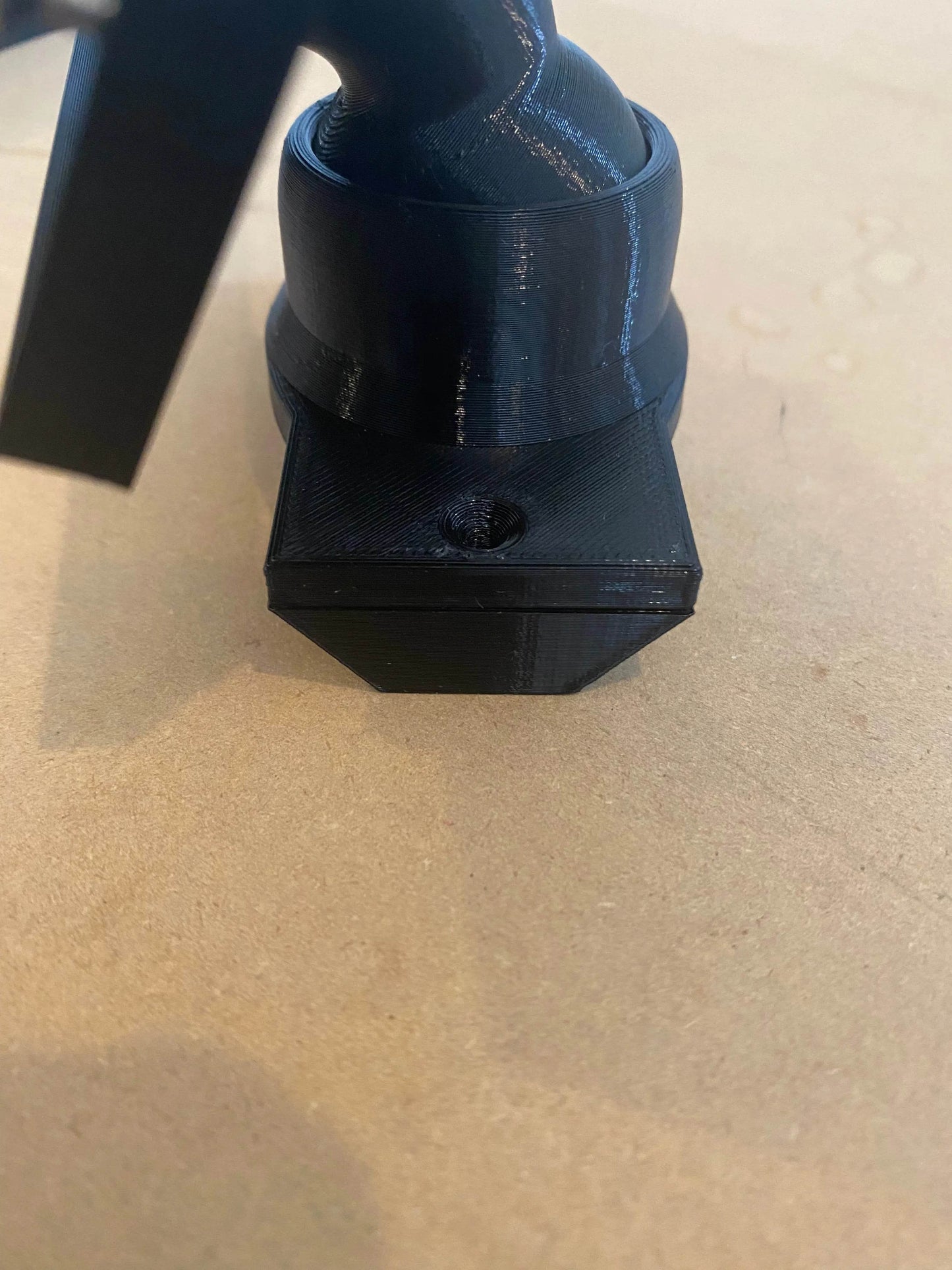

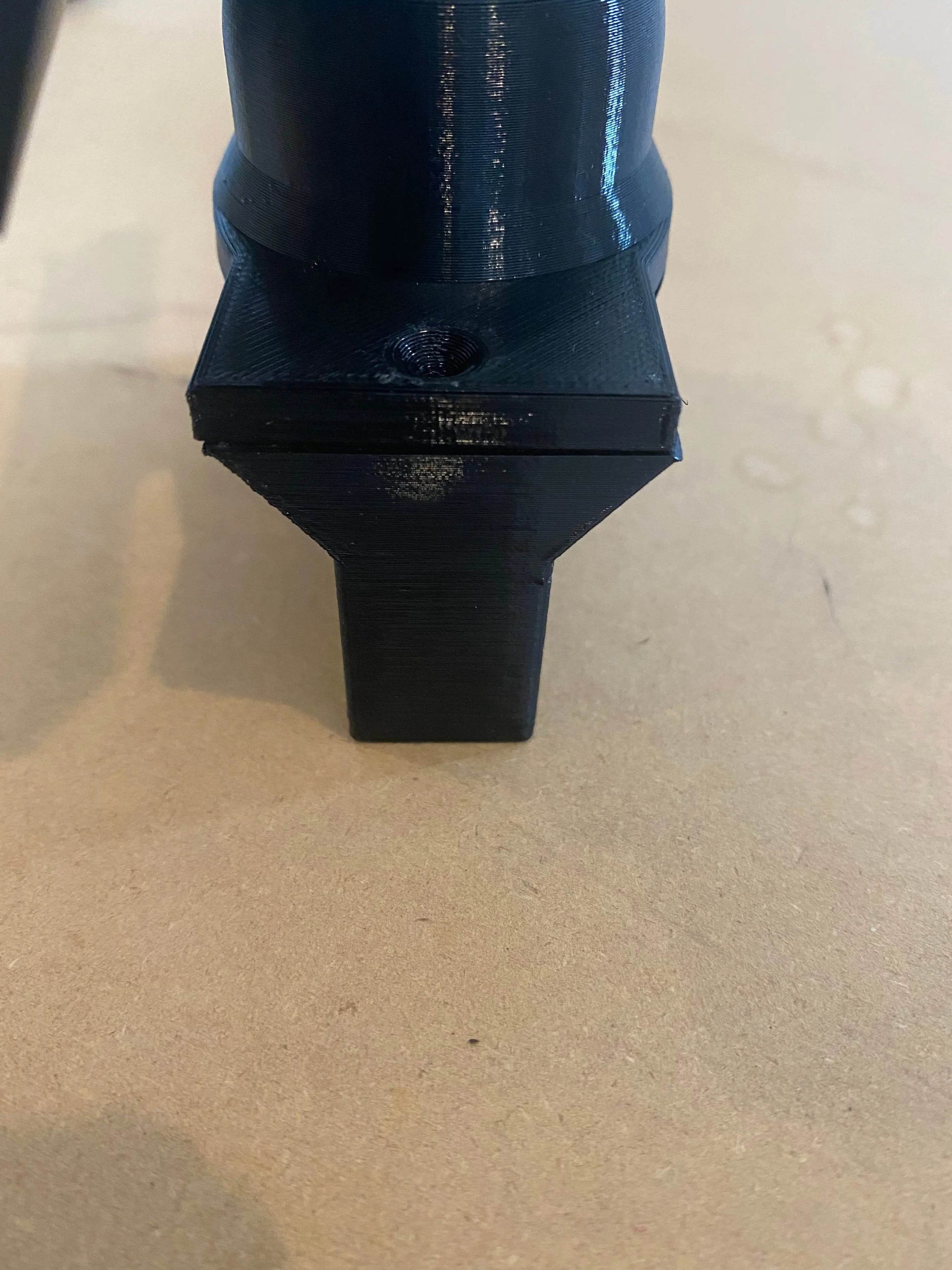

This articulating mount includes our Ultra-Slim 3/4" Base Plate, designed for installation on narrow door frames or trim (minimum 3/4 inch surface width).

  • CRITICAL: You MUST Select Your Specific Doorbell Model from the options list to receive the correct custom-fitted adapter bracket.
  • Supports most major video doorbell brands (Ring, Nest, Eufy, Wyze, etc.).
  • Uncertain About Your Doorbell? Contact us with a photo before ordering.
  • Need a Different Model? We offer custom designs.

For Ring model identification, see our Ring Model Guide.

Extreme Angle Correction for Narrow Spaces

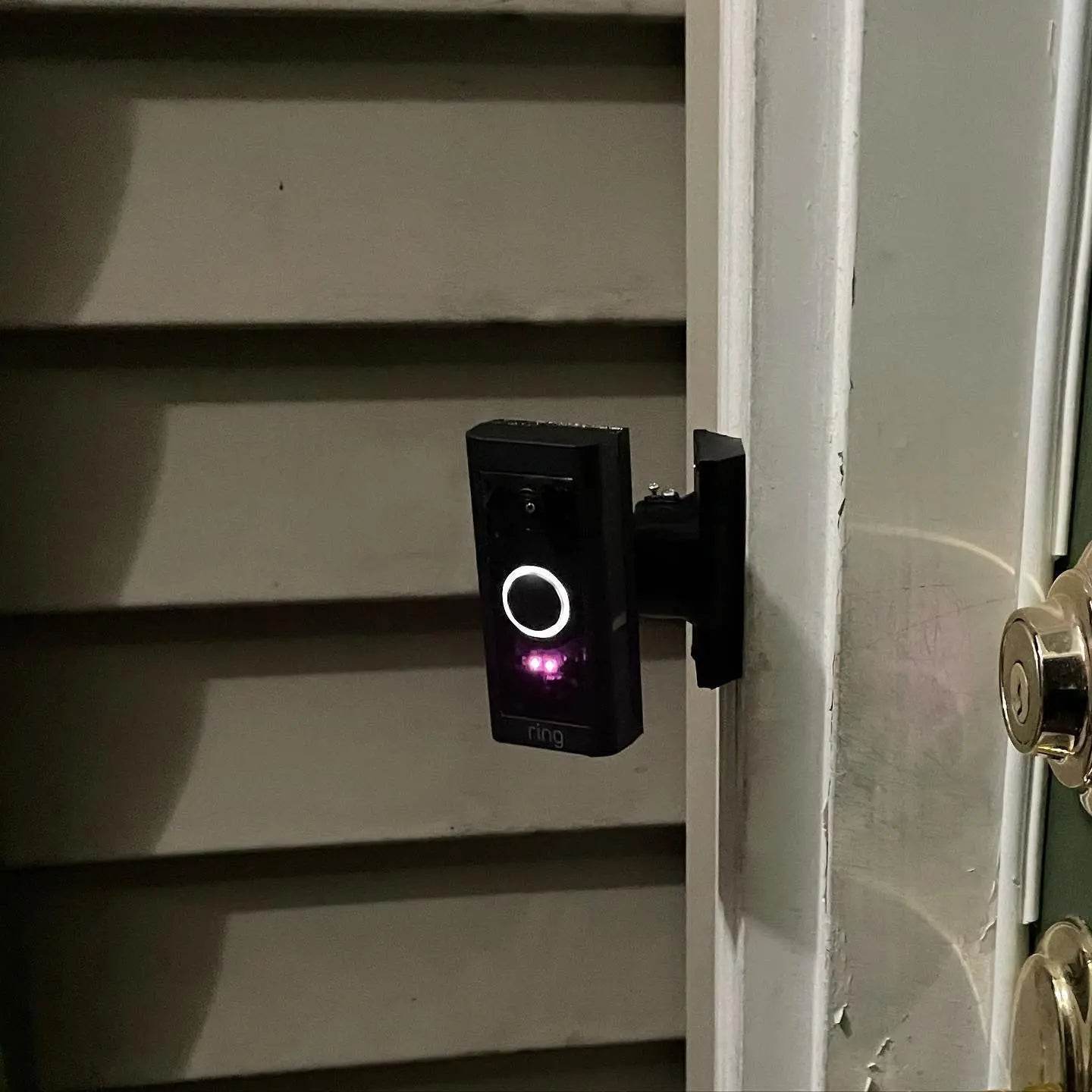

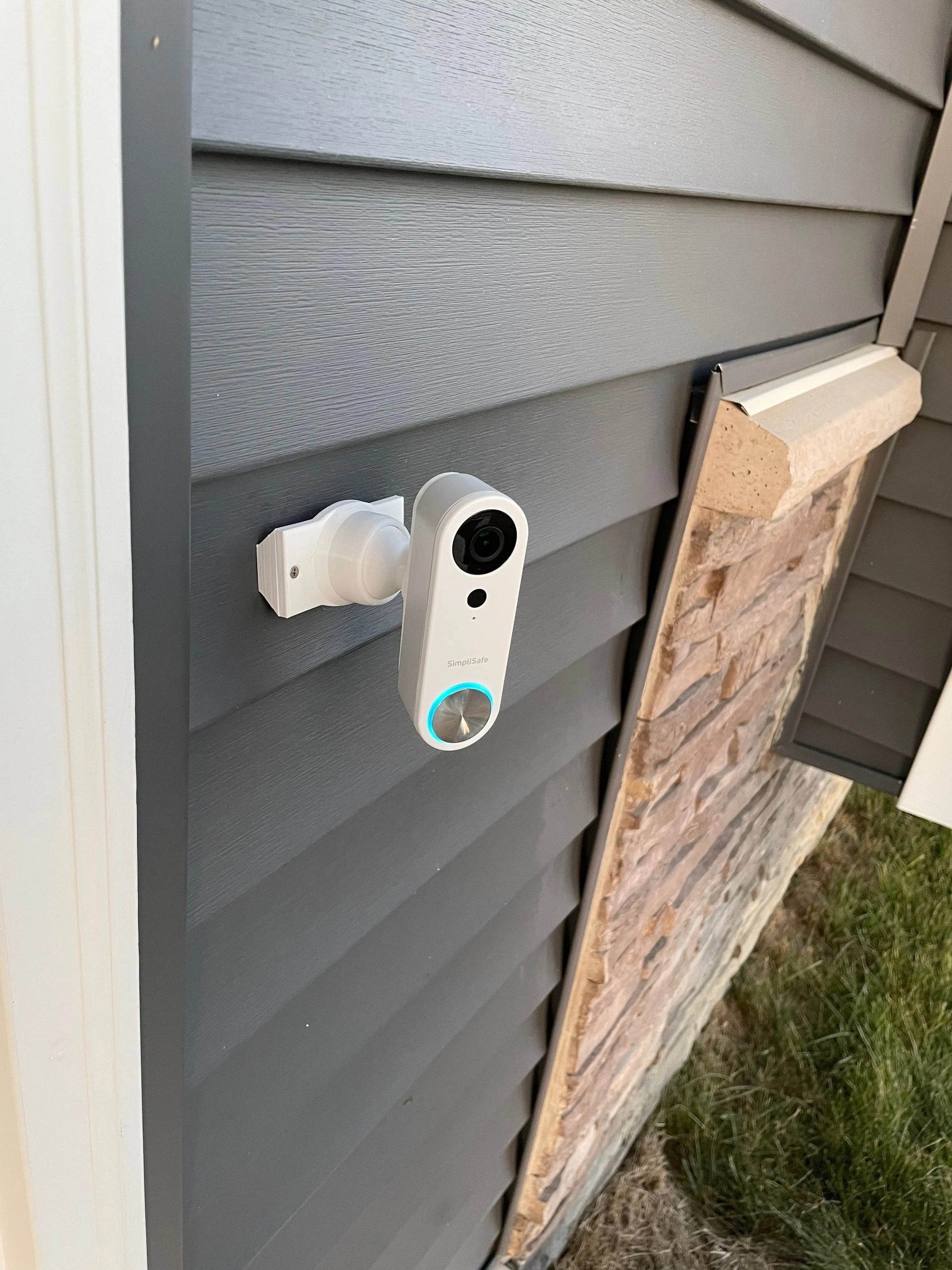

This 15-90° Adjustable Swivel Mount provides unprecedented aiming control, allowing you to turn your doorbell up to 90° relative to the wall. Combined with its ultra-slim 3/4-inch wide base, it solves narrow door frames and post installations while delivering perpendicular side views.

Full Range Motion: 15-90° Pan & Tilt

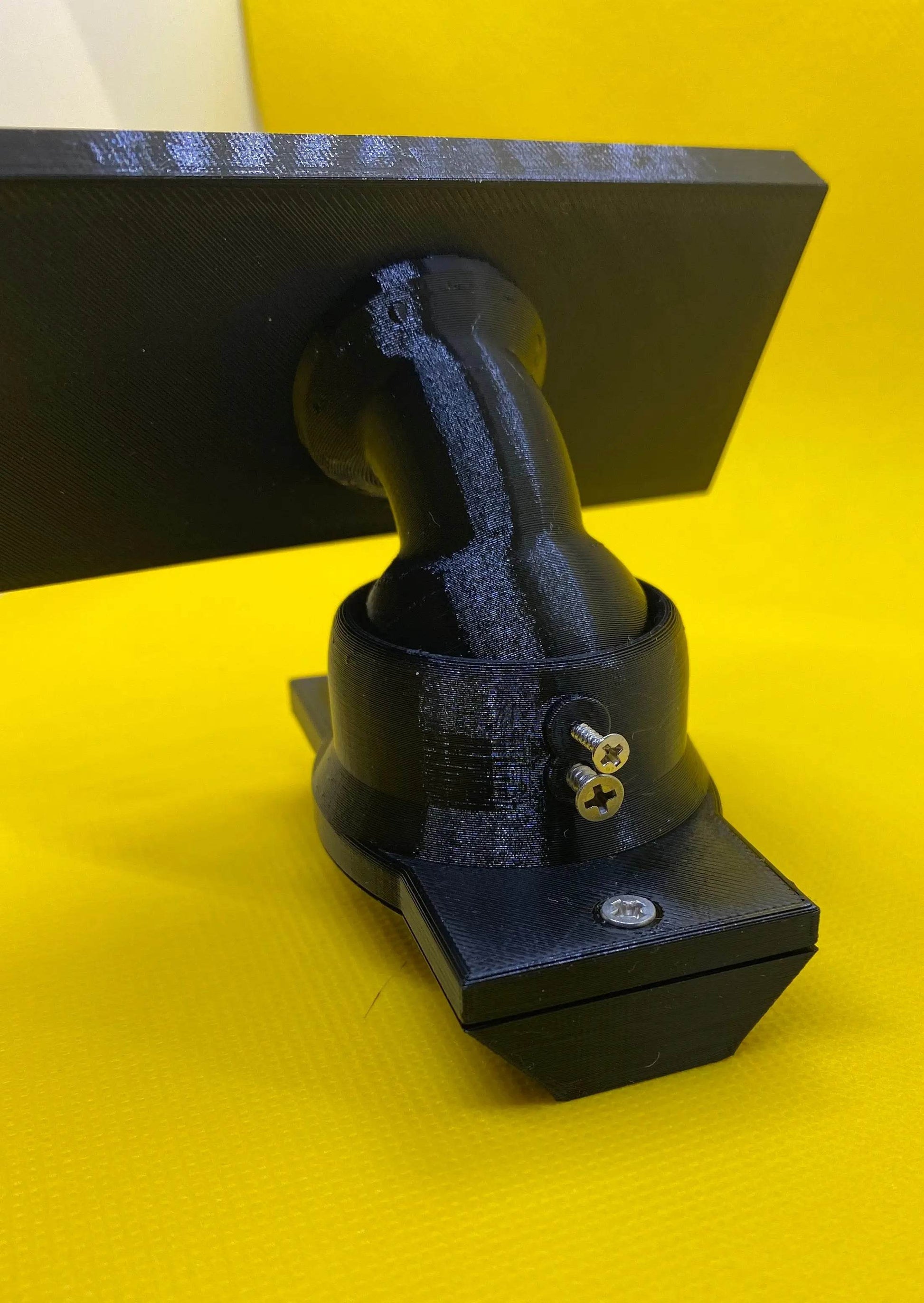

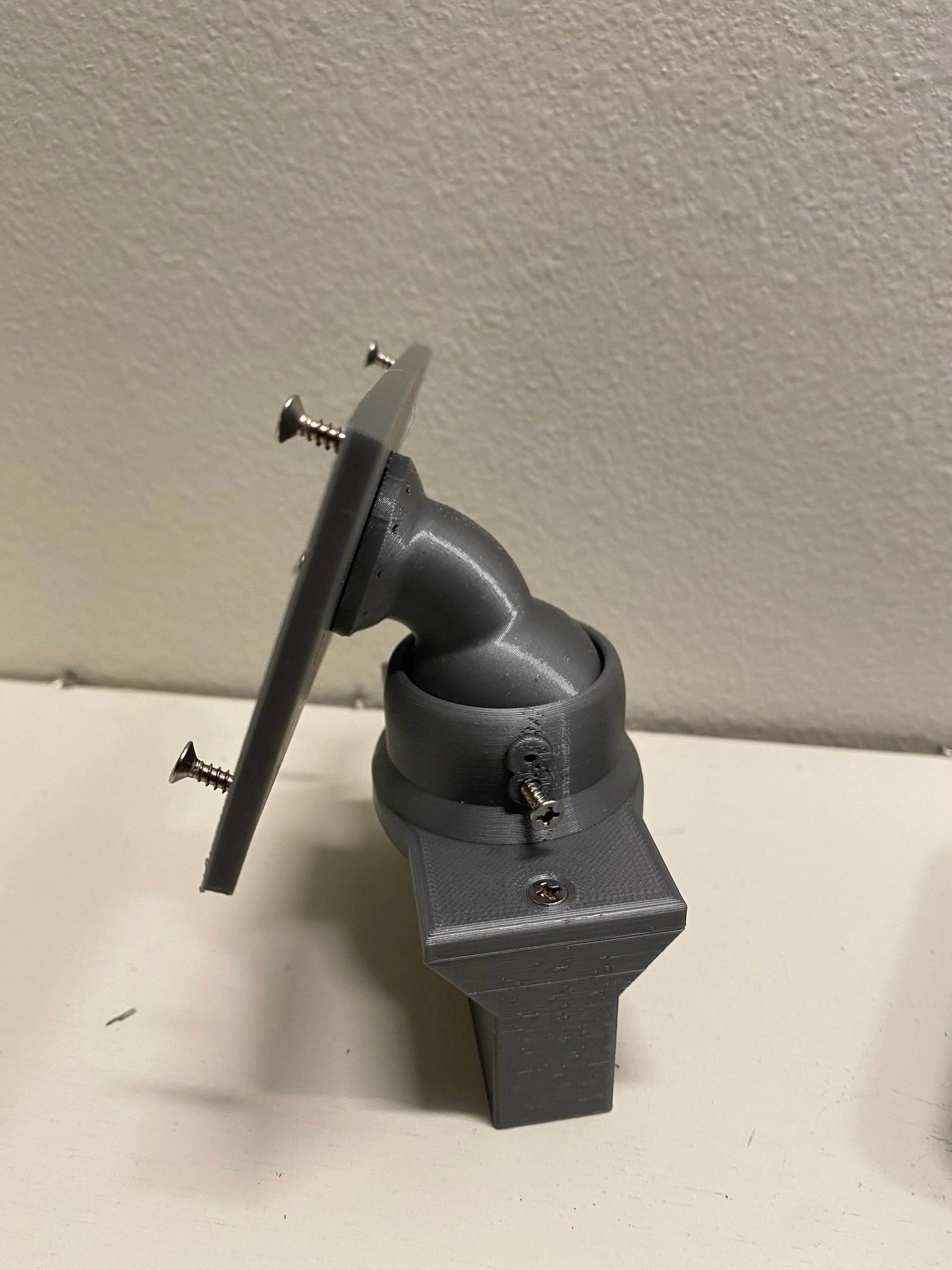

Robust dual-axis joint provides 15° to 90° range of motion both horizontally and vertically. The narrow 3/4" base orients vertically or horizontally while keeping the doorbell upright.

Physical Specifications (Narrow Base)

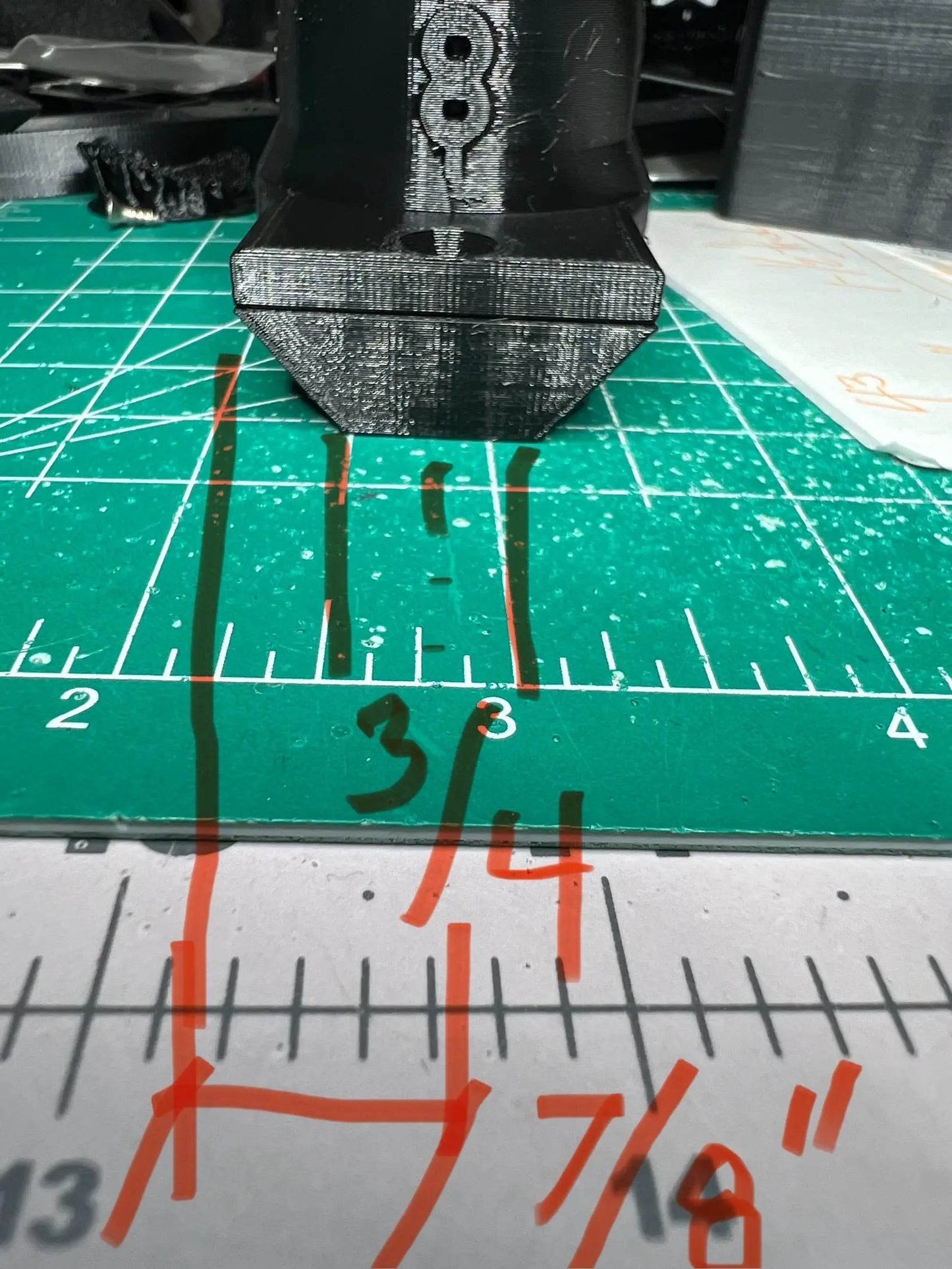

  • Base Width: 3/4 inches (0.75") — installs on surfaces ≥ 3/4" wide
  • Base Length: ~2.5 inches
  • Hole Spacing: ~2 inches center-to-center
  • Swivel Range: 15° to 90° dual axis

Mounting Kit Highlights

  • Ultra-Slim 3/4" Base: Narrow door frames, minimal surface area
  • 15-90° Wide-Range Swivel: Side walls, perpendicular installs, corner views
  • Customized Adapter Bracket: Select your doorbell model
  • Set-Screw Lock: Holds angle reliably
  • Wire Pass-Through: Clean routing for hardwired doorbells
  • Outdoor PETG: UV-stable, freeze-tolerant

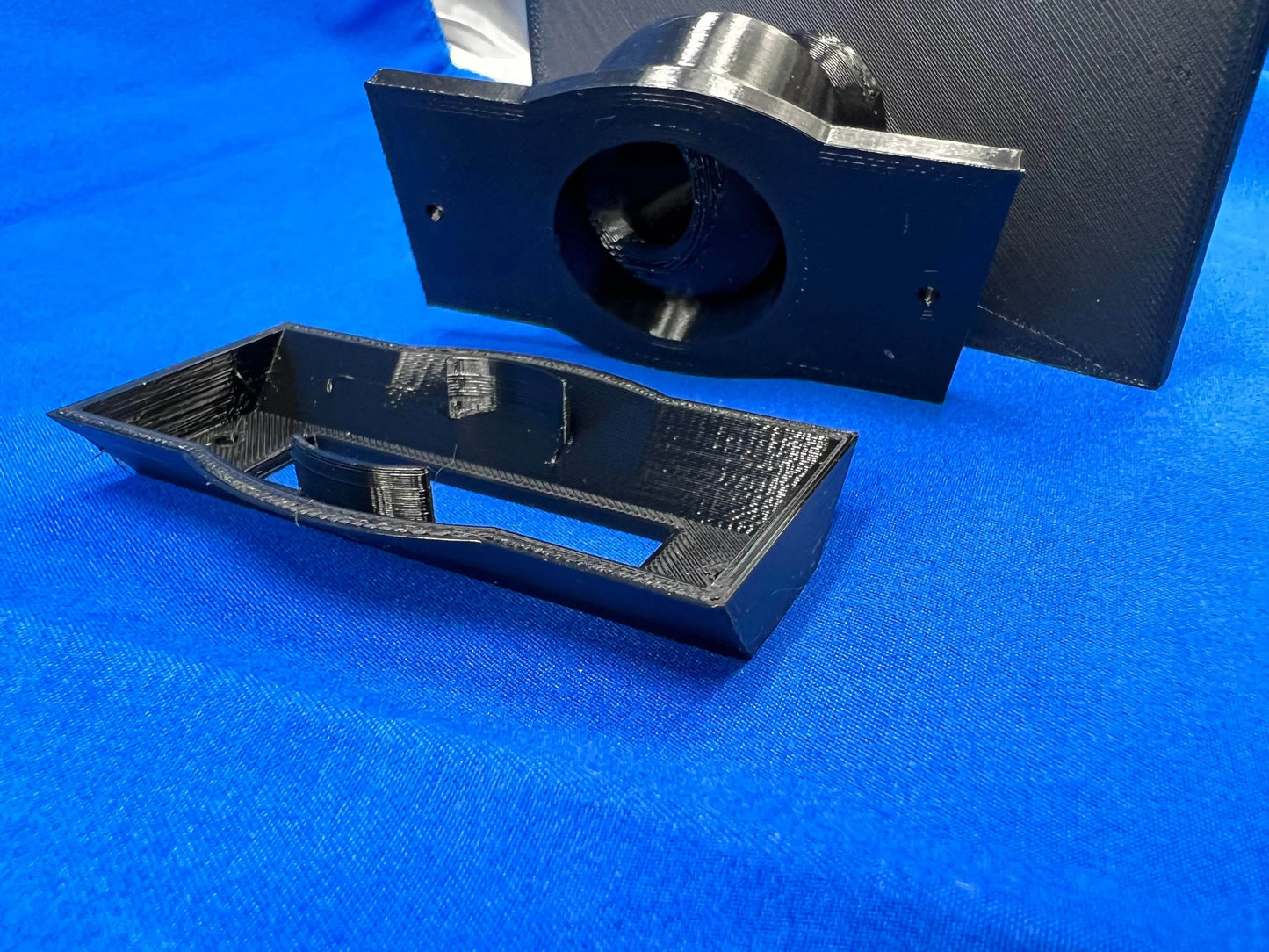

  • Complete Kit: Narrow base, swivel, custom adapter, all hardware

Installing Your Narrow Base Swivel Mount

  1. Tools & Prep: Drill, PH1 + PH2 Philips bits, level, anchors if needed.
    Turn OFF power at the breaker if hardwiring.
  2. Mount Narrow Base: Route wires through the 3/4" base. Position on trim/wall ≥ 3/4" wide. Attach with #6 screws (PH2) and anchors.
  3. Attach Swivel Bracket: Route wires through swivel. Align onto base, attach with four #4 / PH1 center screws.
  4. Set Initial Angle: Adjust swivel within 15-90°. Lightly tighten set screws.
  5. Wire Doorbell: Connect wires per manufacturer instructions.
  6. Attach Doorbell to Bracket: Use the screws PROVIDED WITH THIS MOUNT (PH1) — not the doorbell's stock screws.
  7. Finalize Angle: Make final adjustments. Fully tighten set screws gently. Restore power and test.

Visual Guide

Watch Installation Guide

Need Assistance?

Standard Color: Black. For other colors, add Color Change Request.

Angle Range: Approx. 15° to 90° relative to wall.

3D Printed: PETG, durable, weather-resistant. Minor cosmetic variations may be present.

The perfect solution for narrow trim and side walls — order your Narrow Base 15-90° Swivel Mount today and select your doorbell model.
