Adjustable Mount

Adjustable 90° Degree swivel Mount for Video Doorbells | Side Wall Solution

Adjustable 90° Degree swivel Mount for Video Doorbells | Side Wall Solution

Adjustable Swivel Version for Perpendicular or Side wall Doorbell Inst

$40.00 USD
$50.00 USD $40.00 USD
Sale Sold out
Shipping calculated at checkout.

Adjustable 90-Degree Corner Mount | Side Wall Solution

Select Your Doorbell Model for a Perfect Fit!

  • You MUST select your specific Doorbell Model and Brand from the options list on this page. We provide a custom-designed mounting bracket tailored to your selection for this 90-degree mount.
  • This mount system is compatible with many popular video doorbells (Ring, Nest, Eufy, Wyze, Blink, Reolink, etc.).
  • Unsure of your model? Many brands have confusing names! Please message, email, or text us a picture of your doorbell before ordering. (Contact info below).
  • Model Not Listed? We specialize in custom solutions! Contact us with your doorbell details, and we can likely add it for you.

Need help identifying a Ring model? Check our Ring Model Guide.

Solve Awkward Side Wall Views with 15-90° Swivel Adjustment

Is your video doorbell stuck on a side wall perpendicular to your door, giving you a view of the wall instead of your visitors? This Adjustable 90-Degree Corner Mount is engineered specifically for this challenge! It offers a wide 15° to 90° adjustment range, allowing you to pivot your doorbell outwards for a perfect view down your pathway or towards your gate.

It's the ultimate solution for perpendicular wall installations where standard mounts or simple wedges just don't provide enough angle.

Wide Angle Dual-Axis Control (15-90°)

Designed for significant angle correction, this mount features a unique bent-neck swivel joint. It provides precise aiming control across a 15° to 90° arc relative to the wall, ideal for side-facing views (excels at angles greater than 45°). Fine-tuning is possible both horizontally (left/right) and vertically (up/down).

Note: While adjustable across the range, this design is optimized for substantial side angles and is less suited if you only need a very minor (<15°) adjustment or a straight-ahead view.

Standard Mount Dimensions

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Total Extension: Varies with angle; greater than low-profile mounts due to the 90-degree design.
  • (Note: This is the standard base; narrow/larger base options may be available - see Customization section.)

Key Features & Benefits:

  • Wide Adjustable Angle (15-90°): Provides significant dual-axis swivel specifically for side wall / perpendicular installations.
  • Custom Fit Bracket: Select your doorbell model for a perfectly matched mounting bracket.
  • Secure Locking: Includes set screws to lock the swivel firmly at your chosen angle.
  • Wire Pass-Through: Hole in the swivel joint allows wires to pass through neatly for hardwired doorbells.
  • Siding Compatible: Works well on flat surfaces or lapped siding up to 1.8 inches wide.
  • Complete Kit: Includes adjustable base, custom doorbell bracket, and all necessary mounting screws.
  • Durable Material: Made from sturdy 3D printed PETG, suitable for outdoor use.
  • Problem Solver: Eliminates the "side wall view" issue for better security coverage.
  • Future-Proof System (Potential): Base may be compatible with future doorbell adapter brackets (check compatibility if upgrading). Find replacement brackets here (approx. $10).

Customization & Add-On Options Available:

We offer solutions for almost any mounting situation (may require contacting us or finding separate listings):

  • Narrow Baseplates: Need to mount on trim narrower than 1.8"? We have options like our 3/4 inch Wide Baseplate.
  • Large Baseplates: Need to cover a large existing hole? Contact us for options.
  • Vinyl Siding Adapters: Get a secure, no-drill installation on vinyl siding with our Vinyl Siding Adapters (check compatibility).
  • Wire Extensions: Installation requires longer wires? Contact us about wire extension kits.
  • Need LESS Angle? Check out our 0-35 Degree Swivel Mounts for subtle adjustments.
  • Custom Designs: Have a unique challenge? We specialize in custom solutions!

Installing Your 15-90° Swivel Mount

  1. Tools & Prep: Gather:
    • Drill (with bits).
    • Screwdrivers/Bits: PH2 Philips (#6 base screws) AND PH1 Philips (typically #4 bracket/set/doorbell screws provided). Use correct size!
    • Wall anchors (if needed), Level (optional).
    If wiring, turn OFF power at the circuit breaker first!
  2. Mount Base: Route wires through base. Position & attach using #6 screws (PH2 driver) / anchors.
    Drill pilot holes if needed. Don't overtighten base screws.
  3. Attach Swivel Bracket: Route wires through bracket. Align onto base & attach using four center screws (likely #4 / PH1 driver).
    Use correct PH1 bit. Start screws gently. Avoid overtightening.
  4. Set Initial Angle: Adjust swivel bracket (up/down & left/right) within 15-90°. Lightly tighten one/two set screws (likely #4 / PH1 driver).
  5. Wire Doorbell: Connect wires per manufacturer's instructions (if applicable). Tuck excess wire into mount.
  6. Attach Doorbell to Bracket:
    • Align your selected doorbell model (or its plate if used) with the pre-drilled holes on the custom swivel mount bracket sent for your model.
    • Secure doorbell/plate using the specific screws PROVIDED WITH THIS MOUNT (likely #4 / PH1 driver).
    • DO NOT USE screws that came with your doorbell for this step.
    • Replace doorbell cover if applicable.
    Use correct PH1 driver for provided screws. Tighten snugly, do not overtighten.
  7. Finalize & Secure Angle: Make final adjustments. Fully tighten all set screws (likely PH1 driver) gently but firmly.
    Do not overtighten set screws! Hand-tighten is sufficient.
    Turn power back on (if applicable) and test.

Follow safety rules & your doorbell's guidelines. Use appropriate anchors. Correct Philips bit size prevents damage.

Installation Video & Examples

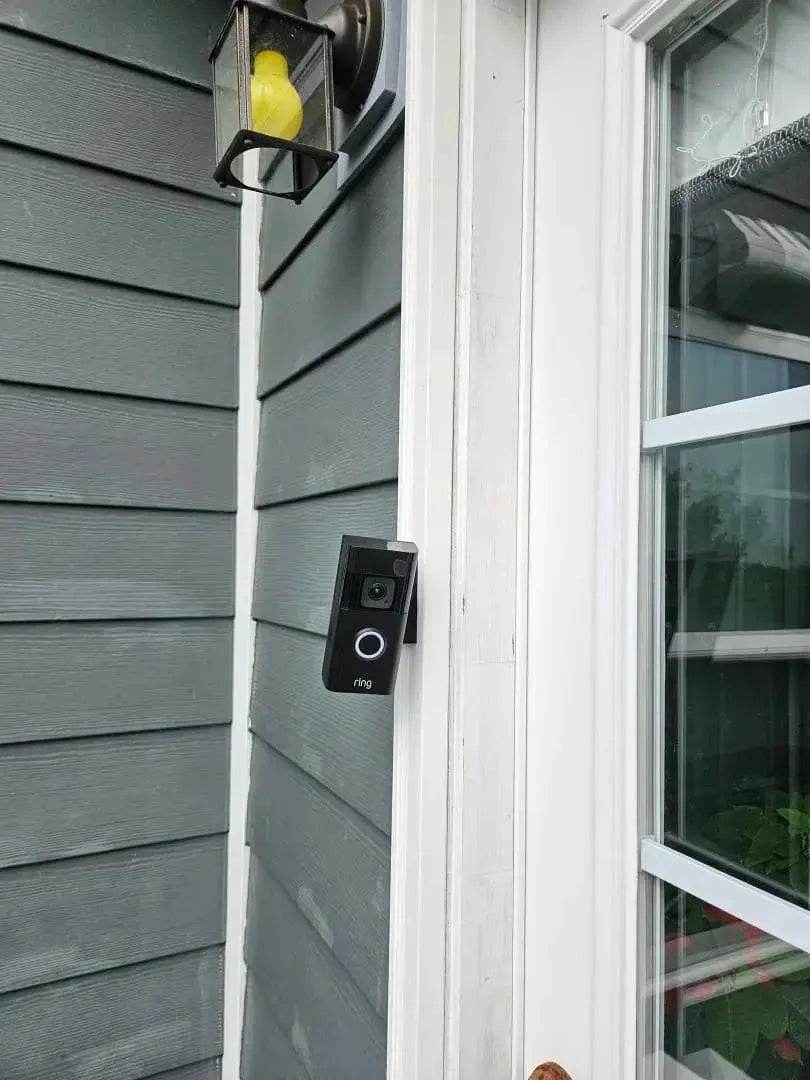

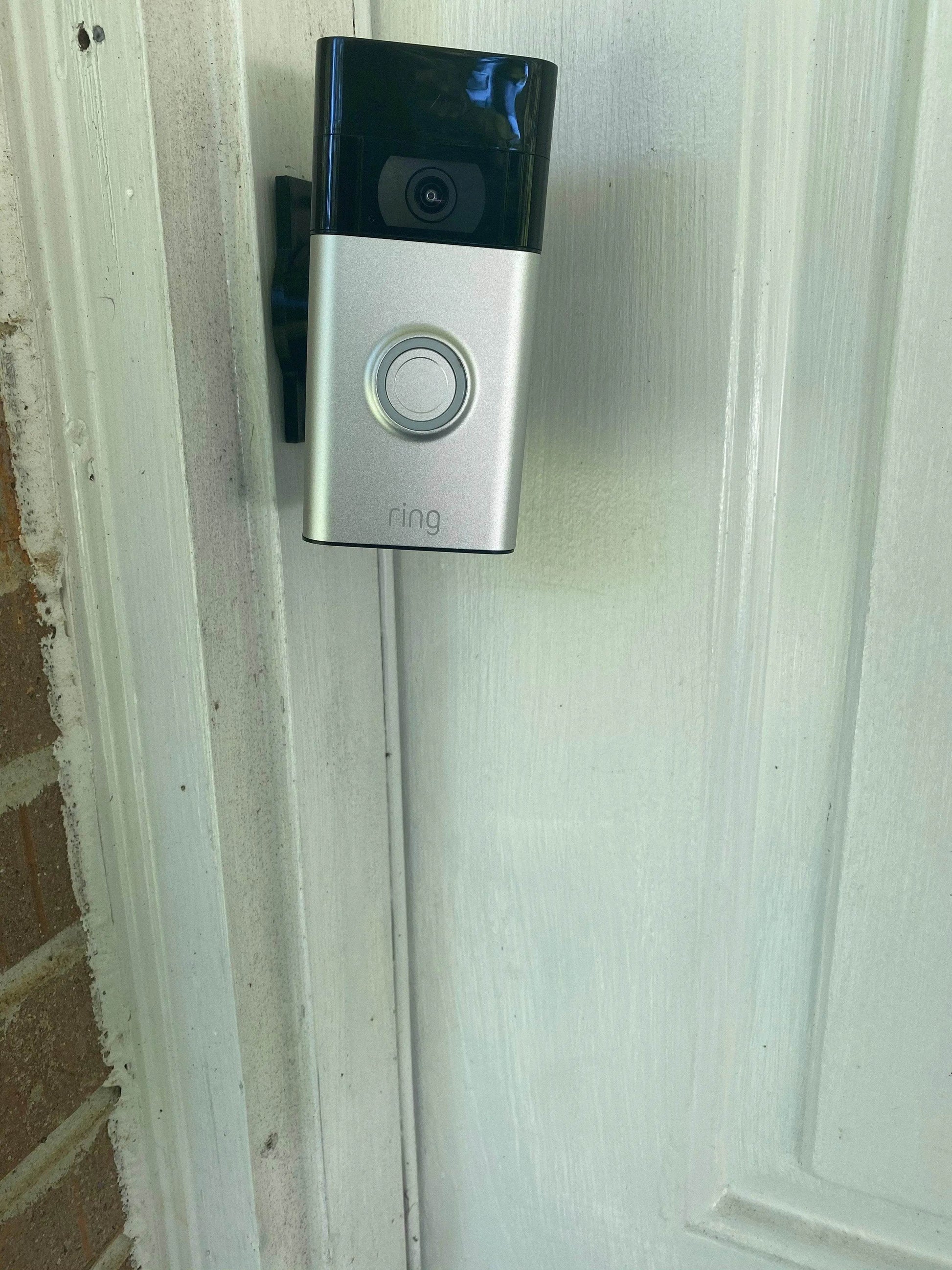

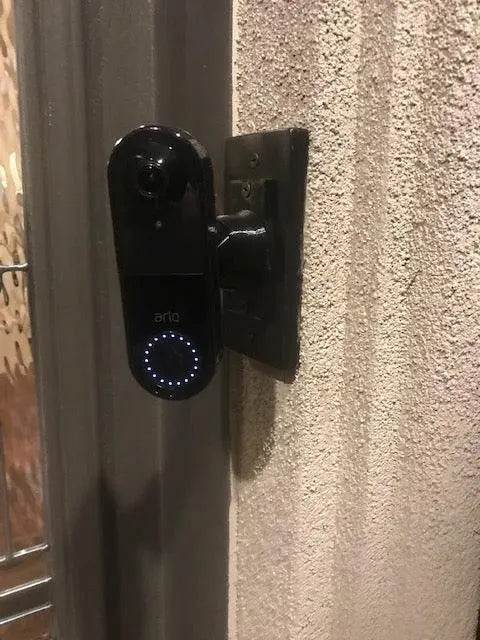

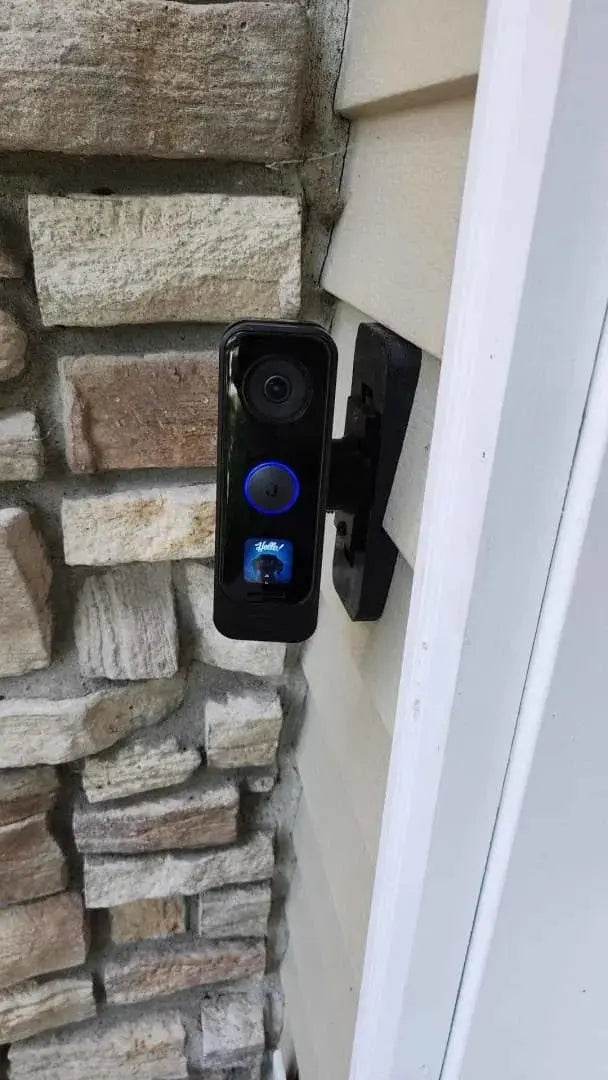

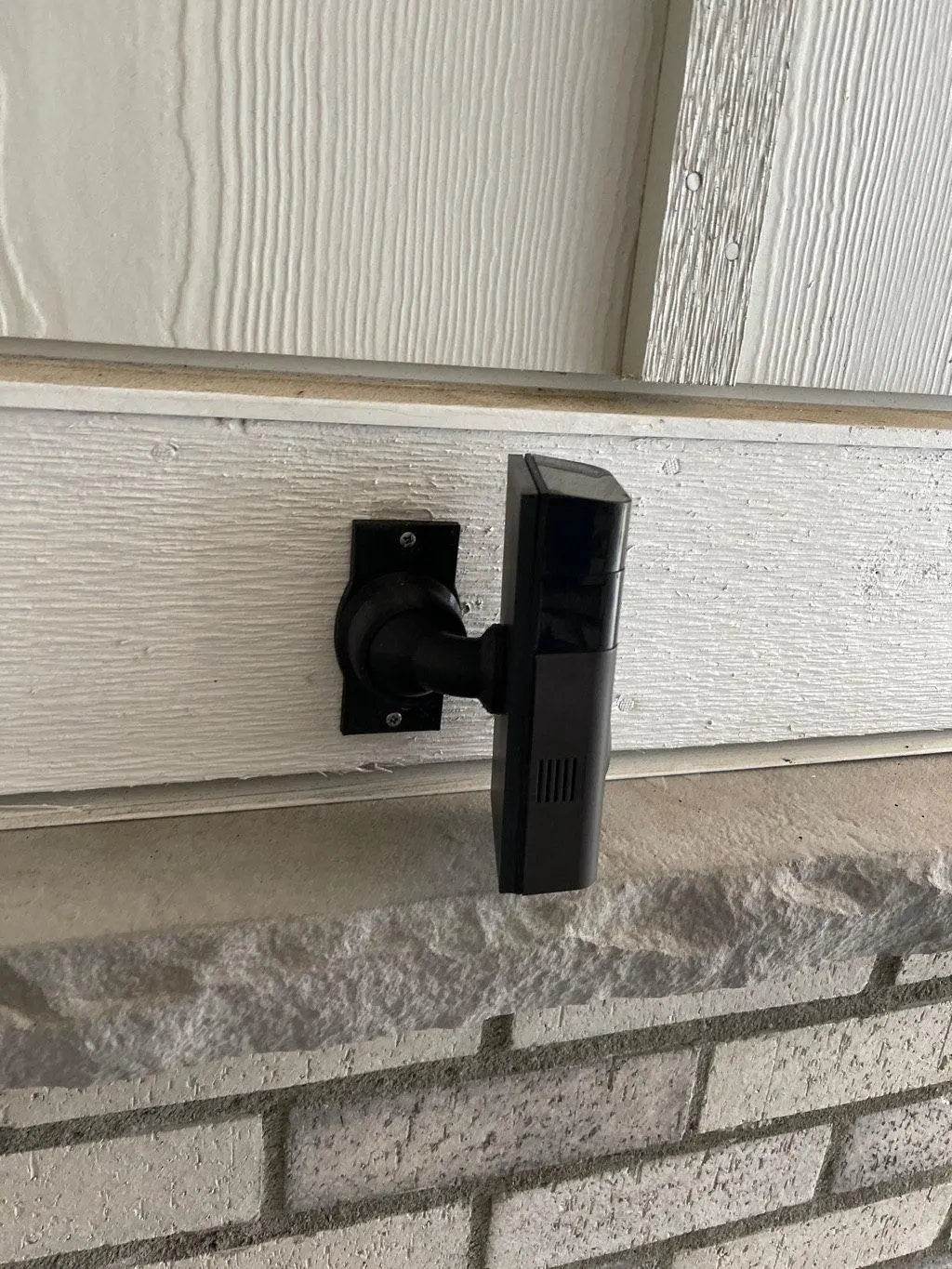

Example 90 degree side wall doorbell installation Adjustable base component
Watch: Swivel Doorbell Installation Video

(Video shows general installation principles for our swivel mounts.)

Questions? Need Help Selecting Your Model or Options?

We're here to help! If you're unsure about your doorbell model, need a custom solution for your 90-degree install, or your model isn't listed, please reach out:

Standard Color: Ships in Black. For other colors, select a different color

Angle Note: The term "90 degrees" represents the approximate maximum capability for perpendicular installations. The achievable angle depends on positioning, but this mount is designed to provide substantial correction (15-90°) for side walls.

3D Printed Parts: While 3D printing provides really good production quality parts, minor cosmetic variations or layer lines may be present. These do not affect the mount's strength or function. If you have any quality concerns, please contact us before leaving a review.

Order your Adjustable 90-Degree Corner Mount today! Remember to select your doorbell model for a perfect fit and finally get the right view from your side-mounted doorbell!
