35° Adjustable Swivel Doorbell Bracket | Frontal Angle Doorbell Adjustment - Rotate Horizontal / Vertical
35° Adjustable Swivel Doorbell Bracket | Frontal Angle Doorbell Adjustment - Rotate Horizontal / Vertical
Up to 35 Degree Adjustment in any Angle - Narrow 3/4in Wide Available
Couldn't load pickup availability
Adjustable Angle Doorbell Mount (0-35°) | Select Your Model
Select Your Doorbell Model for a Perfect Fit!
- You MUST select your specific Doorbell Model and Brand from the options list on this page. We provide a custom-designed mounting bracket tailored to your selection.
- This mount system is compatible with many popular video doorbells (Ring, Nest, Eufy, Wyze, Blink, Reolink, etc.).
- Unsure of your model? Many brands have confusing names! Please message, email, or text us a picture of your doorbell before ordering. (Contact info below).
- Model Not Listed? We specialize in custom solutions! Contact us with your doorbell details, and we can likely add it for you.
Need help identifying a Ring model? Check our Ring Model Guide.
Fine-Tune Your Doorbell View with 0-35° Swivel Adjustment
Need a slight angle adjustment to get the perfect view from your video doorbell? This low-profile swivel mount offers precise aiming control with a 0° to 35° adjustment range. Its versatile dual-axis joint allows fine-tuning both horizontally (left/right) and vertically (up/down).

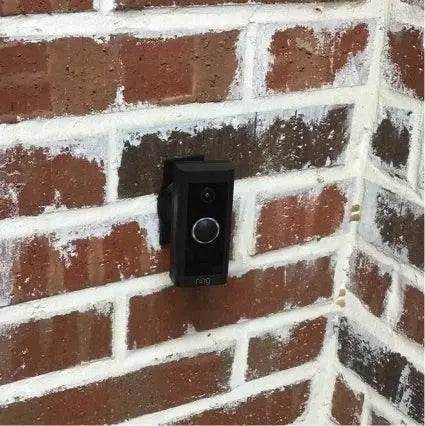

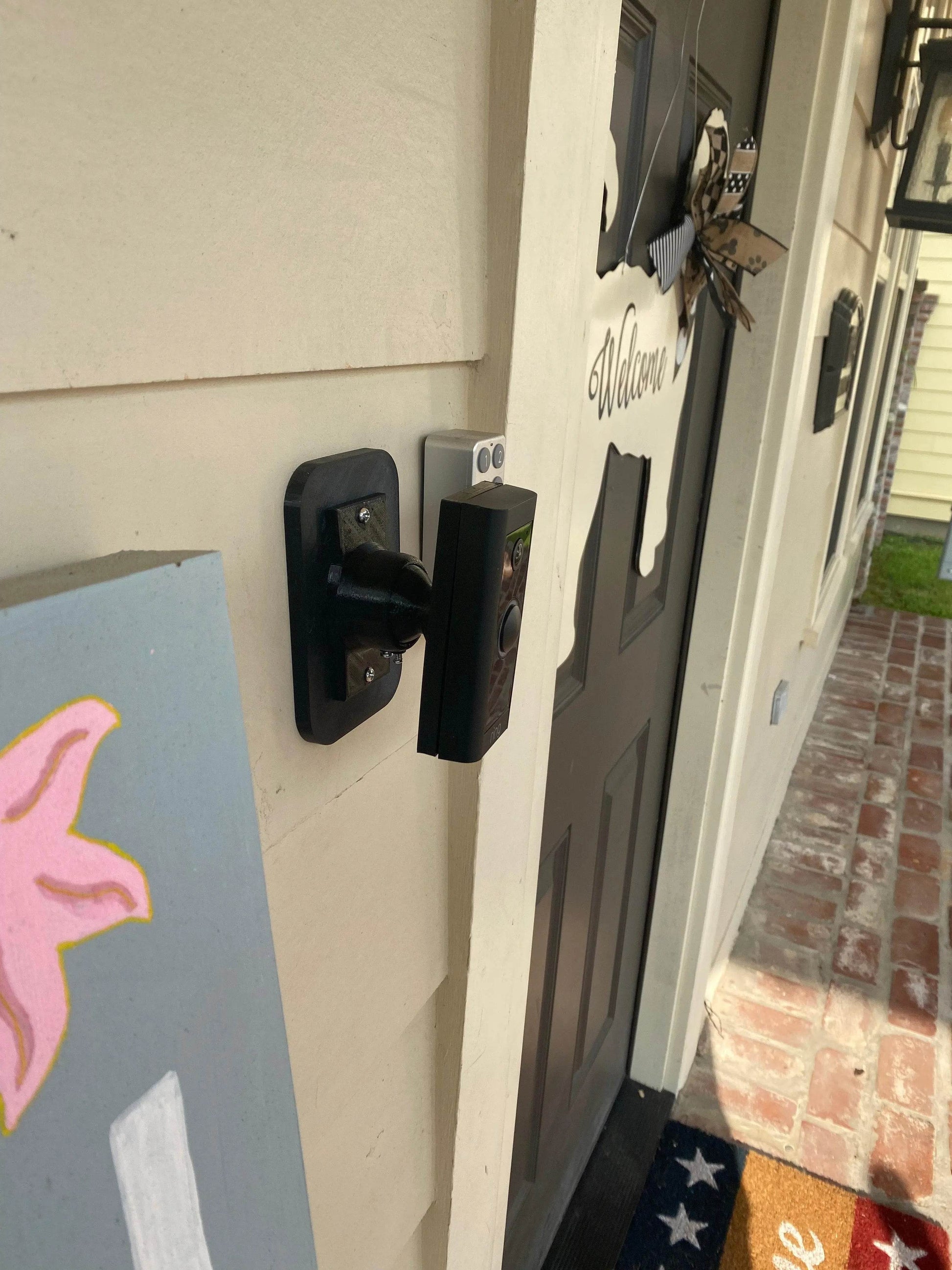

It's the ideal solution when your doorbell is mounted near the door on the same wall but needs a subtle turn, or requires a minor tilt on angled siding. Its design sits closer to the wall compared to higher-angle mounts, offering a clean aesthetic.
Precise Dual-Axis Control (0-35°)
Gain exact control over your camera's perspective. The smooth swivel joint enables fine adjustments across a 0° to 35° arc relative to the mounting surface, ensuring you capture precisely what matters.
Flexible Base Positioning: Mount the base plate vertically or horizontally to best suit your surface, like siding or trim. Your doorbell always remains upright.
Standard Mount Dimensions
- Base Width: 1.8 inches
- Base Height: 3.1 inches
- Base Hole Spacing: 2-5/8 inches (center-to-center)
- Total Extension (@ 0° Angle): Approx. 1.5 inches from wall (low profile)
- (Note: This is the standard base; narrow/larger base options may be available - see Customization section.)
Key Features & Benefits:
- Adjustable Angle (0-35°): Provides subtle dual-axis swivel for precise aiming.
- Custom Fit Bracket: Select your doorbell model for a perfectly matched mounting bracket.
- Secure Locking: Includes set screws to lock the swivel at your chosen angle.

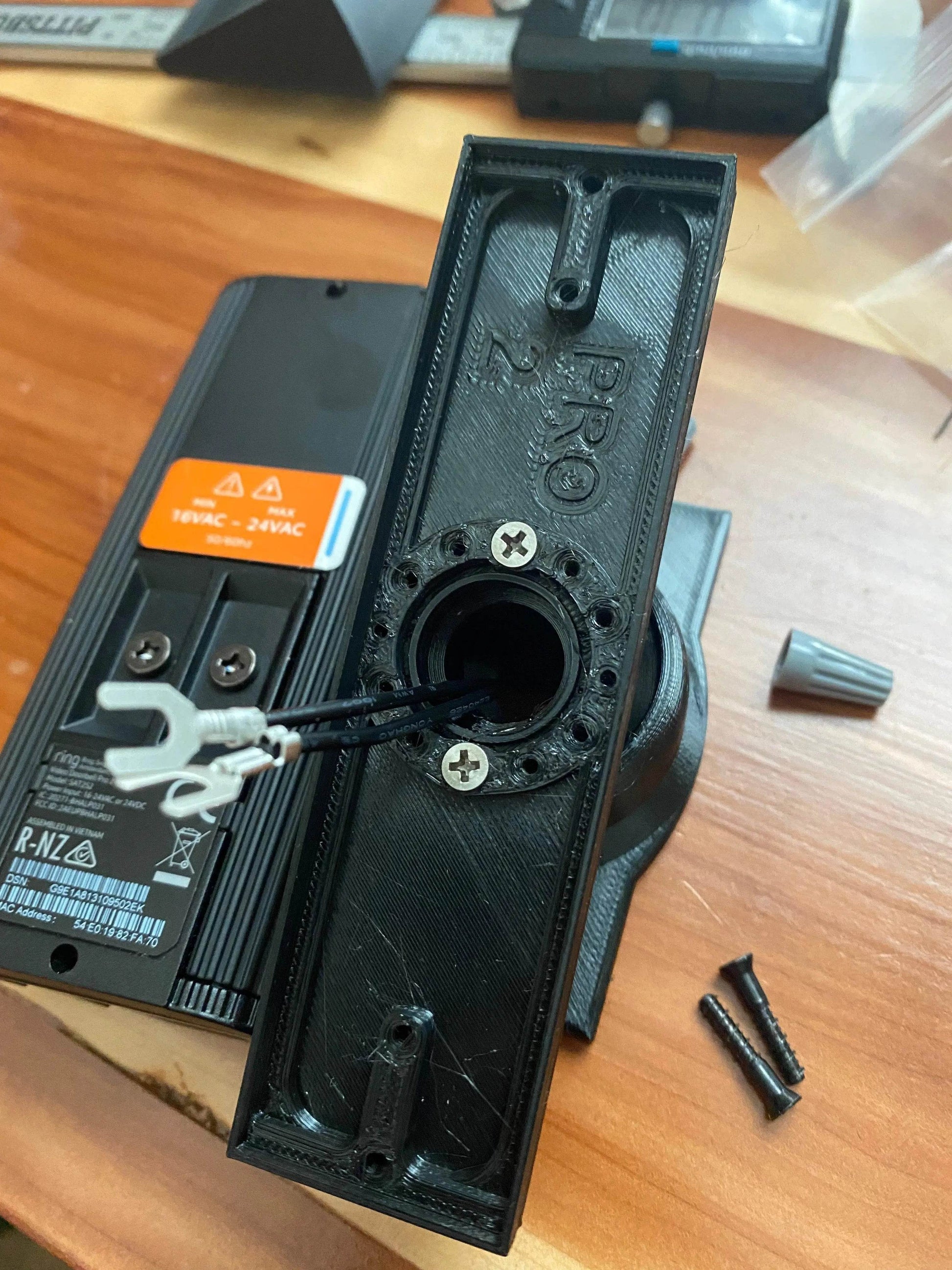

- Wire Pass-Through: Hole in the swivel joint allows wires to pass through neatly for hardwired doorbells.
- Siding Compatible: Works well on flat surfaces or lapped siding up to 1.8 inches wide.
- Low-Profile Design: Minimal extension from the wall.
- Complete Kit: Includes adjustable base, custom doorbell bracket, and all necessary mounting screws.
- Durable Material: Made from sturdy 3D printed PETG, suitable for outdoor use.
- Future-Proof System: Many of our mounts use a universal base! If you upgrade your doorbell model later, you often only need a new, affordable adapter bracket (the part your doorbell attaches to), not a whole new mount system. Find replacement brackets here (approx. $10).
Installing Your 0-35° Swivel Mount
-
Tools & Prep: Gather:
- Drill (with bits).
- Screwdrivers/Bits: PH2 Philips (#6 base screws) AND PH1 Philips (typically #4 bracket/set/doorbell screws provided). Use correct size!
- Wall anchors (if needed), Level (optional).
If wiring, turn OFF power at the circuit breaker first! -
Mount Base: Route wires through base. Position (screws vertical or horizontal) & attach using #6 screws (PH2 driver) / anchors.
Drill pilot holes if needed. Don't overtighten base screws.
-
Attach Swivel Bracket: Route wires through bracket. Align onto base & attach using four center screws (likely #4 / PH1 driver).
Use correct PH1 bit. Start screws gently. Avoid overtightening.
- Set Initial Angle: Adjust swivel bracket (up/down & left/right) within 0-35°. Lightly tighten one/two set screws (likely #4 / PH1 driver).
- Wire Doorbell: Connect wires per manufacturer's instructions (if applicable). Tuck excess wire into mount.
-
Attach Doorbell to Bracket:

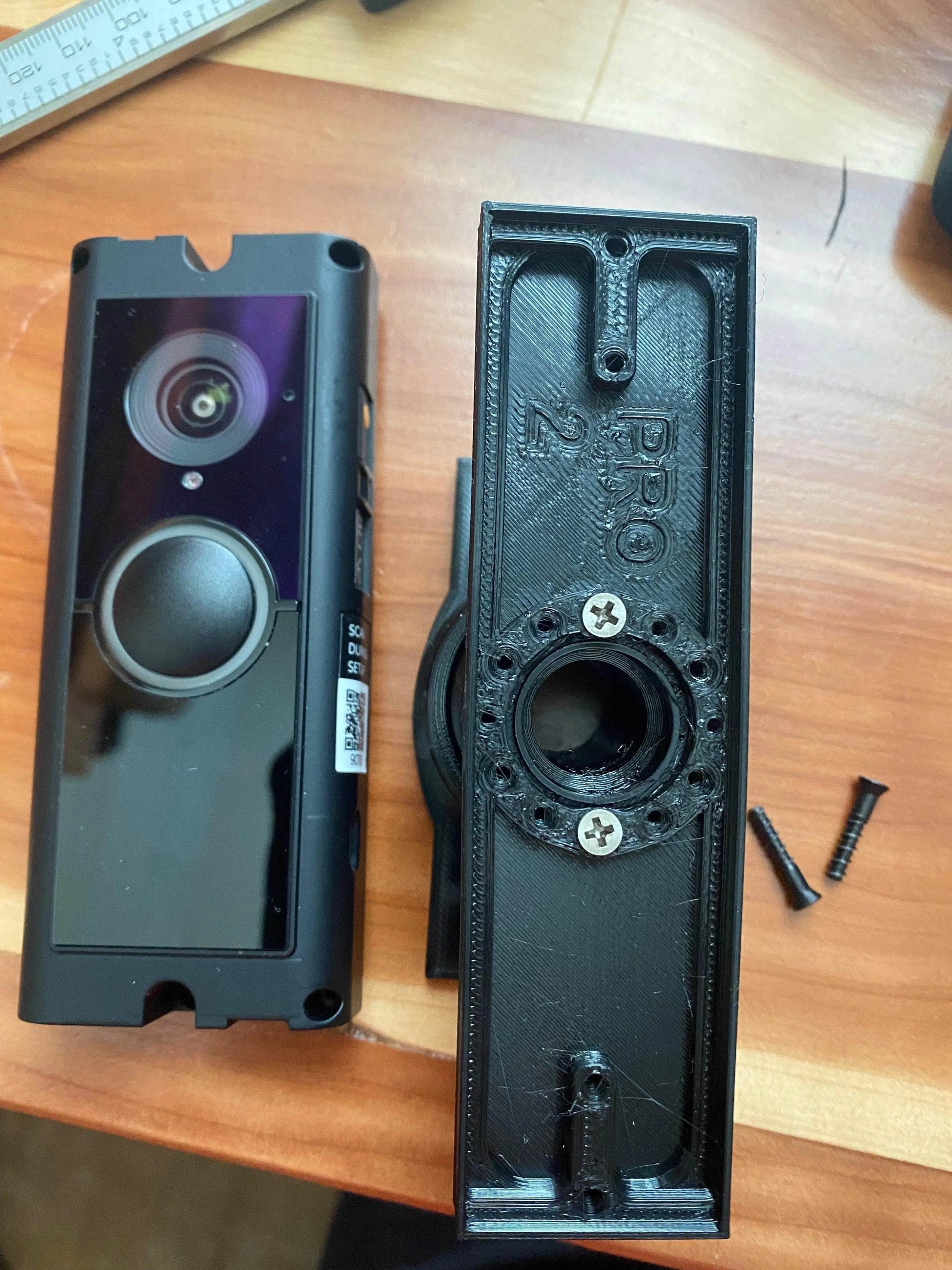

- Align your selected doorbell model (or its plate if used) with the pre-drilled holes on the custom swivel mount bracket sent for your model.
- Secure doorbell/plate using the specific screws PROVIDED WITH THIS MOUNT (likely #4 / PH1 driver).
- DO NOT USE screws that came with your doorbell for this step.
- Replace doorbell cover if applicable.
Use correct PH1 driver for provided screws. Tighten snugly, do not overtighten. -
Finalize & Secure Angle: Make final adjustments. Fully tighten all set screws (likely PH1 driver) gently but firmly.
Do not overtighten set screws! Hand-tighten is sufficient.Turn power back on (if applicable) and test.
Follow safety rules & your doorbell's guidelines. Use appropriate anchors. Correct Philips bit size prevents damage.
Installation Video & Examples
(Video shows general installation principles for our swivel mounts.)
Questions? Need Help Selecting Your Model or Options?
We're here to help! If you're unsure about your doorbell model, need a custom solution, or your model isn't listed, please reach out:
- Email: shop@doorbellmount.com (Send pictures!)
- Text/Call: 1-833-326-6868 (Text pictures!)
Standard Color: Ships in Black. For other colors, please purchase the separate Color Change Request listing along with this mount.
Angle Note: The maximum 35-degree angle is approximate and may vary slightly depending on installation and doorbell model.
3D Printed Parts: While 3D printing provides really good production quality parts, minor cosmetic variations or layer lines may be present. These do not affect the mount's strength or function. If you have any quality concerns, please contact us before leaving a review.
Order your Adjustable Angle Mount today! Remember to select your doorbell model for a perfect fit and achieve the ideal viewing angle!
