15-90° Adjustable Swivel Mount for Eufy Video Doorbell C31 (2024) | 2K Wired or Battery | Quick-Release Friendly Pivot

$50.00
$40.00
Custom 15-90° Pivot Mount for the Eufy Video Doorbell C31 Custom-Fit for the Eufy Video Doorbell C31 (Wired or Battery) This bracket is shaped specifically for the Eufy Video Doorbell C31 (2024) — Amazon ASIN B0DDTT29C2. The C31 is Eufy's...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

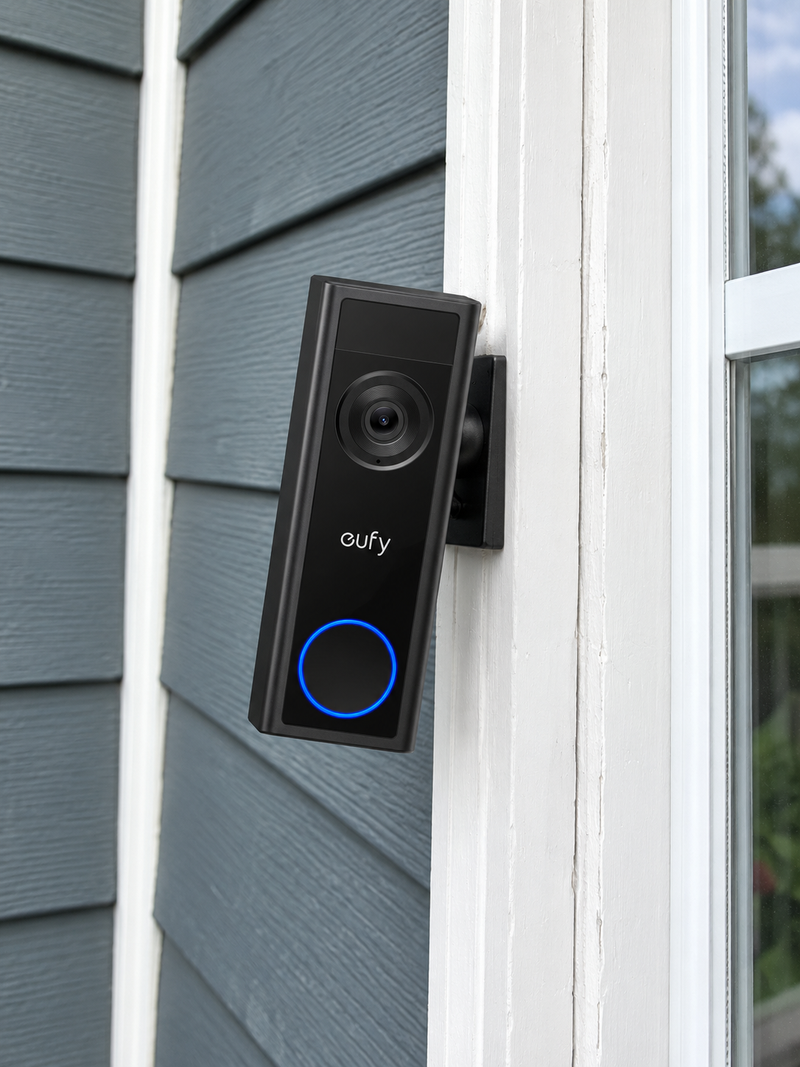

Custom 15-90° Pivot Mount for the Eufy Video Doorbell C31

Custom-Fit for the Eufy Video Doorbell C31 (Wired or Battery)

  • This bracket is shaped specifically for the Eufy Video Doorbell C31 (2024) — Amazon ASIN B0DDTT29C2. The C31 is Eufy's mid-range single-cam doorbell with quick-release battery (no need to uninstall to charge). Works wired OR battery without buying a different SKU.
  • Does NOT fit: other Eufy models (E340, S330W, C30, S220 each have their own listing) or any non-Eufy brand.
  • Not sure which Eufy you have? Send a photo of the back of your doorbell to shop@doorbellmount.com.
Don't have the doorbell yet? Get the Eufy Video Doorbell C31 on Amazon →

Side-Wall Aim for the Quick-Release C31

The C31 is built for installer convenience — it works wired or battery, and the battery slides out the bottom without removing the doorbell. This 15-90° swivel mount respects that design: the adapter bracket leaves the C31's bottom edge exposed so you can pop the battery for charging without unscrewing anything. Aim 15° for a slight side-wall correction, or all the way to 90° for a true perpendicular install on a porch column.

C31 ships with quick-release battery design — the mount keeps the bracket open at the bottom so you can pop the battery without uninstalling.

Wide Dual-Axis Control (15-90°) — Tuned for the C31

Bent-neck swivel joint, precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally (left/right) and vertically (up/down). Locking set screws hold position permanently.

15-90 degree side-wall mount adjustability diagram for Eufy C31
15° to 90° pivot — dual-axis swivel for perpendicular installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Eufy C31 for flat-wall installs.

Internal Wire Routing — Hidden & Protected

Wired-mode power leads pass through a hidden internal channel inside the swivel joint, route through the front C31 adapter bracket, and connect directly to the doorbell terminals. Battery-only installs leave the channel unused.

Internal wire routing diagram for Eufy C31

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches
  • Weight: ~2 oz

Key Features & Benefits

  • Quick-Release Battery Friendly: Adapter bracket leaves bottom edge clear — pop the C31 battery without uninstalling.
  • Custom-Fit Bracket for C31: Pocket-shaped to the C31 body — no rocking, no light gap.
  • Wide Adjustable Angle (15-90°): Dual-axis pivot for perpendicular and side-wall installs.
  • Locking Set Screws: Permanent angle hold; no creep when you swap or recharge the battery.
  • Wire Pass-Through: Internal channel for wired-mode leads (skip if running battery).
  • Outdoor PETG: UV-stable, freeze-tolerant filament, made in USA.
  • Siding Compatible: Flat surfaces and lapped siding up to 1.8 inches wide.
  • Dual-Power Native: Switch between wired and battery anytime — the mount supports both modes.
  • Future-Proof Base: Compatible with future Eufy adapter brackets via $10 swap.

Customization & Add-On Options

Installing on the Eufy C31

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket/set/doorbell screws provided), wall anchors if needed, level, multimeter (only if hardwiring).
    5-12V DC (battery), 8-24V AC (wired). Quick-release battery means you charge without removing the mount.
  2. Decide Power Mode First: If hardwiring, turn off the doorbell circuit at the breaker. If battery-only, skip the breaker step.
  3. Mount the Base: Pull doorbell wires through (if hardwiring), attach with #6 screws (PH2 driver) and anchors as needed.
  4. Attach the Swivel Bracket: Route wires through the swivel joint (skip if battery), then screw the swivel onto the base with four #4 / PH1 center screws.
  5. Set Initial Angle: Adjust within 15-90° toward the visitor approach. Lightly tighten one or two set screws.
  6. Wire (or Charge) the C31: If hardwiring, connect the leads. If battery-only, fully charge before mounting.
  7. Attach the Doorbell to the Bracket: Use the screws PROVIDED WITH THIS MOUNT (#4 / PH1 driver). DO NOT USE Eufy's stock screws or back plate.
  8. Aim Using Live View: Open eufy Security app → Live View. Adjust through 15-90° until porch path is centered, then fully tighten the set screws.
  9. Tune Motion Zones: Redraw motion zones to match the new angle.

FAQ — Eufy C31 15-90° Mount

Will this 15-90° mount fit the Eufy Video Doorbell C31?
Yes. Custom-shaped for the Eufy C31 (2024), Amazon ASIN B0DDTT29C2. It will not fit other Eufy models like the E340, S330W, C30, or S220.
Difference between this 15-90° mount and the 0-35° mount?
The 15-90° mount is for substantial side-wall corrections (perpendicular installs). The 0-35° mount is for fine-tuning aim on flat walls. Choose 15-90 if you need more than 15° correction.
Can I install on vinyl, Hardie, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, use the Hardie Siding Mount for cement board, or drill pilot holes with masonry anchors for stucco.
Is the mount weatherproof?
Yes. UV-stabilized PETG, freeze-tolerant. 4+ year real-world track record.
Can I remove the C31 battery without removing the doorbell from this mount?
Yes — that's the point of the quick-release bracket cutout. Press the C31's release tab, slide the battery out, charge it, pop it back in. The doorbell stays mounted at the same angle the entire time.
Does the mount support the C31's wired-mode 8-24V AC range?
Yes. The wire pass-through accepts 18-22 AWG doorbell wire. The C31's wired terminals stay accessible at the doorbell's rear.
Will I lose any C31 features (chime sync, AI detection) by using this mount?
No — the mount has zero electronics. Chime sync, Local Storage, AI human/parcel detection, and HomeBase 3 pairing all work identically. Just redraw motion zones in the eufy app after install.

Replacement Guarantee

If your mount breaks, cracks, or fails for any reason within the first year of ownership — even if the cause is your own install error — we'll print and ship a free replacement at no cost to you.

Email shop@doorbellmount.com with a photo and your order number. We typically print and ship within 48 hours.

Need to Buy the Doorbell or Accessories?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help?

Standard Color: Ships in Black. Other colors via Color Change Request.

Pick up your 15-90° Adjustable Swivel Mount for the Eufy C31 today — finally get the right view from your side-mounted doorbell.
