15-90° Adjustable Swivel Mount for Wyze Wireless Video Doorbell Pro (Battery + Chime, 2022) | 1440p 1:1 | Two-Axis Tilt & Swivel

$50.00
$40.00
15-90° Adjustable Swivel Mount for the Wyze Wireless Video Doorbell Pro — 1440p Head-to-Toe Battery + Chime Built for the Wyze Wireless Video Doorbell Pro — the wireless or wired model with 1440p 1:1 head-to-toe video, color night vision, and...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

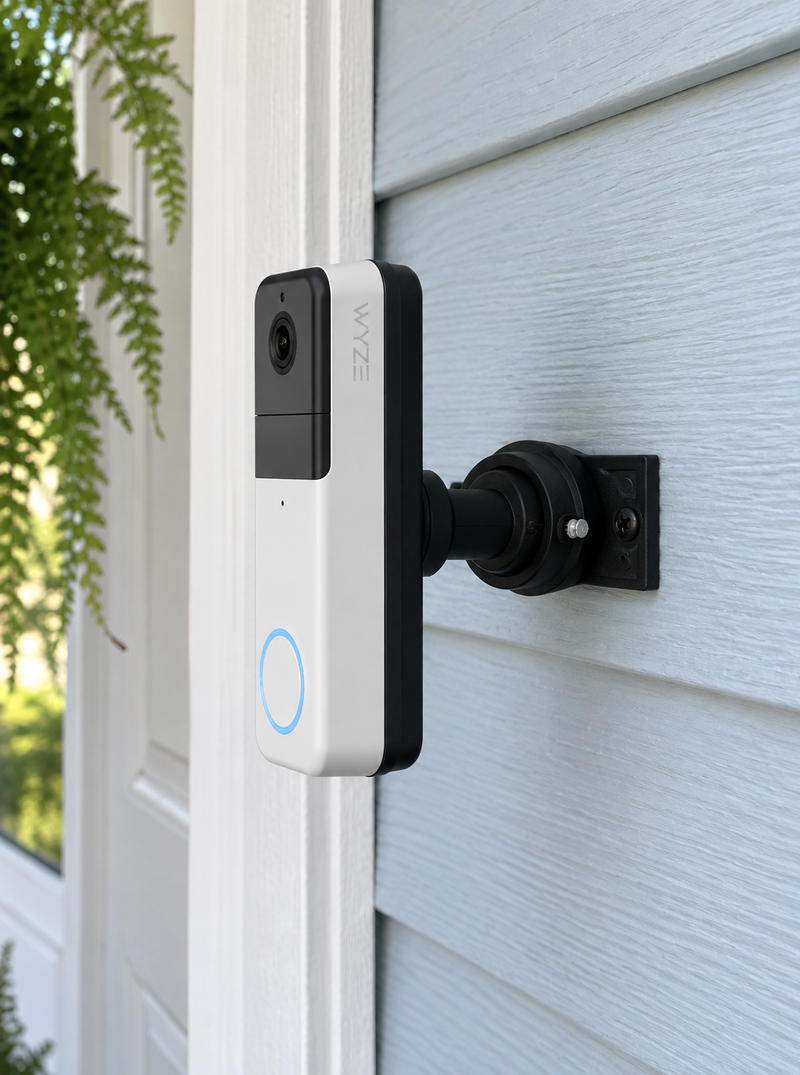

15-90° Adjustable Swivel Mount for the Wyze Wireless Video Doorbell Pro — 1440p Head-to-Toe Battery + Chime

Built for the Wyze Wireless Video Doorbell Pro — the wireless or wired model with 1440p 1:1 head-to-toe video, color night vision, and a 6500mAh battery good for 3-6 months between charges (longer if trickle-charged from existing chime power). The bracket cups the Pro's chunkier square body, and the bent-neck 15-90° pivot tilts the entire assembly perpendicular to the wall — ideal when the doorbell sits on a side wall facing siding instead of visitors. Locks with stainless set screws. Outdoor-rated UV-stable PETG, made-to-order in the USA, ships matte black.

Most Wyze Pro complaints come down to one thing: the camera is square to the wall on a side install, so 1440p of head-to-toe resolution gets wasted on brick or trim. This bent-neck pivot fixes that without buying a new doorbell.

Custom-Fit for the Wyze Wireless Video Doorbell Pro

  • This bracket is shaped specifically for the Wyze Wireless Video Doorbell Pro — Amazon ASIN B0BQCW4W6C (chime included). 1440p 1:1 head-to-toe square video, color night vision, 6500mAh built-in battery (3-6 month life), optional trickle-charge wiring to existing chime power, AI human/package detection, no monthly fee. Body dimensions noticeably thicker than the v1/v2.
  • Does NOT fit: the Wyze Video Doorbell v1 (1080p Wired 3:4) or v2 (2K Wired) — both have completely different bodies (see those listings). Does not fit the Wyze Duo Cam (taller dual-camera body) or the new 2025 Battery Video Doorbell (slim 5.71" body, 1536p). Each Wyze model has its own dedicated mount.
  • Confused which Wyze you have? The Pro has a 1:1 SQUARE camera lens with NO second small camera at the bottom. If yours has two visible lenses stacked vertically, it's the Duo Cam — different listing.
Don't have the doorbell yet? Get the Wyze Wireless Video Doorbell Pro on Amazon →

Bent-Neck Pivot for the Pro's 1:1 Head-to-Toe Lens

The Pro's 1:1 aspect ratio is the marquee feature — you see a visitor head-to-toe AND see the porch floor in the same frame. That advantage evaporates the moment the doorbell is screwed flat to a side wall: the lens watches siding, the package zone is missing, and the bottom-edge speaker grille fires into a corner.

The 15-90° bent-neck swivel tilts the whole body outward from the wall — up to 90° perpendicular — so the head-to-toe frame actually points at people approaching the front door. With the Pro's 6-month battery life, you set the angle once and revisit only at recharge time. Trickle-charge wiring works through the joint if you have existing 16-24V AC at the chime location.

Wide Dual-Axis Control (15-90°) — Tuned for the Wyze Video Doorbell Pro

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Wyze Wireless Video Doorbell Pro
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Wyze Video Doorbell Pro for fine-tuning on flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom-Fit Pocket for Wyze Pro: Pre-shaped to the chunkier square body — no rocking, no rattle, lens unobstructed.
  • Wide 15-90° Bent-Neck Pivot: Rotates the doorbell from near-flush to fully perpendicular — matches the geometry of side-wall installs.
  • Two-Axis Lock: Tilt vertically AND pan horizontally; set screws lock both axes once aimed.
  • USB-C Charging Access: The bottom USB-C port stays reachable for in-place charging without dismounting.
  • Trickle-Charge Wire Pass: If you have 16-24V AC at the chime, route the wires through the joint for continuous trickle-charge.
  • Outdoor-Rated PETG: UV-stable, freeze-tolerant, sealed against rain.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8" wide.
  • Universal Base: Future-proof — switch doorbells later for a ~$10 adapter swap.
  • Complete Kit: Bent-neck swivel base, custom Wyze Pro adapter, set screws, mounting screws + anchors.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Wyze Video Doorbell Pro

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket / set screws / doorbell screws — provided preinstalled to the bracket), wall anchors if needed, level, plus a multimeter if you're wiring to existing chime power.
    Battery-only is the easy path — just charge the doorbell first. If wiring to chime for trickle-charge: turn breaker OFF first. The Pro accepts 16-24V AC at the chime location.
  2. Plan the Aim Angle BEFORE Drilling: Stand where a visitor would stand and visualize the angle from doorbell to that spot. 15-90° gives a wide range — commit to roughly the right angle before drilling pilot holes to save rework.
  3. Charge the Pro First: Top off the Pro via USB-C (about 5 hours from empty) so you can verify Live View aim during install. The Pro ships partially charged.
  4. Mount the Base: Pull wires through the base hole (only if wiring to chime), position vertically on your siding/trim, and attach using #6 screws (PH2 driver) with anchors as needed.
    Drill pilot holes for hard trim wood. Don't overtighten base screws.
  5. Attach the Bent-Neck Swivel Bracket: Route wires through the swivel joint (skip if battery-only). Align onto the base and attach using four center #4 / PH1 screws.
  6. Set Initial Angle: Adjust the swivel within 15-90° toward the visitor approach. Lightly tighten one or two set screws — final tightening comes after Live View confirmation.
  7. Wire (Optional) and Snap the Pro Into the Bracket: If wiring, connect the two transformer leads to the Pro's screw terminals — polarity doesn't matter for AC. If battery-only, skip wiring. Then secure the doorbell to the custom Pro adapter using the screws PROVIDED WITH THIS MOUNT (these come preinstalled in the bracket so you can see exactly where each screw goes). Do NOT use Wyze's stock wedge or 3M adhesive backing.
    Tighten snugly, do not overtighten. Use the correct PH1 driver for provided screws.
  8. Aim Using Live View & Finalize Set Screws: Restore power (if wired). Open the Wyze app → Live View → tilt and pan the bent-neck through the 15-90° range until the 1:1 frame covers porch top-to-bottom and faces are centered, then fully tighten all set screws.
    Hand-tight is sufficient on set screws. Over-tightening can crack the swivel joint.
  9. Tune Detection Zones: In the Wyze app, redraw motion zones to match the new angle. Side-wall installs benefit from a tighter "porch path" zone — the wider 90° angle catches more peripheral motion (cars passing, mail truck) that you'll want to exclude. Configure person/package detection.

Side-wall tip: extreme 90° angles slightly increase wind load on the doorbell. The set-screw lock is rated for it, but on installs in high-wind regions (coastal, exposed corners), the bracket's wider extension at 90° puts slight pre-loaded weight on the joint — completely fine, just normal for side-wall geometry.

FAQ — Wyze Video Doorbell Pro 15-90° Mount

Will this 15-90° mount fit the Wyze Doorbell Pro?
Yes — custom-shaped for the Wyze Wireless Video Doorbell Pro (B0BQCW4W6C). Will not fit the v1, v2, Duo Cam, or new 2025 Battery Video Doorbell.
What's the difference between this 15-90° mount and the 0-35° mount?
The 15-90° is for substantial side-wall correction — perpendicular installs where the doorbell sits on a wall offset from the door. The 0-35° is for small flat-wall fine-tuning.
Can I use this mount with vinyl siding, Hardie, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, the Hardie Siding Mount for cement-board, or use masonry anchors for stucco/brick.
Does the mount allow the Pro's USB-C port to stay accessible?
Yes. The custom adapter leaves the bottom USB-C port reachable so you can recharge in place — no need to dismount the doorbell every 3-6 months.
Can I trickle-charge from existing chime wiring through this mount?
Yes. Route the 16-24V AC chime wires through the wire pass-through in the swivel joint. The Pro will trickle-charge continuously and effectively become wire-powered — the 6500mAh battery becomes a UPS for power outages.
Is the mount weatherproof?
Yes. UV-stabilized PETG, freeze-tolerant, sealed against rain — tested through 4+ years of real installs.
Will the swivel hold its angle for 6+ months between charges?
Yes. The dual set-screw lock is rated for years, not months. Real-world installs hold their angle for 4+ years without readjustment.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Need to Buy Your Wyze Doorbell?

Quick affiliate links to the full Wyze video doorbell lineup:

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you. Pricing is controlled by Amazon and may change.

Questions? Need Help?

Standard Color: Ships in Black. For other colors, use the Color Change Request.

Angle Note: The term “15-90°” represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance. Each mount is printed-to-order in our USA shop.

Snag the right side-wall mount for your Wyze Pro — lock the 1440p head-to-toe lens on target and reclaim the porch view today.
