15-90° Adjustable Swivel Mount for Ubiquiti UniFi G4 Doorbell Pro PoE Kit | Bundle with PoE Adapter + Chime Pro | Cat-5e Pass-Through Pivot

$50.00
$40.00
15-90° Side-Wall Pivot Mount for the UniFi G4 Doorbell Pro PoE Kit — Bundle with PoE Adapter + Chime Pro Included Built for the UniFi G4 Doorbell Pro PoE Kit (UVC-G4-Doorbell-Pro-PoE-Kit) — same body as the standalone G4 Doorbell Pro,...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Side-Wall Pivot Mount for the UniFi G4 Doorbell Pro PoE Kit — Bundle with PoE Adapter + Chime Pro Included

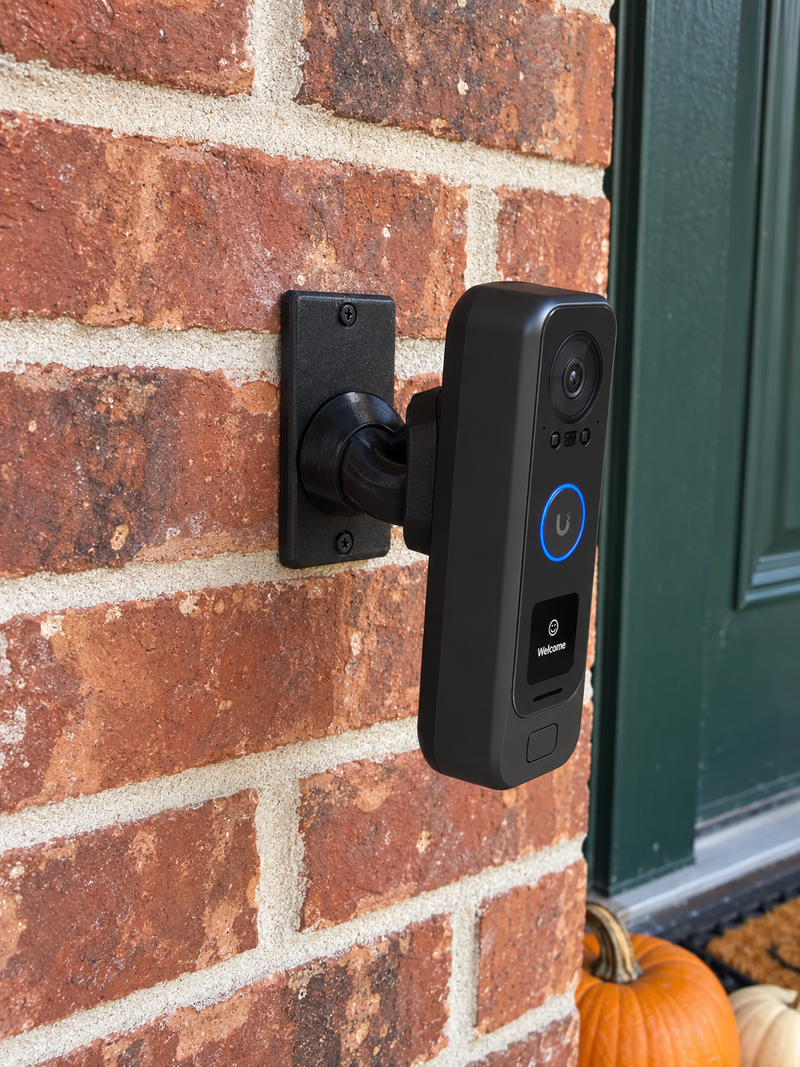

Built for the UniFi G4 Doorbell Pro PoE Kit (UVC-G4-Doorbell-Pro-PoE-Kit) — same body as the standalone G4 Doorbell Pro, just bundled with a PoE adapter + Chime Pro. The bent-neck 15-90° pivot tilts the body perpendicular to the wall on side-wall installs.

Custom-Fit for the G4 Doorbell Pro PoE Kit

  • Specifically for UniFi G4 Doorbell Pro PoE Kit — Ubiquiti product code UVC-G4-Doorbell-Pro-PoE-Kit. Same 160.6mm body as the standalone G4 Doorbell Pro — the kit just adds a PoE adapter + Chime Pro to the box. Dual cam (5MP + 8MP package), 1.8" touchscreen.
  • Body-shared note: The PoE Kit shares the SAME body as the standalone G4 Doorbell Pro — the bracket is interchangeable. Separate listings exist for SEO clarity.
  • Does NOT fit: Original G4 Doorbell, G6 Entry, G6 Pro Entry, or Doorbell Lite.
Don't have it yet? Search the UniFi G4 Doorbell Pro PoE Kit on Amazon →

Bundled Kit: PoE Adapter + Chime Pro Included

If you don't have a PoE switch already, the PoE Kit is the path: doorbell + PoE injector + Chime Pro indoors all in one box. The 15-90° bent-neck pivot is the same bracket that fits the standalone G4 Doorbell Pro — aim both cams perpendicular to the wall on side-wall installs.

Wide Dual-Axis Control (15-90°)

Bent-neck swivel joint — precise aiming across 15° to 90°. Locking set screws hold position permanently.

15-90 degree adjustability diagram for UniFi G4 Doorbell Pro PoE Kit

Need a smaller adjustment? 0-35° Mount for UniFi G4 PoE Kit.

Mount Dimensions & Weight

  • Base Width: 1.8"
  • Base Height: 3.1"
  • Hole Spacing: 2-5/8"
  • Wall Extension at 15°: ~2.0"
  • Wall Extension at 90°: ~3.5"
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit for the G4 Doorbell Pro Body (160.6mm, shared with PoE Kit).
  • Wide 15-90° Pivot Range.
  • RJ45 Pass-Through.
  • Two-Axis Set-Screw Lock.
  • Touchscreen Stays Visible.
  • Outdoor PETG.
  • Universal Base.

Customization & Add-On Options

Installing on the G4 Doorbell Pro PoE Kit

  1. Set Up PoE Adapter Indoors: Plug PoE adapter into power + your network. Plug Chime Pro into a separate outlet.
  2. Tools & Prep: Drill, PH2/PH1 Philips, anchors, level. Pre-terminated CAT5e/CAT6.
  3. Pull Cable: CAT5e/CAT6 from PoE adapter to doorbell location.
  4. Adopt to UniFi Protect: Adopt doorbell + Chime Pro to UniFi Protect.
  5. Plan Aim Angle: Side-wall = 60-90° pivot.
  6. Mount the Base: Pull cable through, vertically, #6 screws.
  7. Attach Bent-Neck Swivel: Route cable, four #4 / PH1 screws.
  8. Set Initial Angle: Adjust through 15-90°.
  9. Connect & Mount Doorbell: Plug RJ45. Use screws PROVIDED WITH THIS MOUNT (preinstalled).
  10. Aim & Lock: UniFi Protect Live View, tilt/pan, tighten set screws.

FAQ

Compatible with G4 PoE Kit?
Yes — UVC-G4-Doorbell-Pro-PoE-Kit. Same body as standalone G4 Doorbell Pro.
15-90° vs 0-35°?
15-90° for side-wall correction.
Chime Pro included?
Yes (in the doorbell box). Bracket only mounts the doorbell.
PoE adapter included?
Yes (in the doorbell box). Mount accommodates the terminated CAT5e/CAT6 RJ45.
Vinyl, Hardie, brick, or stucco?
Yes. Pair with siding adapters or use masonry anchors.
Weatherproof?
Yes. UV-stable PETG, freeze-tolerant.
Hold for years?
Yes. Set-screw lock rated for years.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

Need to Buy Your Doorbell?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases.

Questions?

Standard Color: Black or White. Color Change Request.

Angle Note: 15-90° is approximate.

3D-Printed: Minor variations possible. Made-to-order USA.

Order your 15-90° mount for the UniFi G4 Doorbell Pro PoE Kit today.
