15-90° Adjustable Swivel Mount for Tapo D230S1 Battery Doorbell + Hub Kit | 2K 5MP Removable Battery | Low-Profile Custom-Fit Bracket

$50.00
$40.00
15-90° Adjustable Swivel Mount for the Tapo D230S1 — Removable Battery + Sub-G Hub Kit Made for the Tapo D230S1 Smart Battery Video Doorbell Kit — the 2K 5MP wireless model that ships with a removable 6700mAh battery and a...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

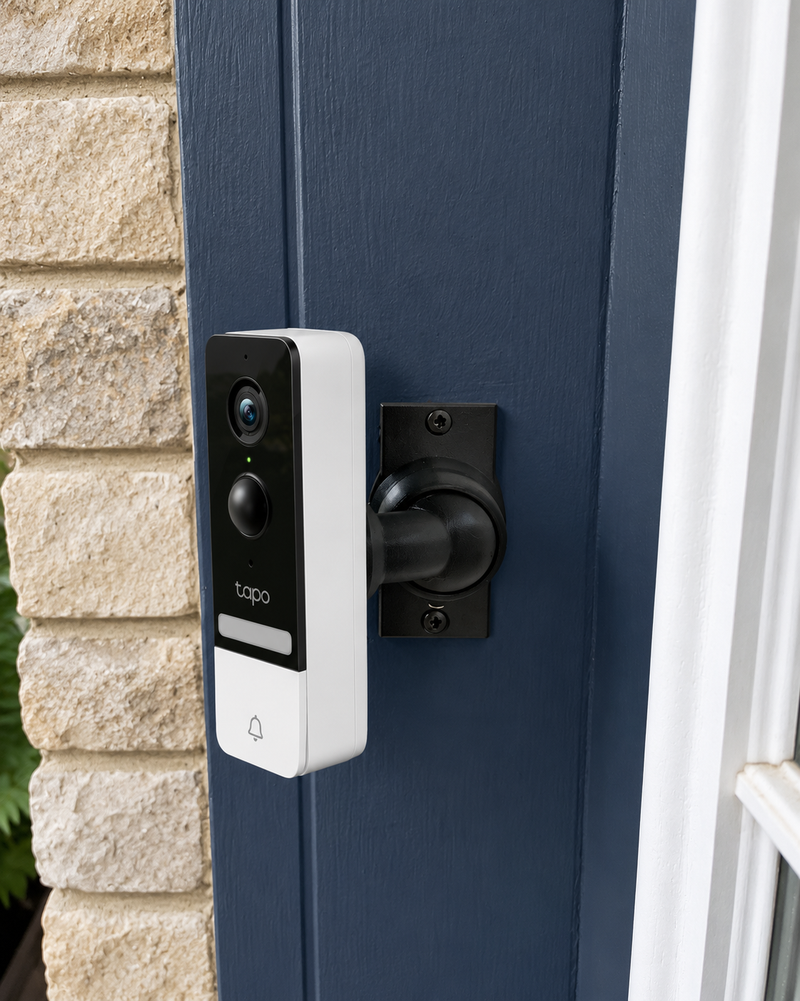

15-90° Adjustable Swivel Mount for the Tapo D230S1 — Removable Battery + Sub-G Hub Kit

Made for the Tapo D230S1 Smart Battery Video Doorbell Kit — the 2K 5MP wireless model that ships with a removable 6700mAh battery and a separate sub-G chime/hub. The bent-neck 15-90° pivot tilts the older D230S1 body perpendicular to the wall so the 4:3 head-to-toe frame catches the porch on side-wall installs.

Bracket is shaped specifically for the D230S1's older body (different from D210/D225/D235) so it sits flush, doesn't block the spotlight, and the rear battery door stays accessible for 10-second swaps. The sub-G hub plugs in indoors. Set-screw locked, made-to-order in the USA, ships matte black or white in UV-stable PETG.

Custom-Fit for the Tapo D230S1 Smart Battery Video Doorbell + Hub Kit

  • This bracket is shaped specifically for the Tapo D230S1 Smart Battery Video Doorbell — Amazon ASIN B0CB1Z5Q1L (sub-G chime/hub included). 2K 5MP, 4:3 head-to-toe aspect, removable 6700mAh battery (~6 months), full-color spotlight, IP64 rating, free AI person detection. Sub-G connection means longer range than Wi-Fi-only doorbells.
  • Does NOT fit: the Tapo D210/D225/D235 (newer body family with integrated battery, USB-C charging) or the Tapo D130 (wired-only). Each Tapo body family has its own dedicated mount listing.
  • Quick Tapo ID: The D230S1 ships in a kit box with TWO devices — the doorbell AND a separate puck-shaped sub-G hub. The doorbell has a removable battery pack accessible from the rear (not USB-C).
Don't have it yet? Get the Tapo D230S1 on Amazon →

Sub-G Hub + Removable Battery — Engineered Differently

The D230S1 was Tapo's first serious wireless doorbell, and it has things the newer Tapo battery doorbells don't: a removable battery pack for 10-second cold swaps, and a sub-G radio link to its bundled hub instead of Wi-Fi to the cloud. The hub bridges to your home network — sub-G goes through walls in a way Wi-Fi-only doorbells can't match.

The 4:3 aspect with 160° diagonal captures both faces and the doormat in one frame. But on a side-wall install that frame ends up watching siding. The 15-90° bent-neck pivot tilts the doorbell perpendicular to the wall so the head-to-toe frame stays on target, and the rear battery door stays accessible — pull a charged spare in 10 seconds, slot it in, walk away.

Wide Dual-Axis Control (15-90°) — Tuned for the Tapo D230S1

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc. Excels at angles greater than 45°. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Tapo D230S1
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Tapo D230S1.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit for the D230S1 Older Body.
  • Wide 15-90° Pivot Range — perpendicular tilt for side-wall installs.
  • Removable-Battery Friendly — rear battery door stays reachable, 10-second swaps.
  • Two-Axis Set-Screw Lock — vertical tilt + horizontal pan, both lock independently.
  • Hub Sits Indoors — bracket only mounts the doorbell.
  • Sub-G Range Friendly — PETG is RF-transparent.
  • Outdoor-Rated PETG — matches D230S1 IP64.
  • Spare Battery Compatible — keep a charged spare on USB-C indoors for zero-downtime.
  • Siding Compatible — flat or lapped up to 1.8" wide.
  • Universal Base — switch doorbells later for ~$10 adapter.
  • Complete Kit — bent-neck base, custom adapter, set screws, mounting screws.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Tapo D230S1

  1. Set Up the Hub Indoors First: Plug the sub-G chime/hub indoors near the front door (within ~30ft of mount location). Pair to 2.4GHz Wi-Fi via the Tapo app. The hub IS the chime AND the sub-G bridge.
    The hub is required — the D230S1 doesn't talk directly to Wi-Fi.
  2. Charge the Removable Battery: Pull, charge to full via USB-C (~7 hours), reinstall. (Tip: order a spare for zero-downtime swaps.)
  3. Tools & Prep: Drill, PH2 (#6 base), PH1 (#4 bracket / set / doorbell screws — preinstalled), wall anchors, level. No wiring required.
  4. Plan the Aim Angle: 4:3 head-to-toe at 160°: TOP half on faces, BOTTOM on doormat. Side-wall = 60-90° pivot.
  5. Mount the Base: Position vertically, secure with #6 screws (PH2 driver), anchors as needed.
  6. Attach the Bent-Neck Swivel Bracket: Four #4 / PH1 screws.
  7. Set Initial Angle: Adjust through 15-90°. Lightly tighten one or two set screws.
  8. Pair the Doorbell to the Hub: Add via Tapo app (sub-G discovery). Test press to confirm hub chimes.
  9. Snap the Doorbell In: Use the screws PROVIDED WITH THIS MOUNT (preinstalled). Do NOT use Tapo's stock back plate.
  10. Aim & Lock: Live View → tilt and pan through 15-90° until 4:3 frame covers porch top-to-bottom. Fully tighten set screws.

Cold-weather tip: removable battery is a real advantage in winter — pull and charge indoors instead of bringing the whole camera inside. Keep a spare on a USB-C charger for zero-downtime.

FAQ — Tapo D230S1 15-90° Mount

Is this mount compatible with the Tapo D230S1?
Yes — custom-shaped for the D230S1 (B0CB1Z5Q1L). Will not fit the newer D210/D225/D235 (different body) or the D130.
How is this 15-90° mount different from the 0-35°?
15-90° for substantial side-wall correction. 0-35° mount for fine-tuning on flat-wall installs.
Can I swap the battery without removing the doorbell?
Yes — the rear battery door stays accessible. Pop cover, pull battery, slot in charged spare. 10 seconds, no unmounting.
Does the bracket interfere with the sub-G hub connection?
No. PETG is RF-transparent — no metal, no shielding.
Where does the hub go?
Bracket only mounts the doorbell. The included sub-G hub plugs into a standard outlet indoors near your door (within ~30ft). Hub doubles as the chime.
Can I install on vinyl, Hardie, brick, or stucco?
Yes. Pair with our Vinyl Siding Adapter, Hardie Siding Mount, or use masonry anchors.
Is the mount weatherproof?
Yes. UV-stable PETG, freeze-tolerant. Matches the D230S1's IP64 rating.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures. We'll confirm the exact product/variant.
  • If the part doesn't fit: Send pictures. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload during checkout, OR text/email to 833-326-6868 / shop@doorbellmount.com.

This guarantee covers fitment issues only.

Need to Buy Your Tapo Doorbell?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help?

Standard Color: Ships in Black or White. Color Change Request.

Angle Note: 15-90° represents the approximate adjustment range.

3D-Printed Parts: Minor cosmetic variations may be present. Each mount is printed-to-order in our USA shop.

Add the right side-wall mount for your Tapo D230S1 — lock the 4:3 head-to-toe frame on target, keep the removable battery accessible.
