15-90° Adjustable Swivel Mount for Tapo D130 Wired Doorbell | 2K 180° Head-to-Toe | Dual-Axis Aim & Lock

$50.00
$40.00
15-90° Side-Wall Pivot Mount for the Tapo D130 Wired Doorbell — 2K 180° Head-to-Toe Permanence Engineered for the Tapo D130 Smart Wired Video Doorbell — TP-Link's hardwired flagship with 2K 5MP resolution, 180° diagonal head-to-toe view (172° H × 144°...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Side-Wall Pivot Mount for the Tapo D130 Wired Doorbell — 2K 180° Head-to-Toe Permanence

Engineered for the Tapo D130 Smart Wired Video Doorbell — TP-Link's hardwired flagship with 2K 5MP resolution, 180° diagonal head-to-toe view (172° H × 144° V), color night vision spotlight, IP65 rating, and free package detection. The bent-neck 15-90° pivot tilts the wired body perpendicular to the wall so the wide head-to-toe frame catches the porch instead of siding. Set-screw locked, made-to-order in the USA, ships matte black or white in UV-stable PETG.

Wired doorbells are the long-haul play — no batteries to charge, 24/7 recording to microSD, no monthly fee. The 15-90° pivot is the sidekick: aim once, lock with set screws, and the install holds for years. The wire pass-through is sized for standard 8-24V doorbell wires.

Custom-Fit for the Tapo D130 Smart Wired Video Doorbell

  • This bracket is shaped specifically for the Tapo D130 Smart Wired Video Doorbell — Amazon ASIN B0CQQZZXH9. 2K 5MP resolution, 180° diagonal field of view (172° H × 144° V) for true head-to-toe coverage, color night vision with built-in spotlight, IP65 rating, person/vehicle/package detection (free, no subscription), two-way audio, microSD up to 512GB, wired-only operation (8-24V AC chime power, no battery). Includes a wireless chime in the box.
  • Does NOT fit: the Tapo D210, D225, or D235 (different body family with USB-C charging) or the Tapo D230S1 (older battery + sub-G hub kit). Each Tapo body family has its own dedicated mount listing. Also does not fit Ring, Nest, Wyze, Eufy, Aqara, or any non-Tapo brand.
  • Quick Tapo ID: The D130 is the only Tapo doorbell that's wired-only (no battery compartment) AND has the wide 180° head-to-toe lens with package detection. If yours has a USB-C charging port on the side, it's a D210/D225/D235 — different mount. If it ships with a removable battery and a separate sub-G hub puck, it's a D230S1.
Don't have the doorbell yet? Get the Tapo D130 Smart Wired Video Doorbell on Amazon →

Lock the Wired Install for the Long Haul

Wired doorbells are bought for the wrong reasons most of the time. People want "the cheap one" or "the one with the good resolution." The actual reason to wire is permanence: no battery degradation, no winter charging trips, no "the doorbell is offline" notifications at 6am. The D130 delivers 2K 5MP head-to-toe that doesn't quit.

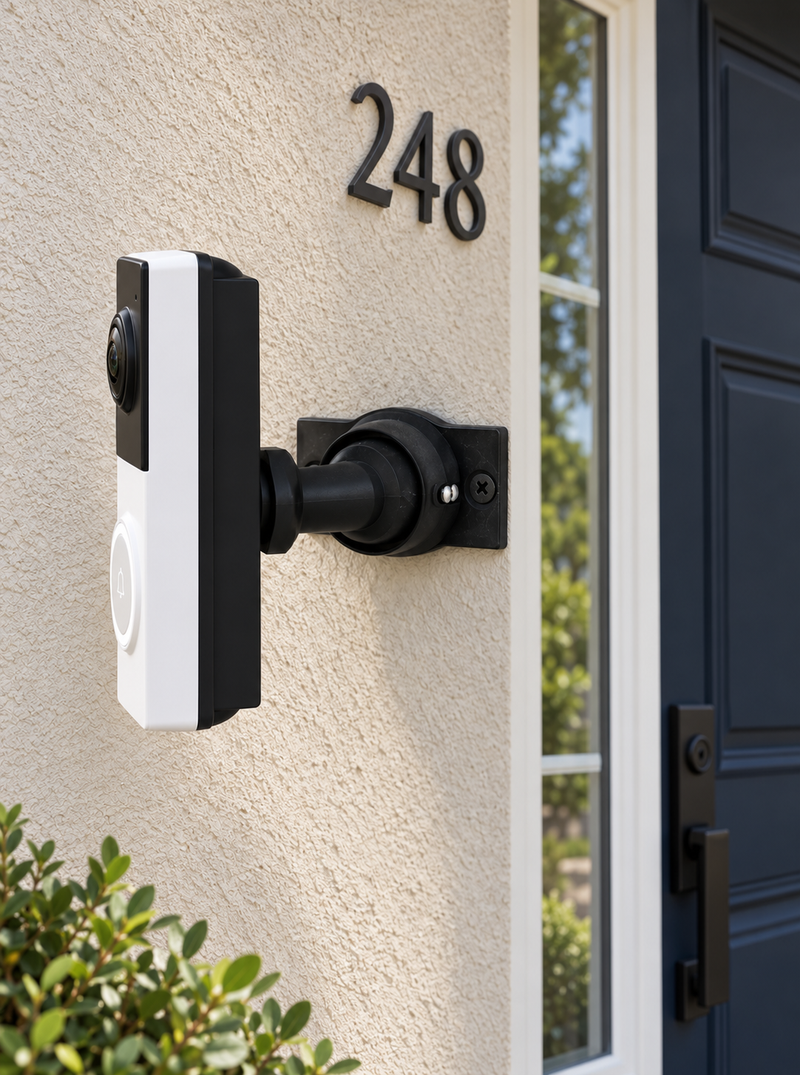

That permanence is undermined the moment the camera ends up watching siding instead of visitors. A side-wall install on a typical American front porch puts the doorbell on a wall offset from the door — the 180° lens then includes a lot of brick. The 15-90° bent-neck pivot tilts the body up to perpendicular, locks both axes with set screws, and never moves again. Match the lifetime of the wired install with a mount built for the same calendar.

Wide Dual-Axis Control (15-90°) — Tuned for the Tapo D130

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Tapo D130 Smart Wired Video Doorbell
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Tapo D130 for fine-tuning on flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom-Fit for the Tapo D130 Body: Pre-shaped pocket cradles the rectangular wired body without obstructing the spotlight or speaker.
  • Wide 15-90° Pivot Range: Tilts the doorbell perpendicular to the wall — rescues side-wall installs from staring at brick or trim.
  • Two-Axis Set-Screw Lock: Vertical tilt + horizontal pan; both axes lock independently for fit-and-forget aim.
  • Wire Pass-Through: Sized for 8-24V AC standard doorbell wires — clean, hidden route through the bent-neck joint.
  • Package-Detection Friendly: The 180° head-to-toe frame catches the doormat at the bottom edge once you tilt the camera correctly with the 15-90° pivot.
  • microSD Slot Stays Reachable: Designed so you can pull and swap the 512GB microSD card without unmounting.
  • Outdoor-Rated PETG: Matches the D130's IP65 rating — UV-stable, freeze-tolerant.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8" wide.
  • Universal Base: Future-proof — switch to a D225 or other Tapo later for a ~$10 adapter swap.
  • Complete Kit: Bent-neck pivot base, custom Tapo D130 adapter, set screws, mounting screws + anchors.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Tapo D130

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket / set screws / doorbell screws — provided preinstalled to the bracket), wall anchors if needed, level, and a multimeter for the wiring check.
    Wired-only doorbell: turn the breaker OFF first. Verify dead with a tester at the existing doorbell wires before pulling them through the mount.
  2. Verify the Transformer: Confirm your existing chime transformer is 8-24V AC. The D130 prefers 16-24V AC for best spotlight performance — if your transformer is on the lower end (8-12V) the spotlight may dim during recording.
  3. Plan the Aim Angle: Stand where visitors approach. The D130's 180° head-to-toe needs the TOP of the frame on visitor face height and the BOTTOM on the doormat for package detection to work. On a side-wall install, that means a 60-90° pivot — pre-visualize before drilling.
  4. Mount the Base: Pull the doorbell wires through the hole in the swivel base, position vertically on your siding/trim, attach using #6 screws (PH2 driver) with anchors as needed.
    Drill pilot holes for hard trim wood. Don't overtighten base screws.
  5. Attach the Bent-Neck Swivel Bracket: Route the wires through the swivel joint. Align onto the base and attach using four center #4 / PH1 screws.
  6. Set Initial Angle: Adjust the bent-neck through the 15-90° range toward visitor approach. Lightly tighten one or two set screws — final tightening comes after Live View confirmation.
  7. Connect & Mount the D130: Connect the two doorbell-circuit wires to the D130's terminals (polarity doesn't matter for AC). Insert the microSD card if using local storage. Snap onto the custom Tapo D130 bracket using the screws PROVIDED WITH THIS MOUNT (these come preinstalled in the bracket). Do NOT use Tapo's stock metal back plate.
    Use the correct PH1 driver for provided screws. Tighten snugly, do not overtighten.
  8. Pair via Tapo App: Restore power. Open the Tapo app, scan the QR code, connect to 2.4GHz Wi-Fi. Pair the included wireless chime. Configure motion zones / package detection.
  9. Aim Using Live View & Finalize Set Screws: Live View → tilt and pan the bent-neck through the 15-90° range until the 180° head-to-toe frame covers porch top-to-bottom (visitor face top, packages bottom). Fully tighten all set screws.
    Hand-tight on set screws. Over-tightening can crack the swivel joint.

Power tip: TP-Link recommends 16-24V AC at 10VA minimum for best low-light performance. If your existing transformer is the older 8-12V type and the D130's spotlight dims during recording, a $20 transformer upgrade fixes it. The 15-90° pivot is set-and-forget — it'll outlast both your D130 and any future replacement.

FAQ — Tapo D130 15-90° Mount

Is this mount compatible with the Tapo D130?
Yes — custom-shaped for the Tapo D130 wired doorbell (B0CQQZZXH9). Will not fit the D210/D225/D235 (different body family) or the D230S1 (older battery + hub kit).
How is this 15-90° mount different from the 0-35°?
The 15-90° is for substantial side-wall correction — perpendicular installs where the doorbell sits on a wall offset from the door. The 0-35° mount is for fine-tuning aim on flat-wall installs.
Does the bracket support the D130's package detection?
Yes — the 15-90° pivot is exactly what makes package detection work on a side-wall install. With the bracket aimed correctly, the bottom edge of the 180° frame covers the doormat zone and the AI can detect packages.
Can I install on vinyl siding, Hardie, brick, or stucco?
Yes. Pair with our Vinyl Siding Adapter for vinyl, the Hardie Siding Mount for cement-board, or use masonry anchors for brick/stucco.
Does the microSD slot stay accessible?
Yes. Designed so you can pull and swap the microSD card from the rear of the doorbell without removing it from the bracket. The D130 supports up to 512GB.
What transformer voltage does the D130 need?
8-24V AC at 10VA minimum. TP-Link recommends 16-24V AC for best spotlight performance — lower voltages may cause the spotlight to dim during recording. The mount itself is voltage-agnostic; this is a doorbell-only consideration.
Is the mount weatherproof?
Yes. UV-stable PETG, freeze-tolerant, sealed against rain. Matches the D130's IP65 rating.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Need to Buy Your Tapo Doorbell?

Quick affiliate links to the Tapo doorbell lineup on Amazon:

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you. Pricing is controlled by Amazon and may change.

Questions? Need Help?

Standard Color: Ships in Black or White (Tapo doorbells ship in white). For other colors, use the Color Change Request.

Angle Note: The term “15-90°” represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance. Each mount is printed-to-order in our USA shop.

Get the right side-wall mount for your Tapo D130 — permanent install, permanent aim, permanent peace of mind.
