15-90° Adjustable Swivel Mount for Reolink Video Doorbell WiFi (Plug-In) | 2K 4:3 180° 5GHz | Wide-Angle Tilt & Pivot

$50.00
$40.00
Custom 15-90° Pivot Mount for the Reolink Video Doorbell WiFi (Plug-In) — Wired 2K with 5GHz Dual-Band Built for the Reolink Video Doorbell WiFi (Wired Plug-In) — the Wi-Fi version of Reolink's wired doorbell, with 2K (5MP) resolution, 4:3 aspect,...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

Custom 15-90° Pivot Mount for the Reolink Video Doorbell WiFi (Plug-In) — Wired 2K with 5GHz Dual-Band

Built for the Reolink Video Doorbell WiFi (Wired Plug-In) — the Wi-Fi version of Reolink's wired doorbell, with 2K (5MP) resolution, 4:3 aspect, 180° diagonal view, and dual-band 2.4/5GHz Wi-Fi (5GHz on a doorbell is rare and a real upgrade for crowded networks). The bent-neck 15-90° pivot tilts the body perpendicular to the wall so the wide-angle frame catches the porch instead of siding. Set-screw locked, made-to-order in the USA, ships matte black or white in UV-stable PETG.

The body shape is similar to the PoE version, but this bracket is sized for the wired-WiFi pass-through (regular low-voltage doorbell wires, no RJ45 needed). Pair with the included Reolink Chime indoors and you have a complete wired-Wi-Fi install in about 30 minutes.

Custom-Fit for the Reolink Video Doorbell WiFi (Wired Plug-In)

  • This bracket is shaped specifically for the Reolink Video Doorbell WiFi (Wired Plug-In) — Amazon ASIN B0B7S3JSG7. 2K (5MP) resolution, 4:3 aspect, 180° diagonal FOV, color night vision, dual-band 2.4/5GHz Wi-Fi (5GHz is rare on doorbells — a real plus for crowded networks), person/vehicle/package detection, microSD up to 256GB, two-way audio, no monthly fee, 12-24V AC/DC chime power. Includes Reolink Chime in the box.
  • Body-shared note: The PoE and WiFi versions share a similar body. This bracket is sized for the WiFi version with a standard low-voltage wire pass-through. The PoE version (which needs RJ45 clearance) has its own dedicated 15-90° listing.
  • Does NOT fit: the Reolink Video Doorbell Battery (1:1 head-to-toe body, removable battery compartment) — that has its own dedicated mount. Also does not fit Ring, Nest, Wyze, Eufy, Aqara, Tapo, Arlo, ecobee, or any non-Reolink brand.
  • Quick Reolink ID: The WiFi (Plug-In) connects via 2.4/5GHz Wi-Fi and runs on standard 12-24V AC doorbell wires (no RJ45 jack on the back). If yours has an Ethernet port, that's the PoE version. If yours has a battery compartment, that's the Battery model.
Don't have the doorbell yet? Get the Reolink Video Doorbell WiFi (Wired Plug-In) on Amazon →

5GHz on a Doorbell + Side-Wall Aim That Actually Works

Most doorbells force you onto 2.4GHz only. That's fine if your network is empty — but in a typical home with 20+ devices on the 2.4GHz band, the doorbell ends up the slowest device on the network. The Reolink WiFi puts 5GHz on the table, and Live View startup goes from "a few seconds and a stutter" to "instant." If your router supports 5GHz at the porch wall, this is the upgrade.

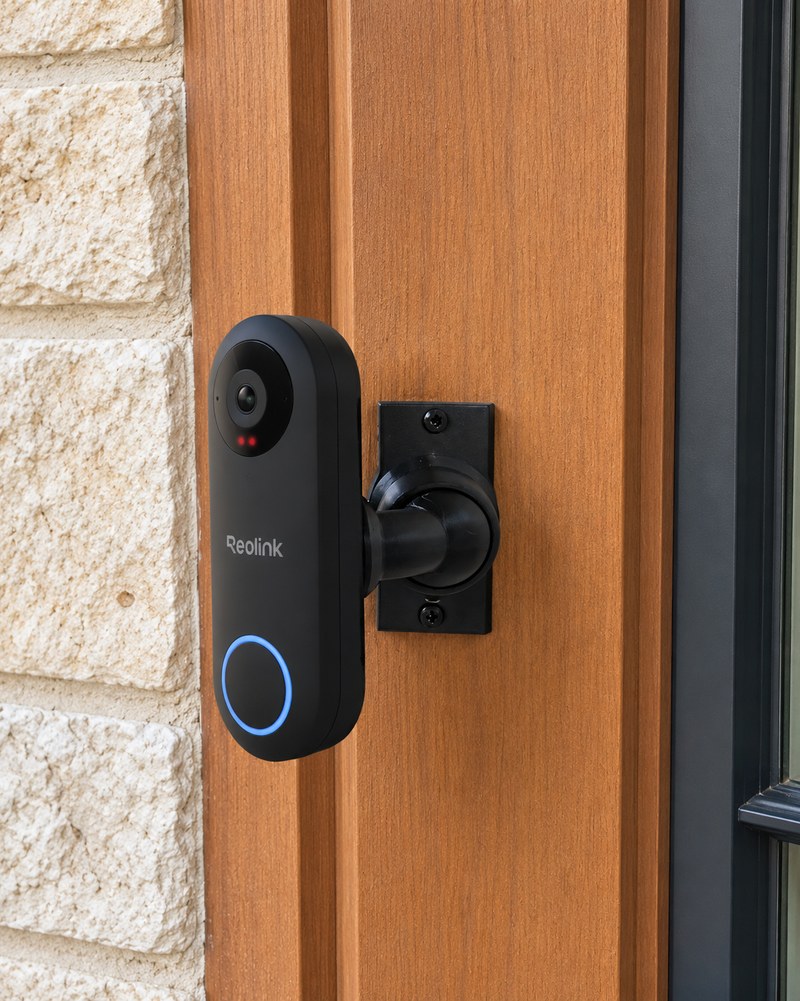

None of that matters if the camera ends up watching your siding. The 15-90° bent-neck pivot tilts the wired body perpendicular to the wall so the 180° diagonal frame covers the porch path, the visitor's face, and the doormat — all in one shot. Set the angle, lock the set screws, walk away.

Wide Dual-Axis Control (15-90°) — Tuned for the Reolink Video Doorbell WiFi

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Reolink Video Doorbell WiFi (Wired Plug-In)
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Reolink Video Doorbell WiFi for fine-tuning on flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom-Fit for the Reolink WiFi Body: Pre-shaped pocket cradles the wired body without obstructing the lens or speaker.
  • Wide 15-90° Pivot Range: Tilts the doorbell perpendicular to the wall — rescues side-wall installs from staring at siding.
  • Standard Low-Voltage Wire Pass: Sized for 12-24V AC/DC doorbell wires — clean route through the bent-neck joint.
  • Two-Axis Set-Screw Lock: Vertical tilt + horizontal pan; both axes lock independently.
  • microSD Slot Stays Accessible: Designed so you can pull/swap the microSD card from the rear without unmounting.
  • Outdoor-Rated PETG: UV-stable, freeze-tolerant — matches the doorbell's outdoor rating.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8" wide.
  • 5GHz Friendly: No metal in the bracket, no shielding effect on Wi-Fi signal — PETG is RF-transparent.
  • Universal Base: Future-proof — switch doorbells later for a ~$10 adapter swap.
  • Complete Kit: Bent-neck pivot base, custom Reolink WiFi adapter, set screws, mounting screws + anchors.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Reolink Video Doorbell WiFi

  1. Verify Wiring Voltage: Confirm your existing doorbell circuit is 12-24V AC or DC. The Reolink WiFi accepts a wider voltage range than most — but verify with a meter or your transformer label before powering up.
  2. Power Down: Turn the breaker OFF at the chime circuit. Verify with a tester at the existing doorbell wires before pulling them through the mount.
    Always confirm power is off with a tester. Two strands of doorbell wire don't always look like 12-24V AC at a glance.
  3. Pair Indoors First on 5GHz: Plug the Reolink Chime indoors and add the doorbell to the Reolink app on your bench. Connect to 5GHz Wi-Fi if available (check signal at the porch wall — if it's weak, fall back to 2.4GHz).
  4. Plan the Aim Angle: Stand where visitors approach. Visualize the angle from doorbell to that spot. 15-90° gives a wide range — commit to roughly the right angle before drilling pilot holes.
  5. Mount the Base: Pull the doorbell wires through the hole in the swivel base, position vertically on your siding/trim, secure with #6 screws (PH2 driver). Anchors as needed.
    Drill pilot holes if mounting into hard trim wood. Don't overtighten base screws.
  6. Attach the Bent-Neck Swivel Bracket: Route the wires through the swivel center, attach to the base with four #4 / PH1 screws.
  7. Set Initial Angle: Adjust the bent-neck through the 15-90° range toward visitor approach. Lightly tighten one or two set screws — final tightening comes after Live View.
  8. Connect & Mount the Doorbell: Connect the two doorbell-circuit wires to the Reolink's screw terminals (polarity doesn't matter for AC). Snap onto the custom Reolink WiFi bracket using the screws PROVIDED WITH THIS MOUNT (these come preinstalled). Do NOT use Reolink's stock back plate.
    Use the correct PH1 driver for provided screws. Tighten snugly, do not overtighten.
  9. Aim Using Live View & Finalize Set Screws: Restore power. Open the Reolink app → Live View → tilt and pan the bent-neck through the 15-90° range until the 4:3 frame covers porch top-to-bottom and faces are centered. Fully tighten all set screws.
    Hand-tight on set screws. Over-tightening can crack the swivel joint.

5GHz tip: even if your phone connects to 5GHz, doorbells often fall back to 2.4GHz at the back wall where signal is weaker. Test 5GHz signal strength at the porch wall before committing — if it's marginal, 2.4GHz with a stronger signal beats 5GHz with a weak one. PETG is RF-transparent so the bracket itself doesn't shield the antenna.

FAQ — Reolink Video Doorbell WiFi 15-90° Mount

Is this mount compatible with the Reolink Video Doorbell WiFi (Plug-In)?
Yes — custom-shaped for the Reolink Video Doorbell WiFi (B0B7S3JSG7). Will not fit the PoE version (separate listing) or the Battery model (different body).
How is this 15-90° different from the 0-35°?
The 15-90° is for side-wall installs where the doorbell sits perpendicular to the door. The 0-35° mount is for fine-tuning aim on flat-wall installs.
Does the bracket interfere with 5GHz Wi-Fi signal?
No. PETG is RF-transparent — no metal, no shielding effect.
Can I install on vinyl siding, Hardie, brick, or stucco?
Yes. Pair with our Vinyl Siding Adapter, the Hardie Siding Mount, or use masonry anchors for brick/stucco.
Does the microSD slot stay accessible?
Yes. Designed so you can pull and swap the microSD card from the rear of the doorbell without removing it from the bracket.
Can I switch from this WiFi version to the PoE version later?
Order a Replacement Bracket for the PoE adapter — the swivel base stays on the wall.
Is the mount weatherproof?
Yes. UV-stable PETG, freeze-tolerant, sealed against rain — 4+ year real-world track record.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Need to Buy Your Reolink Doorbell?

Quick affiliate links to Reolink doorbells on Amazon:

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you. Pricing is controlled by Amazon and may change.

Questions? Need Help?

Standard Color: Ships in Black or White. For other colors, use the Color Change Request.

Angle Note: The term “15-90°” represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance. Each mount is printed-to-order in our USA shop.

Add the right pivot mount for your Reolink WiFi today — lock the 5GHz dual-band 2K aim perpendicular to the wall.
