15-90° Adjustable Swivel Mount for Reolink Battery Video Doorbell | 2K 1:1 Head-to-Toe 150°x150° | Quick-Release Friendly Pivot

$50.00
$40.00
15-90° Side-Wall Pivot Mount for the Reolink Battery Video Doorbell — 1:1 Head-to-Toe with 5-Month Battery Designed for the Reolink Battery Video Doorbell — the 2K wireless model with the unique 1:1 head-to-toe view (150° H × 150° V ×...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

15-90° Side-Wall Pivot Mount for the Reolink Battery Video Doorbell — 1:1 Head-to-Toe with 5-Month Battery

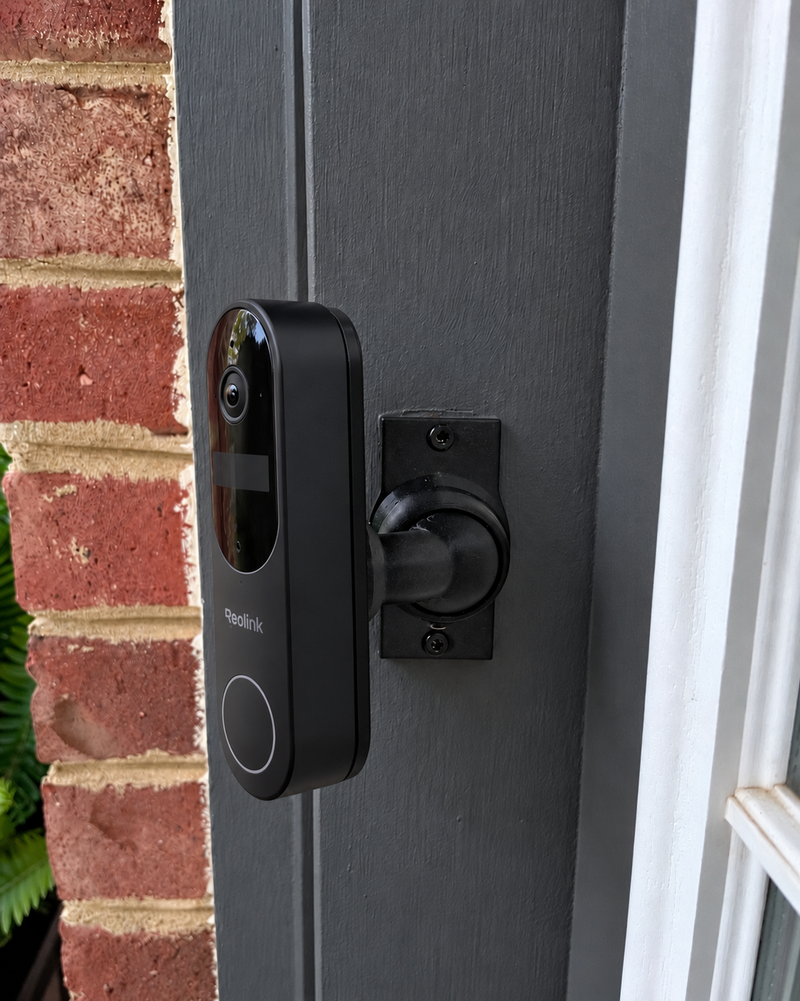

Designed for the Reolink Battery Video Doorbell — the 2K wireless model with the unique 1:1 head-to-toe view (150° H × 150° V × 180° D), 5-month battery life on a single charge, and dual-band 2.4/5GHz Wi-Fi. The bent-neck 15-90° pivot tilts the battery body perpendicular to the wall so both the visitor's face and packages on the doormat fit in one frame, even on a side-wall install.

The bracket is shaped specifically for the Battery body (different from the wired PoE/WiFi models) so the rear battery compartment door stays accessible — you pull and recharge the battery twice a year without unmounting the doorbell. Set-screw locked, made-to-order in the USA, ships matte black or white in UV-stable PETG.

Custom-Fit for the Reolink Battery Video Doorbell

  • This bracket is shaped specifically for the Reolink Battery Video Doorbell — Amazon ASIN B0CYGVPLLT (also part of the Home Hub Bundle B0CYGRZ34J). 2K (5MP) resolution, 1:1 head-to-toe aspect, 150° H × 150° V × 180° D field of view, color night vision, 5-month battery life per charge, dual-band 2.4/5GHz Wi-Fi, person/vehicle/package detection, two-way talk, microSD local storage, no monthly fee.
  • Does NOT fit: the Reolink Video Doorbell PoE or the WiFi Plug-In (different body, 4:3 aspect, no battery compartment) — each has its own dedicated 15-90° mount listing. Also does not fit Ring, Nest, Wyze, Eufy, Aqara, Tapo, Arlo, ecobee, or any non-Reolink brand.
  • Important — chime not included with standalone: The standalone Battery doorbell does NOT ship with a chime. You'll need a Reolink Chime, the Reolink Home Hub (which doubles as a chime + local storage), or rely on phone notifications. Plan this BEFORE mounting.
  • Quick Reolink ID: The Battery model has a removable battery pack accessible from the back, and the box specifically advertises 1:1 head-to-toe view and 5-month battery. If yours is wired (Ethernet OR doorbell wires) with no battery compartment, that's the PoE or WiFi model — different listing.
Don't have the doorbell yet? Get the Reolink Battery Video Doorbell on Amazon →

1:1 Head-to-Toe Means Both Face AND Package — Lock That Frame On Target

The Reolink Battery doorbell is one of the only battery models that solves the 4:3 vs 16:9 problem most battery doorbells fail: you can't see both the visitor's face AND a package on the doormat without cropping one or the other. The 1:1 aspect at 150° × 150° catches both in one frame, on battery, with no wires required.

That advantage falls apart on a side-wall install, where the head-to-toe frame ends up watching siding instead of the doormat. The 15-90° bent-neck pivot tilts the entire body perpendicular to the wall so the 1:1 frame stays on target. The bracket also leaves the rear battery compartment accessible — pull the battery to charge it every 5 months, slot it back in, and the angle holds for years thanks to the dual set-screw lock.

Wide Dual-Axis Control (15-90°) — Tuned for the Reolink Battery Video Doorbell

Bent-neck swivel joint — precise aiming control across a 15° to 90° arc relative to the wall. Excels at angles greater than 45°. Fine-tuning works horizontally and vertically. Locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Reolink Battery Video Doorbell
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Need a smaller adjustment? See our 0-35° Swivel Mount for the Reolink Battery Video Doorbell for fine-tuning on flat-wall installs.

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom-Fit for the Battery Body: Pre-shaped pocket cradles the Battery body without obstructing the 1:1 head-to-toe lens or speaker.
  • Battery Stays Removable Without Unmounting: Designed so you can pull the rechargeable battery from the back for charging without taking the doorbell off the wall.
  • Wide 15-90° Pivot Range: Tilts the body perpendicular to the wall — both the face zone (top of frame) and package zone (bottom) stay covered.
  • Two-Axis Set-Screw Lock: Vertical tilt + horizontal pan; both axes lock independently. Holds for years, not months.
  • Optional Wire Pass-Through for Trickle-Charge: If you're hardwiring for trickle-charge (Reolink supports a 12-24V AC trickle option), wires route through the joint cleanly.
  • Battery-First Friendly: No wiring required — install in 15-20 minutes.
  • Outdoor-Rated PETG: UV-stable, freeze-tolerant.
  • 5GHz Friendly: PETG is RF-transparent — no shielding effect on dual-band Wi-Fi.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8" wide.
  • Universal Base: Future-proof — switch doorbells later for a ~$10 adapter swap.

Customization & Add-On Options

Installing Your 15-90° Side-Wall Mount on the Reolink Battery Video Doorbell

  1. Tools & Prep: Drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket / set screws / doorbell screws — provided preinstalled to the bracket), wall anchors, level. USB-C charger for the battery.
    Battery-only doorbell — no transformer required for basic install. If you're hardwiring for trickle-charge: turn breaker OFF first.
  2. Get a Chime First: The standalone Battery doorbell does NOT include a chime in the box. You'll need a Reolink Chime, the Reolink Home Hub (which doubles as a chime), or rely on phone notifications. Plan this BEFORE mounting.
  3. Charge the Battery: Charge the included battery pack to 100% via USB-C (~6 hours from empty). Pair to the Reolink app indoors before mounting — easier.
  4. Plan the Aim Angle: Stand where visitors approach. The 1:1 head-to-toe frame is special — you want the TOP half on the visitor's face zone, the BOTTOM half on the doormat / package zone. On a side-wall install you'll need a 60-90° pivot — pre-visualize before drilling.
  5. Mount the Base: Position the bent-neck base vertically on your siding/trim. Screw in with #6 screws (PH2 driver), anchors as needed.
    Drill pilot holes if mounting into hard trim wood.
  6. Attach the Bent-Neck Swivel Bracket: Align the swivel onto the base and attach using four center #4 / PH1 screws. (Skip wire pass-through unless you're hardwiring for trickle-charge.)
  7. Set Initial Angle: Adjust the bent-neck through the 15-90° range so the doorbell points where visitors approach. Lightly tighten one or two set screws — final tightening after Live View.
  8. Snap the Doorbell Into the Bracket: Insert the charged battery into the rear compartment of the doorbell. Snap onto the custom Reolink Battery bracket using the screws PROVIDED WITH THIS MOUNT (these come preinstalled). Do NOT use Reolink's stock back plate.
    Use the correct PH1 driver for provided screws. Tighten snugly, do not overtighten.
  9. Pair via Reolink App: Connect to 5GHz Wi-Fi if available (better than 2.4GHz for 2K streaming when signal allows). Set motion zones, package detection.
  10. Aim Using Live View & Finalize Set Screws: Open the Reolink app → Live View → tilt and pan the bent-neck through the 15-90° range until the 1:1 frame covers porch top-to-bottom (visitor face top, package zone bottom). Fully tighten all set screws.
    Hand-tight on set screws. Over-tightening can crack the joint.

Home Hub option: if you bought the bundle (B0CYGRZ34J), the Home Hub also gives you up-to-1TB local storage of clips with end-to-end encryption — great for families wanting subscription-free 24/7 cloud-style backup without paying a monthly fee. Battery rhythm: charge twice a year (5-month battery life leaves a small buffer).

FAQ — Reolink Battery Video Doorbell 15-90° Mount

Is this mount compatible with the Reolink Battery Video Doorbell?
Yes — custom-shaped for the Reolink Battery Video Doorbell (B0CYGVPLLT, also part of the Home Hub Bundle B0CYGRZ34J). Will not fit the PoE or WiFi Plug-In wired models (different body, 4:3 aspect).
How is this 15-90° mount different from the 0-35°?
The 15-90° is for substantial side-wall correction. The 0-35° mount is for fine-tuning aim on flat-wall installs.
Can I pull and recharge the battery without removing the doorbell?
Yes — the rear battery compartment door stays accessible. Pull, charge via USB-C, slot back in.
Does the standalone doorbell come with a chime?
No — the standalone Battery doorbell does NOT include a chime. The Home Hub Bundle (B0CYGRZ34J) includes both.
Will the swivel hold its angle for 5+ months between charges?
Yes — 4+ year real-world track record without readjustment.
Does the bracket interfere with Wi-Fi signal?
No. PETG is RF-transparent.
Can I install on vinyl siding, Hardie, brick, or stucco?
Yes. Pair with our Vinyl Siding Adapter or use masonry anchors for brick/stucco.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Need to Buy Your Reolink Doorbell?

Quick affiliate links to Reolink doorbells on Amazon:

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you. Pricing is controlled by Amazon and may change.

Questions? Need Help?

Standard Color: Ships in Black or White. For other colors, use the Color Change Request.

Angle Note: The term “15-90°” represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance. Each mount is printed-to-order in our USA shop.

Pick up the right side-wall mount for your Reolink Battery doorbell — keep the 1:1 head-to-toe lens locked on target through every battery cycle.
