15-90° Adjustable Swivel Mount for Eufy Video Doorbell E340 (2024) | 2K Dual Cam | Bent-Neck Pivot Bracket

$50.00
$40.00
Custom 15-90° Pivot Mount for the Eufy Video Doorbell E340 (2024) — 2K Dual Cam Custom-Fit for the Eufy Video Doorbell E340 (and All Eufy Bodies) Custom-shaped for the Eufy E340 dual-cam body — Amazon ASIN B0CD7NT4Y9. Eufy's 2024 wired-or-battery...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

Custom 15-90° Pivot Mount for the Eufy Video Doorbell E340 (2024) — 2K Dual Cam

Custom-Fit for the Eufy Video Doorbell E340 (and All Eufy Bodies)

  • Custom-shaped for the Eufy E340 dual-cam body — Amazon ASIN B0CD7NT4Y9. Eufy's 2024 wired-or-battery flagship with both a head-on lens and a downward package camera.
  • Also fits all other current Eufy doorbells: Eufy designed the lineup with a consistent mount footprint, so this same bracket also fits the S330 (wired dual cam), C31 (2K wired/battery), C30 (2K battery 165°), S220 (2K battery 180-day), C210 (1080p budget battery), and the original Eufy 2K Wired / 2K Battery / Dual cam (HomeBase) models.
  • Does NOT fit: any non-Eufy brand. Ring, Nest, Wyze, Blink, Arlo, Aqara, Tapo all use different body geometry — each has its own dedicated mount listing on our store.
  • Switching Eufy models later? The base stays on the wall — just keep using this same bracket. No purchase needed.
Don't have the doorbell yet? Get the Eufy Video Doorbell E340 on Amazon →

Side-Wall Aim That Keeps Both Cameras Pointing Right

The Eufy E340's selling point is two cameras in one body — a head-on lens for visitors and a downward lens for porch packages. That only works when the mount points the doorbell at the actual doorstep. On a side wall (porch column, perpendicular trim, recessed entryway), the stock mount aims both cameras at siding instead of your visitor and the package zone.

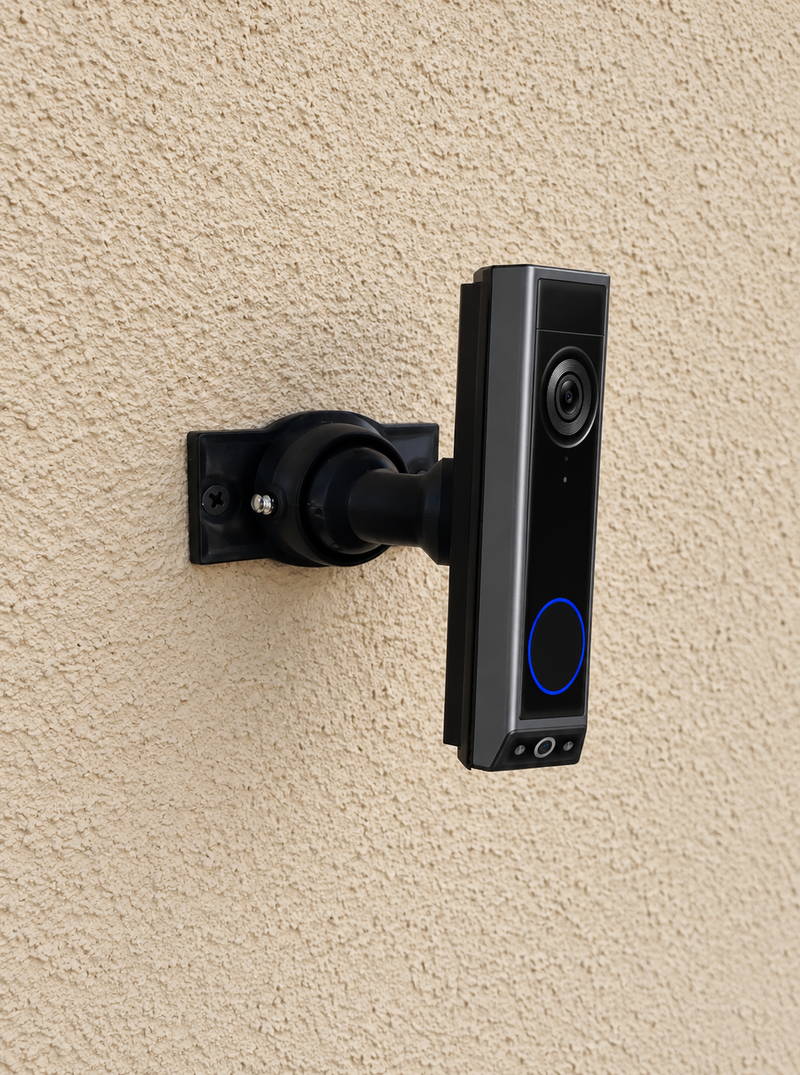

This Adjustable 15-90° Bent-Neck Mount swings the entire E340 outward across a wide 15° to 90° arc, so the head-to-toe view AND the package camera both see the right zone. Set screws lock the angle permanently — no drift after the first windstorm or temperature swing.

Wide Dual-Axis Pivot (15-90°) — Built for the E340's Tall Body

Designed for significant angle correction, this mount uses a unique bent-neck swivel joint with set-screw locks. Precise aiming control across a 15° to 90° arc relative to the wall — ideal for side-facing views (excels at angles greater than 45°). Fine-tuning is possible both horizontally (left/right) and vertically (up/down). Once the angle is set, the locking set screws hold position permanently.

15-90 degree side-wall swivel mount adjustability diagram for Eufy Video Doorbell E340
15° to 90° pivot — dual-axis swivel for perpendicular-wall installs.

Note: this design is optimized for substantial side angles. If you only need a very minor (<15°) adjustment or a straight-ahead view, see our 0-35° Swivel Mount for the Eufy Video Doorbell E340 instead.

Internal Wire Routing — Hidden & Protected

If you're hardwiring (16-24V AC), the existing doorbell wires enter from the wall, pass through the hidden internal channel inside the swivel joint, route through the front E340 adapter bracket, and connect directly to the doorbell terminals. Battery install? Just skip the wire routing — the channel sits empty, no functional difference. Either way, no exposed wiring at the joint and the USB-C charging port stays accessible.

Internal wire routing diagram — wires pass cleanly through the 15-90 degree swivel mount and connect to the Eufy Video Doorbell E340 terminals

Mount Dimensions & Weight

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Base Hole Spacing: 2-5/8 inches (center-to-center)
  • Wall Extension at 15°: ~2.0 inches
  • Wall Extension at 90°: ~3.5 inches (extends doorbell perpendicular to wall)
  • Weight: ~2 oz (PETG mount only)
  • (Note: This is the standard 1.8" base; narrow 3/4" baseplate option available — see Customization section.)

Key Features & Benefits

  • Custom Bracket for the E340 Dual Cam: Pre-shaped pocket cradles the tall E340 body without blocking either lens or the speaker grill.
  • Wide Adjustable Angle (15-90°): Significant dual-axis swivel built specifically for side-wall / perpendicular installations.
  • Wired OR Battery — Both Work: The wire pass-through accommodates the hardwired install; the battery install just skips it. No two-version SKU needed.
  • Head-to-Toe View Preserved: The bottom-facing package lens stays unobstructed at any angle in the 15-90° range.
  • Secure Locking Set Screws: Once you set the angle, it stays. No drift in cold weather, no need to readjust after firmware updates.
  • Siding Compatible: Flat surfaces or lapped siding up to 1.8 inches wide.
  • Complete Kit: Adjustable base, custom Eufy E340 bracket, and all necessary mounting screws.
  • Durable PETG: Sturdy 3D-printed PETG, UV-stable and freeze-tolerant for outdoor use.
  • Future-Proof Base: Universal swivel base — switch to a different Eufy model later and reuse this same bracket. Switch to a different brand and order a ~$10 Replacement Bracket.

Customization & Add-On Options

We offer solutions for almost any mounting situation:

Installing Your 15-90° Side-Wall Mount on the Eufy Video Doorbell E340

  1. Decide Power Mode First: If you're hardwiring (16-24V AC), turn OFF the doorbell circuit at the breaker. If you're going battery-only, you can skip the breaker step entirely.
    If hardwiring: confirm power is off with a multimeter before stripping wires. The E340 needs 16-24V AC at the existing chime location.
  2. Tools & Prep: Gather a drill, PH2 Philips (#6 base screws), PH1 Philips (#4 bracket/set/doorbell screws), wall anchors if needed, level, and (for wired installs) a multimeter.
  3. Plan the Aim Angle BEFORE Drilling: Stand where a visitor would stand. Visualize the angle from the doorbell location to that spot. 15-90° gives you a wide range — but committing to roughly the right angle before drilling pilot holes saves rework. The E340's downward package camera is sensitive to extreme tilt — aim for the side correction first, then check the package zone covers the doorstep.
  4. Mount the Base: Pull the doorbell wires through (if hardwiring), position the base vertically or horizontally to match your siding/trim, then attach using #6 screws (PH2 driver). Use anchors if not into a stud.
    Drill pilot holes if needed. Don't overtighten base screws.
  5. Attach the Swivel Bracket: Route wires through the swivel center (skip if battery), then screw the swivel onto the base with four #4 / PH1 center screws.
  6. Set Initial Angle: Adjust the swivel within 15-90° toward the visitor approach. Lightly tighten one or two set screws (#4 / PH1 driver) — final tightening comes after Live View confirmation.
  7. Wire (or Charge) the E340: Hardwired: connect the two transformer leads to the back of the E340. Battery-only: fully charge the 6500mAh battery before mounting (4-6 hours via USB-C).
  8. Snap the E340 Onto the Bracket: Use the screws PROVIDED WITH THIS MOUNT (PH1 driver) — not Eufy's stock mounting plate screws. DO NOT USE the Eufy stock back plate — our bracket replaces it.
    Tighten snugly, do not overtighten. Use the correct PH1 driver.
  9. Aim & Lock via the eufy Security App: Restore power (or power on the battery). Open the eufy Security app → Live View. Switch between the head-on lens and the package lens to confirm both are framed correctly. Tighten all set screws (PH1 driver) gently but firmly.
    Do not overtighten set screws — hand-tight is sufficient.
  10. Configure Detection Zones: In the eufy Security app, redraw motion detection zones to match the new framing. Side-wall installs benefit from tighter zones that exclude the street and adjacent yard. The E340's AI person/package detection works best with the porch path centered in the head-on frame.

Side-wall tip: extreme 90° angles slightly increase wind load on the doorbell. The set-screw lock is rated for it, but on installs in high-wind regions (coastal, exposed corners), the bracket's wider extension at 90° puts slight pre-loaded weight on the joint — completely fine, just normal for side-wall geometry.

FAQ — Eufy Video Doorbell E340 15-90° Mount

Will this 15-90° mount fit my Eufy Video Doorbell E340?
Yes. This bracket is custom-shaped for the Eufy E340's dual-camera body (Amazon ASIN B0CD7NT4Y9). The doorbell sits flush in the model-specific pocket without blocking either lens or the speaker grill. Same bracket also fits the S330, C31, C30, S220, C210, and legacy 2K Wired/Battery/Dual Cam models — Eufy uses a consistent mount footprint across the lineup.
Does the bottom-facing package camera still work properly when the mount is angled at 60-90°?
Yes — the bracket is designed so neither lens is obstructed across the entire 15-90° range. At extreme angles (75-90°), aim the doorbell so the head-on frame catches visitors at face height and the package lens still covers the doorstep below. The eufy Security app's Live View makes this easy to verify before tightening the set screws.
What's the difference between this 15-90° mount and the 0-35° mount for the E340?
The 15-90° mount uses a bent-neck dual-axis pivot for substantial side-wall corrections — best when the doorbell is mounted perpendicular to the door (on a side wall, pillar, or outside corner). The 0-35° mount is for fine-tuning aim on flat-wall installs. If you need more than 15° of correction, choose the 15-90° version.
Will the wired-vs-battery option matter for which mount I order?
No — the same mount works for both power modes. The wire pass-through channel accommodates the hardwired 16-24V AC install; the battery install just skips it. The bracket is designed so the USB-C charging port stays accessible without unmounting.
Can I install this on vinyl siding, Hardie board, or stucco?
Yes. The 1.8" base sits flat on most lapped siding. For vinyl siding without drilling into the siding itself, pair this mount with our Vinyl Siding Adapter. For Hardie/fiber-cement, use our Hardie Siding Mount. For stucco, drill pilot holes and use plastic anchors rated for masonry.
What hardware comes with the mount?
The kit includes the adjustable 15-90° swivel base, the custom Eufy E340 adapter bracket, locking set screws, mounting screws (#6 PH2 for the wall, #4 PH1 for bracket and doorbell), and basic wall anchors. You'll need a drill, a Philips PH1 + PH2 driver, and a level. Use ONLY the screws provided — do NOT use Eufy's stock mounting plate screws.
Is the mount weatherproof? How long will the PETG last outdoors?
Yes. We print in UV-stabilized PETG (not PLA) which matches the E340's IP65 rating, freeze-tolerant for winter, and won't yellow or warp like cheaper plastics. Real-world installs are still going strong after 4+ years.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We'll confirm the exact product/variant that fits and send a direct link.
  • If the part doesn't fit: Send a picture of the doorbell and a picture of how the part doesn't fit. We'll ship the correct replacement at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment issues only. We can't replace parts damaged during install or after install.

Installation Video & Examples

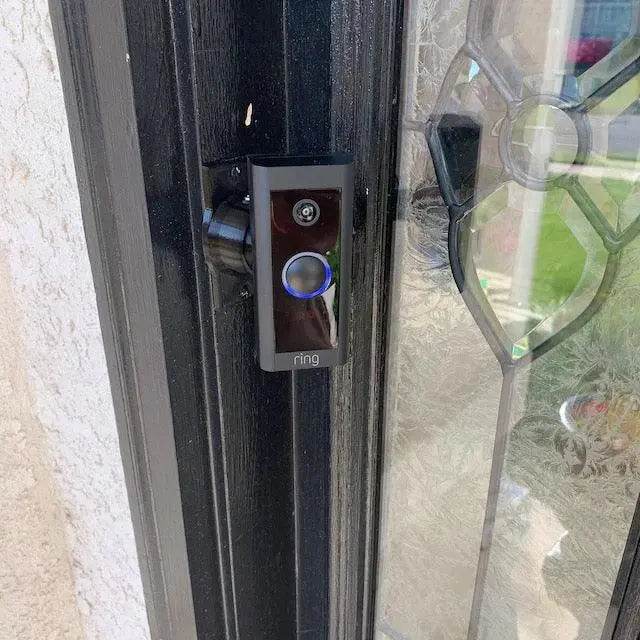

Example 90 degree side wall doorbell installation Adjustable base component for side-wall doorbell mount
Watch: Swivel Doorbell Installation Video

(Video shows general installation principles for our swivel mounts.)

Need to Buy the Doorbell or Accessories?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help?

We're here to help! If you're unsure about your doorbell model or need a custom solution for your 90-degree install:

Standard Color: Ships in Black. For other colors, use the Color Change Request.

Angle Note: The term "15-90°" represents the approximate adjustment range for perpendicular installations. Actual achievable angle depends on positioning.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance.

Get the right side-wall angle on your Eufy E340 — order today and we'll print and ship within 2-3 business days.
