15-90° Adjustable Swivel Mount for Aqara Doorbell G400 | 2K 3:4 Head-to-Toe PoE or Wired Wi-Fi 6 | Cat-5e Pass-Through Pivot

$50.00
$40.00
15-90° Side-Wall Pivot Mount for the Aqara Doorbell G400 — 2K Head-to-Toe PoE or Wired with Wi-Fi 6 Built for the Aqara Doorbell Camera G400 — the 2K 1536×2048 3:4 head-to-toe wired doorbell with PoE OR 8-24V hardwired and Wi-Fi...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

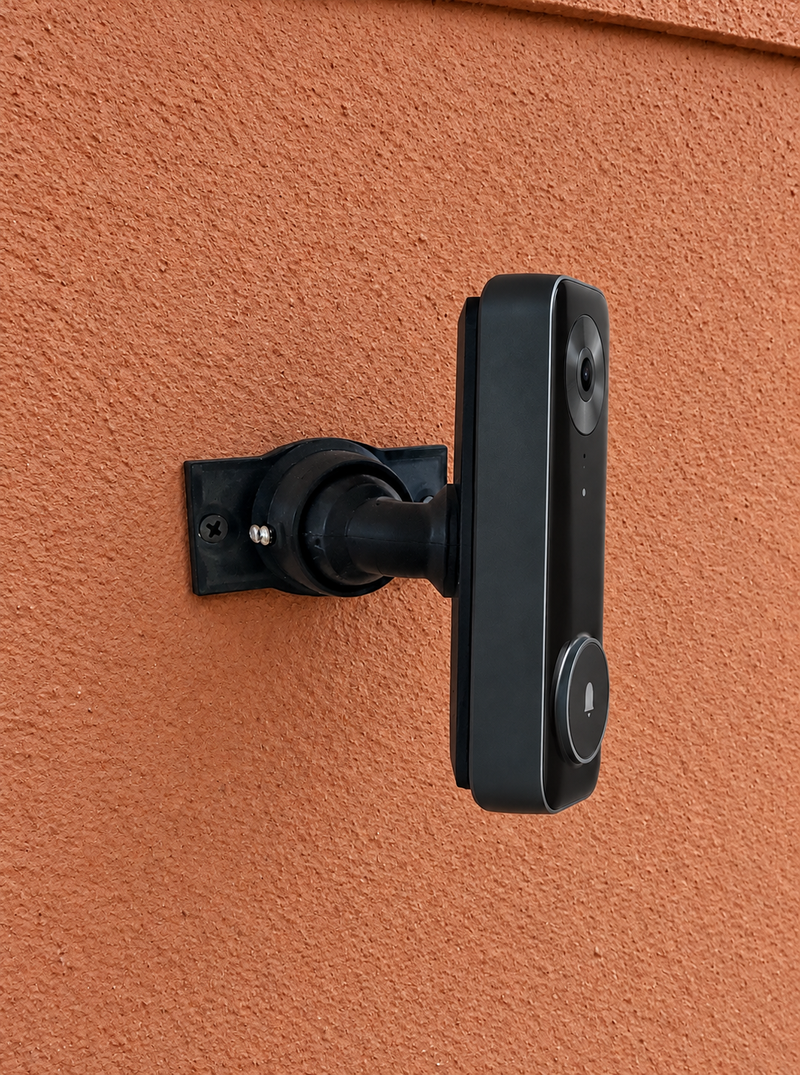

15-90° Side-Wall Pivot Mount for the Aqara Doorbell G400 — 2K Head-to-Toe PoE or Wired with Wi-Fi 6

Built for the Aqara Doorbell Camera G400 — the 2K 1536×2048 3:4 head-to-toe wired doorbell with PoE OR 8-24V hardwired and Wi-Fi 6. The bent-neck 15-90° pivot tilts the body perpendicular to the wall on side-wall installs. Wire pass-through accepts terminated CAT5e/CAT6.

Custom-Fit for the Aqara G400

  • Specifically for Aqara Doorbell Camera G400 — ASIN B0G52BVRLQ. 2K 1536×2048 3:4 head-to-toe, PoE or 8-24V hardwired, Wi-Fi 6, IP65.
  • Does NOT fit: Aqara G4 (B0BPHTL7MG, AA battery) or G410 (B0F6CJF9M9, hub w/ mmWave).
  • Quick Aqara ID: G400 is wired-only with PoE option, 3:4 head-to-toe.
Don't have it yet? Get the Aqara G400 on Amazon →

PoE + Wi-Fi 6 Wired Install with Side-Wall Aim

The G400 brings PoE and Wi-Fi 6 to Aqara's lineup. The 15-90° bent-neck pivot aims the 3:4 head-to-toe frame perpendicular to the wall on side-wall installs, and the wire pass-through is sized for terminated CAT5e/CAT6.

Wide Dual-Axis Control (15-90°)

Bent-neck swivel joint — precise aiming across 15° to 90°. Locking set screws hold position permanently.

15-90 degree adjustability diagram for Aqara G400

Need a smaller adjustment? 0-35° Mount for Aqara G400.

Mount Dimensions & Weight

  • Base Width: 1.8"
  • Base Height: 3.1"
  • Hole Spacing: 2-5/8"
  • Wall Extension at 15°: ~2.0"
  • Wall Extension at 90°: ~3.5"
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit for the Aqara G400 Body.
  • Wide 15-90° Pivot Range.
  • 3:4 Head-to-Toe Friendly — aim catches faces top, doormat bottom.
  • Two-Axis Set-Screw Lock.
  • RJ45 Pass-Through Joint — terminated CAT5e/CAT6 fits with connector attached.
  • Also Works with 8-24V AC/DC.
  • Outdoor PETG — matches IP65.
  • Universal Base.

Customization & Add-On Options

Installing on the Aqara G400

  1. Tools & Prep: Drill, PH2/PH1 Philips, anchors, level. RJ45 crimper or pre-terminated CAT5e/CAT6.
  2. Pull Cable: CAT5e/CAT6 from PoE switch (or 8-24V wires).
  3. Test Before Mounting: Connect on bench, verify Live View in Aqara app.
  4. Plan Aim Angle: 3:4 head-to-toe: TOP on faces, BOTTOM on doormat. Side-wall = 60-90°.
  5. Mount the Base: Pull cable through, vertically, #6 screws.
  6. Attach Bent-Neck Swivel: Route cable, four #4 / PH1 screws.
  7. Set Initial Angle: Adjust through 15-90°.
  8. Connect & Mount Doorbell: Plug RJ45 (or wires). Use screws PROVIDED WITH THIS MOUNT (preinstalled). Do NOT use Aqara stock plate.
  9. Aim & Lock: Live View, tilt/pan until 3:4 frame covers porch top-to-bottom. Tighten set screws.

FAQ

Compatible with Aqara G400?
Yes — B0G52BVRLQ only. Will not fit G4 or G410.
15-90° vs 0-35°?
15-90° for side-wall correction.
Route terminated CAT5e/CAT6?
Yes — pass-through accepts RJ45 connector.
Works with 8-24V AC/DC instead?
Yes — same pass-through accepts low-voltage wires.
Vinyl, Hardie, brick, or stucco?
Yes. Pair with siding adapters or use masonry anchors.
Weatherproof?
Yes. UV-stable PETG, freeze-tolerant. Matches IP65.
Hold for years?
Yes. Set-screw lock rated for years.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

Need to Buy Your Doorbell?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases.

Questions?

Standard Color: Black or White. Color Change Request.

Angle Note: 15-90° is approximate.

3D-Printed: Minor variations possible. Made-to-order USA.

Order your 15-90° mount for the Aqara G400 today.
