15-90° Adjustable Swivel Mount for Ubiquiti UniFi Doorbell Lite | 5MP 1920x2560 Portrait PoE | Low-Profile Custom-Fit Bracket

$50.00
$40.00
15-90° Side-Wall Pivot Mount for the UniFi Doorbell Lite — Slim 137mm Body, 5MP Portrait, PoE-Only Built for the UniFi Doorbell Lite (UVC-Doorbell-Lite) — the slimmest UniFi doorbell at 137mm with 5MP 1920×2560 portrait sensor and PoE-only power. Available in...
Availability: Many In Stock
Product Type: Adjustable Mount 15-90°

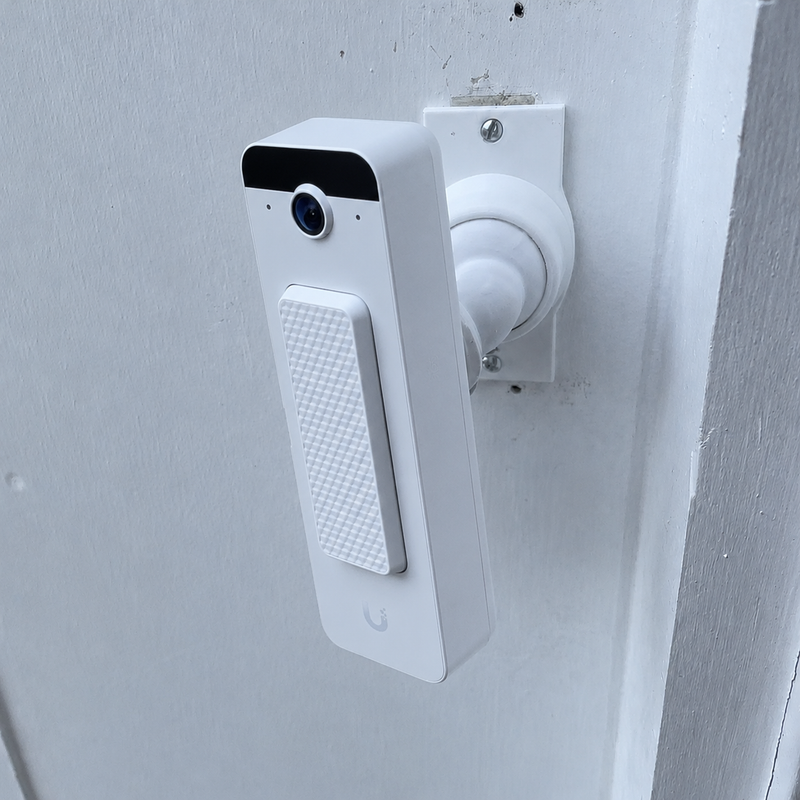

15-90° Side-Wall Pivot Mount for the UniFi Doorbell Lite — Slim 137mm Body, 5MP Portrait, PoE-Only

Built for the UniFi Doorbell Lite (UVC-Doorbell-Lite) — the slimmest UniFi doorbell at 137mm with 5MP 1920×2560 portrait sensor and PoE-only power. Available in white (-W) or black (-B). The bent-neck 15-90° pivot tilts the slim body perpendicular to the wall on side-wall installs.

Custom-Fit for the UniFi Doorbell Lite

  • Specifically for UniFi Doorbell Lite — Ubiquiti product code UVC-Doorbell-Lite (white -W or black -B). 5MP 1920×2560 portrait, 175.9° D FOV, 137×40×26.4mm slim body, PoE-only (37-57V DC, 8W max), IPX5.
  • Does NOT fit: Original G4 Doorbell, G4 Doorbell Pro (160mm), G6 Entry (176mm), or G6 Pro Entry (220mm). Doorbell Lite is the narrowest at 137mm.
  • Quick UniFi ID: Doorbell Lite is the slimmest UniFi doorbell. If yours is wider than 137mm or has a touchscreen, it's a different model.
Don't have it yet? Search the UniFi Doorbell Lite on Amazon →

Slim 137mm Body Fits Trim Where Other UniFi Don't

The Doorbell Lite is the install-anywhere UniFi: narrow 137mm body fits on trim where the G4 Doorbell Pro (160mm) won't, portrait 5MP sensor catches faces head-to-toe in a slim frame. The 15-90° bent-neck pivot tilts the slim body perpendicular to the wall on side-wall installs.

Wide Dual-Axis Control (15-90°)

Bent-neck swivel joint — precise aiming across 15° to 90°. Locking set screws hold position permanently.

15-90 degree adjustability diagram for UniFi Doorbell Lite

Need a smaller adjustment? 0-35° Mount for UniFi Doorbell Lite.

Mount Dimensions & Weight

  • Base Width: 1.8"
  • Base Height: 3.1"
  • Hole Spacing: 2-5/8"
  • Wall Extension at 15°: ~2.0"
  • Wall Extension at 90°: ~3.5"
  • Weight: ~2 oz

Key Features & Benefits

  • Custom-Fit for the Slim Doorbell Lite Body (137mm).
  • Wide 15-90° Pivot Range.
  • Narrow-Trim Friendly — slim body + slim mount stack works on trim where wider UniFi doorbells don't fit.
  • RJ45 Pass-Through — PoE 37-57V DC cable fits with connector attached.
  • Two-Axis Set-Screw Lock.
  • Portrait Sensor Friendly — aim catches faces head-to-toe.
  • Outdoor PETG — matches IPX5.
  • Universal Base.

Customization & Add-On Options

Installing on the UniFi Doorbell Lite

  1. Tools & Prep: Drill, PH2/PH1 Philips, anchors, level. Pre-terminated CAT5e/CAT6 (PoE 37-57V DC).
  2. Pull Cable: CAT5e/CAT6 from PoE switch.
  3. Adopt to UniFi Protect: Adopt to UniFi Protect. Verify Live View.
  4. Plan Aim Angle: Portrait sensor: TOP on faces, BOTTOM on doormat. Side-wall = 60-90° pivot.
  5. Mount the Base: Pull cable through, vertically, #6 screws.
  6. Attach Bent-Neck Swivel: Route cable, four #4 / PH1 screws.
  7. Set Initial Angle: Adjust through 15-90°.
  8. Connect & Mount Doorbell: Plug RJ45. Use screws PROVIDED WITH THIS MOUNT (preinstalled).
  9. Aim & Lock: UniFi Protect Live View, tilt/pan, tighten set screws.

FAQ

Compatible with Doorbell Lite?
Yes — UVC-Doorbell-Lite (white or black). Will not fit other UniFi doorbells.
15-90° vs 0-35°?
15-90° for side-wall correction.
Fits narrow trim?
Yes — 137mm body is the narrowest UniFi.
PoE-only?
Yes — 37-57V DC, 8W max. No 16-24V AC option.
Vinyl, Hardie, brick, or stucco?
Yes. Pair with siding adapters or use masonry anchors.
Weatherproof?
Yes. UV-stable PETG, freeze-tolerant. Matches IPX5.
Hold for years?
Yes. Set-screw lock rated for years.

✔ Replacement Guarantee — The Right Part, Guaranteed

Send a picture of your install area and your doorbell BEFORE you order. We'll send you the exact link to what you need. If you order and it doesn't fit, we'll send the correct part at NO ADDITIONAL COST.

Need to Buy Your Doorbell?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases.

Questions?

Standard Color: Black or White. Color Change Request.

Angle Note: 15-90° is approximate.

3D-Printed: Minor variations possible. Made-to-order USA.

Order your 15-90° mount for the UniFi Doorbell Lite today.
