Upgrade your Ring doorbell while reusing your existing mounting holes. This black adapter plate connects the four-hole mounting pattern of a supported older Ring doorbell to the bracket for your selected new Ring Retinal 2K or 4K model. Choose a standard plate with subtle black mounting screws, or add a cover that conceals the base plate and its wall screws.
Compatibility: Select Your Old and New Doorbell
The newer, narrower Ring doorbells can leave the older doorbell's outside mounting locations visible. This adapter bridges the old wall-hole pattern and the new mounting bracket.
- Older Video Doorbell (2nd Gen): Choose this mounting pattern for the older model with an integrated, non-removable battery. It is different from Ring Video Doorbell 2.
- Older removable-battery model: Choose this pattern for the supported older removable-battery installation. Its upper pair of mounting holes sits nearer the center, with the other pair near the bottom.
- New doorbell: Select the exact Ring Retinal 2K or 4K model from the options. Resolution alone does not identify the mounting bracket.
Photo verification before ordering: Send a photo of your old mounting holes and the exact model of your new doorbell. Fit depends on both patterns; do not select an adapter based only on the words “Gen 2.”
How to Order
- Select your Previous Doorbell Pattern.
- Select your New Ring Doorbell.
- Select Standard — Exposed Black Screws or Covered — Hidden Screws.
- Send your installation photos and model information to shop@doorbellmount.com or text 833-326-6868 for fit verification.
Default color: Black. Doorbell and the original Ring mounting bracket are not included.
Choose Your Plate Style
| Feature | Standard | Covered |
|---|---|---|
| Parts | Adapter base plate | Adapter base plus cover plate |
| Wall screw appearance | Four small black heads remain visible | Cover conceals the base and four wall screw heads |
| Bracket attachment screws | Included #4 × 1/4-inch screws | Included #4 × 3/8-inch screws |
| Assembly order | Wall → adapter base → Ring bracket → doorbell | Wall → adapter base → cover → Ring bracket → doorbell |
Key Features & Benefits
- Reuse matching wall holes: Avoid drilling a new mounting pattern when your existing holes match the selected adapter and remain secure.
- Cleaner upgrade: A wider plate surrounds the narrower new doorbell and bridges the old mounting locations.
- Small black hardware: Supplied wall screws sit in chamfered, countersunk holes and blend into the black base.
- Optional concealed mounting: The cover's recessed underside fits over the base; its smooth face points outward.
- Wire passthrough: A center opening allows existing doorbell wiring to reach the new device.
- 3D-printed construction: Minor layer lines and cosmetic variations are normal.
Product Details & Included Hardware
- Product: DoorbellMount.com Ring upgrade mounting adapter.
- Color: Black base, black optional cover, and black supplied screws.
- Base attachment: Four outside countersunk mounting holes with supplied black wall screws.
- Standard kit: One base plate, four black wall screws, and two #4 × 1/4-inch bracket screws.
- Covered kit: One base plate, one cover, four black wall screws, and two #4 × 3/8-inch bracket screws.
- Use with: The original mounting bracket supplied with your selected new Ring doorbell.
- Not included: Ring doorbell, Ring mounting bracket, or wall anchors. Use anchors appropriate for your surface when needed.

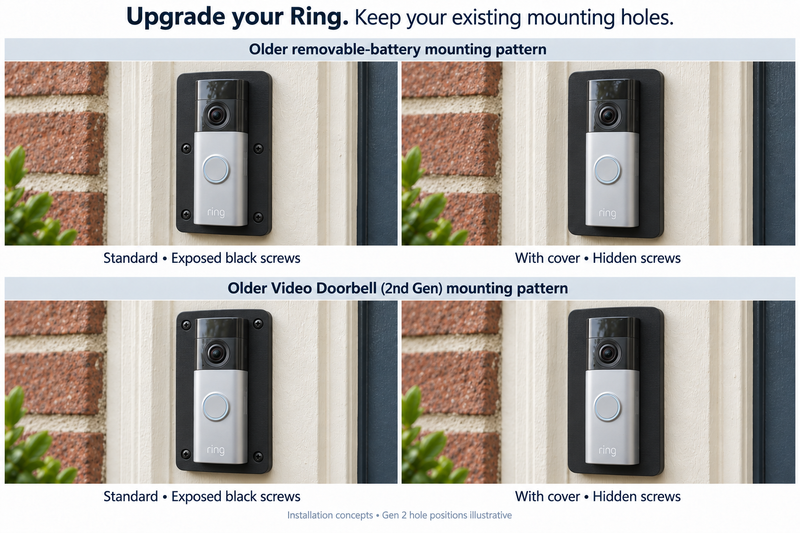

Installed Examples: Standard vs. Covered
Illustrative installation concepts. Doorbell appearance and hole positions vary by selected model; images are not dimensional drawings.
How to Install the Ring Upgrade Adapter
- Prepare the installation: Turn off power before handling existing doorbell wiring. Remove the old doorbell and bracket. Confirm the selected adapter matches the existing four-hole pattern and the mounting surface is sound.
- Secure the adapter base: Route wires through the center opening if needed. Align the four outside holes with the existing wall holes. Install the supplied black wall screws into the chamfered holes using suitable anchors where required. Tighten gently until the heads seat flush.
- Standard option: Place the new Ring mounting bracket directly against the base. Attach it with the two supplied #4 × 1/4-inch screws.
- Covered option: Place the cover over the secured base with the recess facing the wall and the smooth side facing outward. Position the Ring bracket on the cover. Install the two supplied #4 × 3/8-inch screws through the Ring bracket and cover into the base. The cover hides the base plate and wall screw heads.
- Complete the Ring installation: Follow the instructions for your exact Ring model to connect any wiring, attach the doorbell, and secure it. Restore power if applicable and test.
Use the supplied short screws for bracket attachment. The longer wall screws are only for securing the adapter to the wall. Hand-tighten with a properly fitting screwdriver; do not overtighten.
Exploded Assembly Guide
Assembly concept, not to scale. Use the written instructions and supplied hardware for your selected version.
Frequently Asked Questions
Can I reuse my old Ring doorbell screw holes?
Yes, when your existing four-hole pattern matches the selected adapter and the holes provide secure attachment. Choose the old mounting pattern and exact new doorbell model, then send photos for verification.
Is Ring Video Doorbell 2 the same as Video Doorbell (2nd Gen)?
No. Ring Video Doorbell 2 uses a removable battery; the older Video Doorbell (2nd Gen) has an integrated battery. They require different mounting-pattern selections.
Does this fit both battery and wired Retinal doorbells?
The listing offers model-specific selections for Ring Battery Doorbell 2K, Battery Doorbell 2K Plus, Battery Doorbell 4K Pro, Wired Doorbell 2K, Wired Doorbell 2K Plus, and Wired Doorbell 4K Pro. Select your exact model and verify fit before ordering. Contact us about models not listed, including Elite or PoE versions.
Will I still see the mounting screws?
The standard option leaves four small black screw heads visible around the new doorbell. The covered option hides those heads and the adapter base beneath a matching black cover.
Which screws attach the new Ring bracket?
Use #4 × 1/4-inch screws for the base-only option. Use #4 × 3/8-inch screws through the bracket and cover into the base for the covered option. These screws are included with the selected kit.
Does the adapter change the doorbell's power requirements?
No. This is a mechanical mounting adapter. Follow Ring's power, wiring, and chime requirements for your exact doorbell.
Questions? Send Us a Photo
Not sure which old mounting pattern you have? Send a straight-on photo of the old doorbell or mounting holes, plus the new doorbell's model name. Include center-to-center hole measurements if you are unsure.
- Email: shop@doorbellmount.com
- Text/Call: 1-833-326-6868
Adapter accessory only. Manufactured by DoorbellMount.com for use with the selected Ring models; not a Ring-manufactured product. Photos show illustrative installations. Fit is specific to your old mounting pattern and new bracket.
