Fixed Narrow Mounts
Fixed Trim Slim/Narrow Doorbell Mount for Video Doorbells and Uneven Trim
Fixed Trim Slim/Narrow Doorbell Mount for Video Doorbells and Uneven Trim
Fixed Mount - Available with Angle Adapters Or No Angle Straight Out.
Couldn't load pickup availability
Narrow Fixed Doorbell Mount Base (3/4" Wide) | Select Your Model
Compatibility: Select Your Doorbell Model!
- This fixed mounting base system fits many popular video doorbells (Ring, Nest, Eufy, Wyze, Blink, etc.).
- CRITICAL: You MUST select your specific Doorbell Model from the options list on this page. We will send the correct top adapter bracket (pre-drilled for your model) which attaches to this base.
- Intended Use: Replaces standard doorbell buttons on narrow trim (3/4" wide) or fixes mounting issues on slightly raised surfaces. Provides a stable, non-angled platform.
- Model Not Listed? We specialize in custom solutions! Contact us with your doorbell details. (Contact info below).
Need help identifying a Ring model? Check our Ring Model Guide.

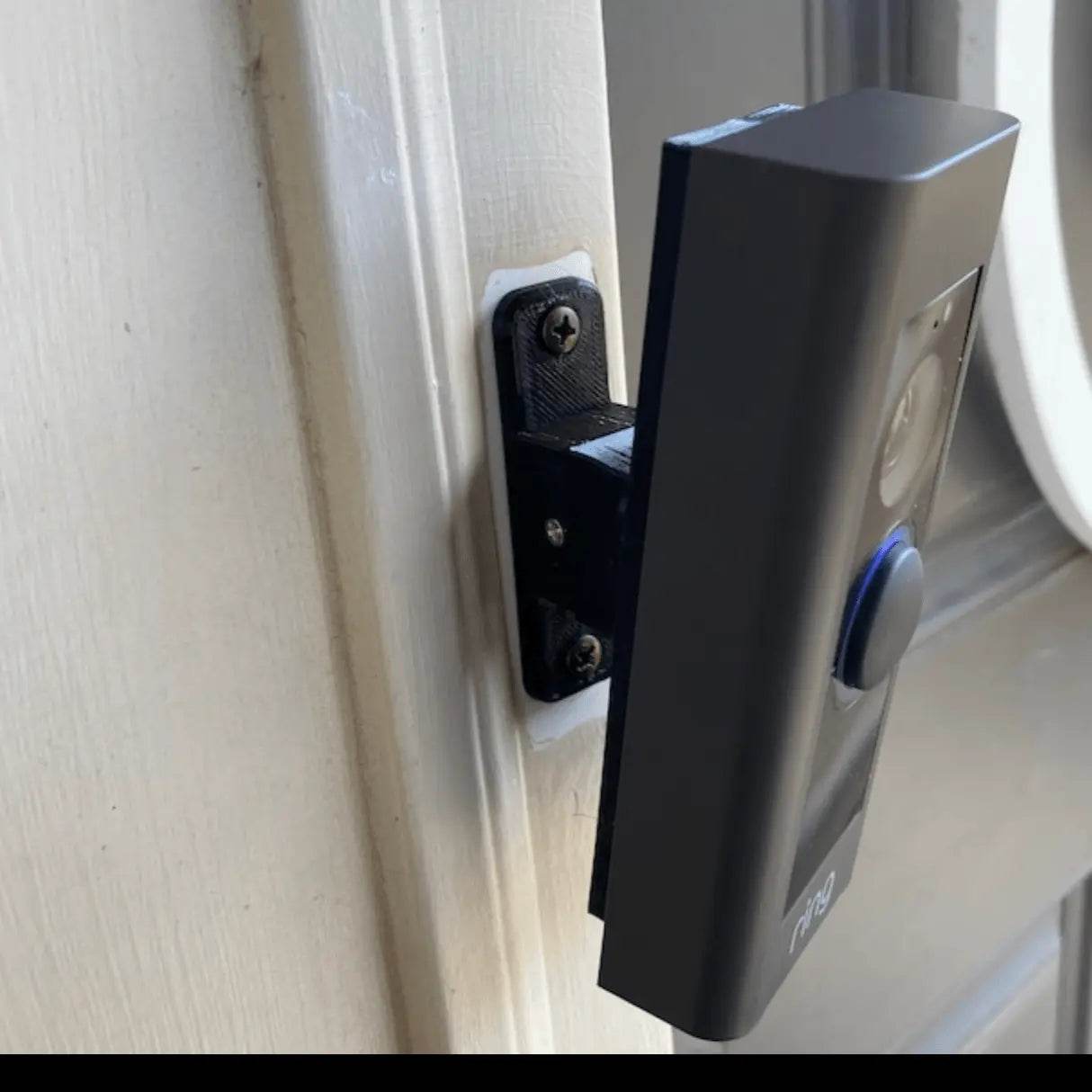

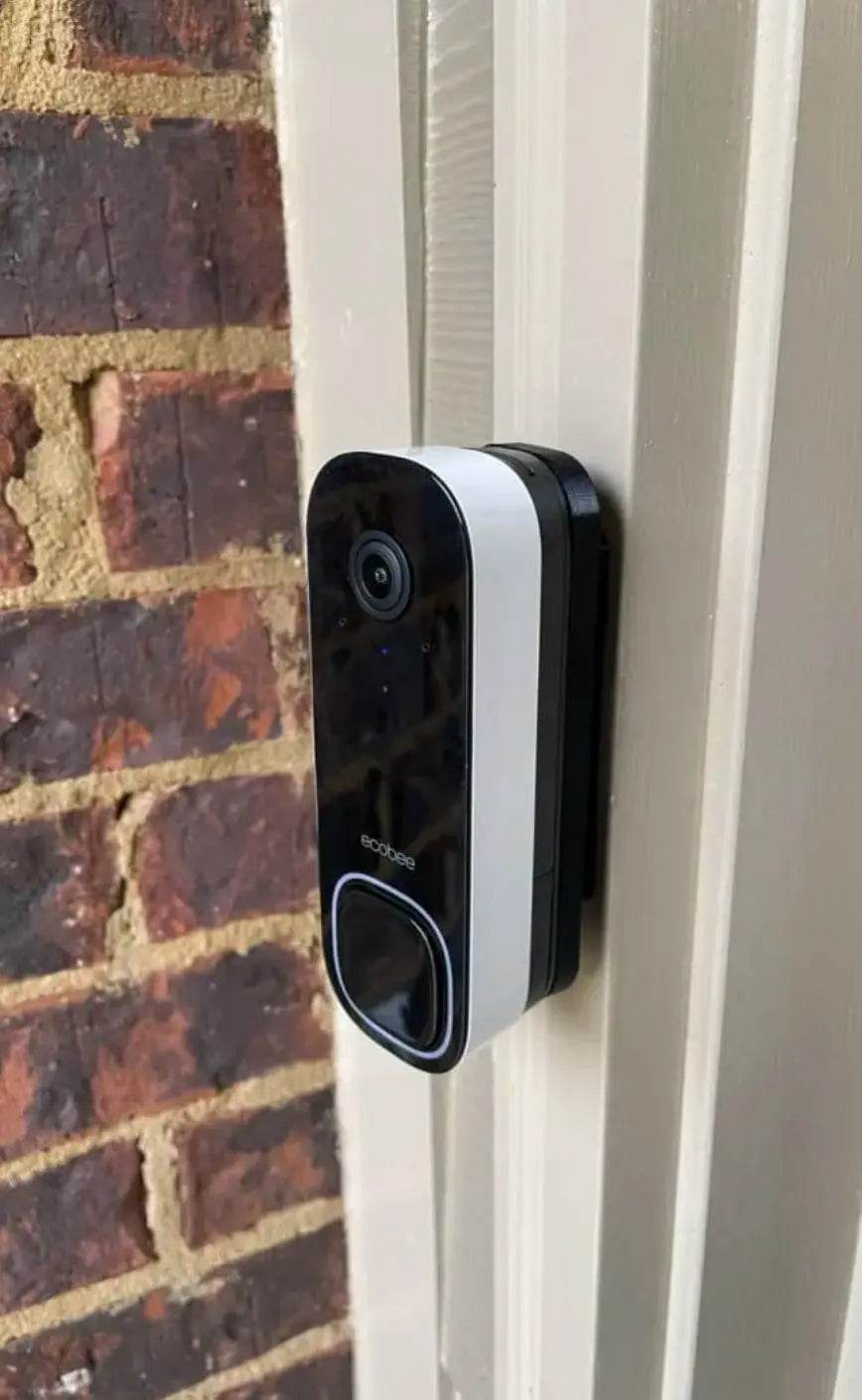

Perfect Mount for Narrow Trim & Replacing Old Doorbells!
Struggling to mount your new video doorbell on narrow 3/4-inch wide trim? Or is your trim slightly raised, causing your doorbell to sit unevenly? This Narrow Fixed Doorbell Mount is the perfect solution! It's designed as a direct replacement for old doorbell buttons, using standard screw hole spacing.
This mount provides a stable, low-profile (only 3/8" deep standard), non-angled platform. Its clean design hides the base mounting screws behind the doorbell bracket for a professional finish.
Mount Specifications
- Base Width: 3/4 inches (0.75") - Fits narrow trim perfectly.
- Base Length: Approx. 2.5 inches
- Standard Base Hole Spacing: 2 inches (center-to-center) - Matches many old doorbells. (Custom spacing available as add-on).
- Standard Depth: Approx. 3/8 inches extension from the wall (low profile). (Longer extensions available as add-on).
Features & Benefits:
- Narrow 3/4" Base: Ideal size for most standard door trim.
- Fixed Non-Angled Design: Provides a stable, straight mounting platform.
- Low Profile: Standard depth is only 3/8" off the mounting surface.
- Direct Replacement: Often uses existing 2-inch screw holes from old doorbells.
- Hidden Base Screws: Base mounting screws are concealed behind the top bracket for a clean look.
- Requires Model Selection: Get the correct pre-drilled top bracket for your specific doorbell.
- Wire Passthrough: Allows wiring to run cleanly through the mount.
- Durable PETG Construction: Strong, weather-resistant material for outdoor use (superior to PLA).
- Customizable & Expandable: Options available for angle, extension length, and hole spacing (see Add-ons).
- Future-Proof System: Easily upgrade your doorbell later by purchasing just a new adapter bracket (here, approx. $10) to fit this base.
Installing Your Fixed Narrow Mount
-
Tools & Prep: Gather: Drill, PH1 & PH2 Philips Screwdrivers/Bits, Level (optional), Anchors (if needed).
Turn OFF power to doorbell wiring at the breaker!
-
Remove Old Doorbell & Mount Base: Remove your old doorbell button. Position the narrow base piece over the existing wires and screw holes (standard 2" spacing). Attach securely using appropriate screws (#6 size recommended - check fit, screws may not be included for base-to-wall) and anchors if needed. Use a PH2 driver if using #6 screws.
Ensure base is level. Drill pilot holes if needed. Do not overtighten screws.
-
Attach Top Bracket: Route wires through the top bracket (specific to your selected doorbell). Place the top bracket over the mounted base, ensuring it covers the base screws. Secure the top bracket to the base using the small **set screws** provided (usually from behind/side, likely requires PH1 driver).
Tighten set screws snugly to secure the bracket.
- Wire Doorbell: Connect wires to your new video doorbell per manufacturer's instructions. Tuck excess wire into base cavity.
-
Attach Doorbell to Top Bracket:
- Align your selected doorbell model with the pre-drilled holes on the top bracket.
- Secure the doorbell using the screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver).
- DO NOT USE screws that came with your doorbell.
- Replace doorbell cover if applicable.
Use correct PH1 driver. Tighten gently, avoid overtightening. - Final Check & Power On: Ensure doorbell is securely mounted. Turn power back on and test.
Follow safety rules & doorbell guidelines. Use anchors if needed. Correct Philips bit size prevents stripping.
Optional Add-ons & Customizations:
Need to adjust the angle, depth, or hole spacing? We have solutions!
-
Angle Adapter Add-onNeed to angle your doorbell horizontally? Add this piece between the base and top bracket.
-
Extension Add-onNeed more than the standard 3/8" depth? Add this extension piece between the base and top bracket.
-
Customize Hole Spacing Add-onDo your existing wall holes have spacing different than the standard 2 inches? Add this item to request custom hole spacing on the base.
-
Custom Color
Want your mount in White, Brown, Grey, or another color (instead of standard Black)? Add this item to your order.
Installation Video Concept
(Video may show similar products; general concept applies.)
Questions? Need Help Choosing Your Model or Options?
Unsure if this mount fits your doorbell or installation needs? Send us a picture of your doorbell and mounting area!
- Email: shop@doorbellmount.com (Send pictures!)
- Text/Call: 1-833-326-6868 (Text pictures!)
Default Color: Black. For other colors, add the Color Change Request item.

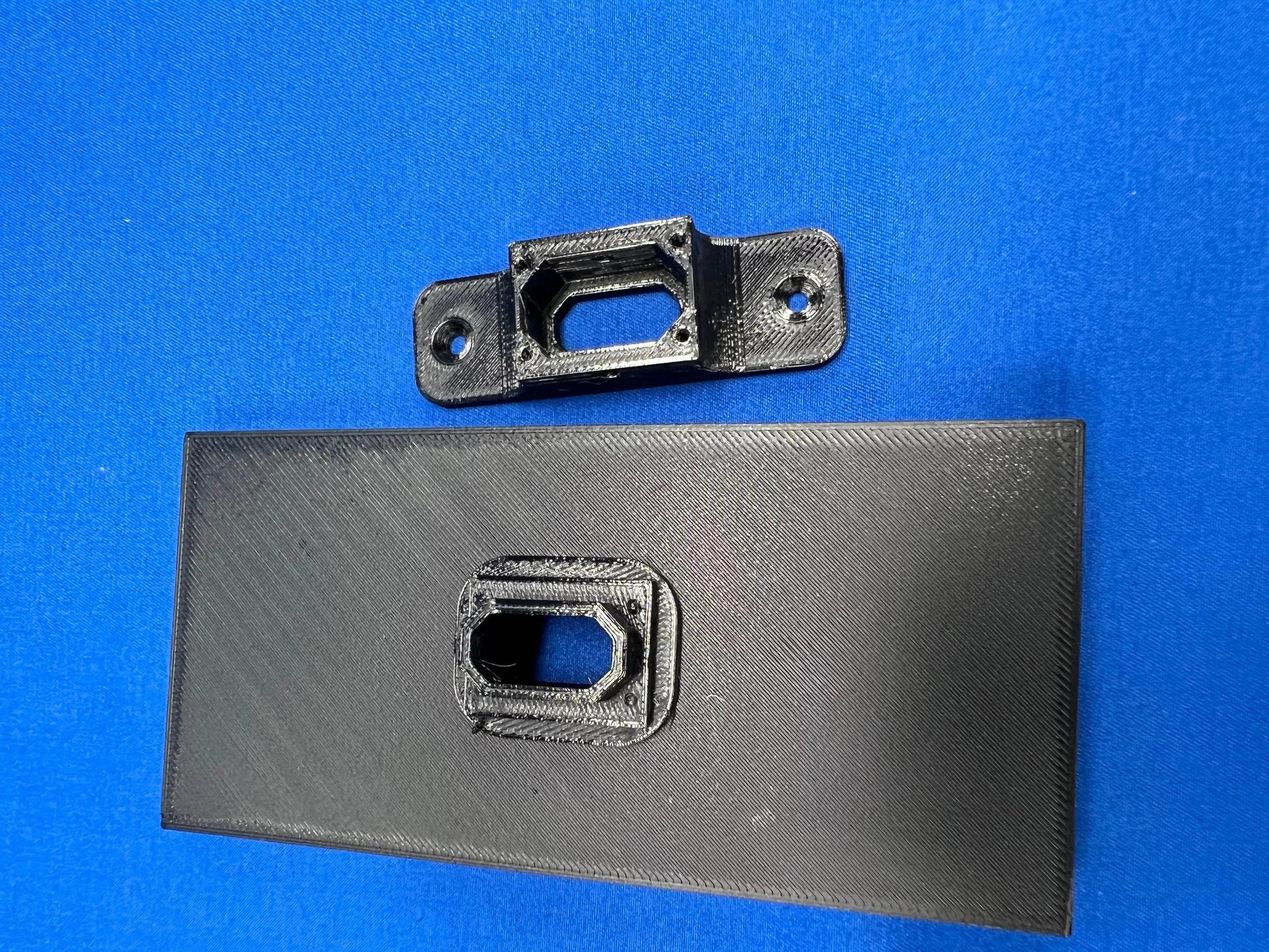

Doorbell Not Included. This listing includes the 2-piece fixed mount (base + top bracket specific to your selected doorbell) and installation screws for assembly and doorbell attachment (base-to-wall screws may not be included).
PETG Recommended: This mount is printed in PETG, rated for outdoor use. Be wary of similar items from other sellers using PLA, which is not suitable for outdoor conditions.
3D Printed Quality: While our 3D printing process yields high-quality, functional parts, minor cosmetic imperfections inherent to the process may be present. These do not affect the mount's strength or function. If you have any quality concerns, please contact us before leaving a review.
Order your Narrow Fixed Doorbell Mount today for a clean, stable installation on narrow trim! Remember to select your doorbell model.
