30° S-Shaped Corner Doorbell Mount (3/4" Narrow Base) | Select Model
Designed for Corners & Narrow Trim! Select Your Doorbell.
This mount features a **fixed 30-degree angle** and an "S-shaped" design to help position your doorbell optimally in a corner. Its **narrow 3/4-inch base** is ideal for tight corner installations or very slim door trim.
- CRITICAL: You MUST Select Your Specific Doorbell Model from the options list to receive the correct custom-fitted top adapter bracket.
-
Sizing Considerations (Due to 3/4" Base & Corner Offset):
- Ideal for doorbells **up to ~2 inches wide** (e.g., Ring Pro/Wired, Blink, Logitech, SimpliSafe, Google Nest Hello) when installed flush in a 90° corner. The S-shape design means the center of the top bracket is offset approx. 0.854" from the true corner vertex.
- Wider doorbells (like Ring Battery models, approx. 2.5" wide) will require this mount to be installed slightly **offset from the absolute corner** (e.g., 1/4" to 3/4" away from one corner edge) to ensure the doorbell fits without significant overhang into the walkway.
- WARNING: If your trim is exceptionally narrow and close to a door swing, any doorbell might present an obstruction. Please send pictures of your mounting area and doorbell for a fit assessment BEFORE ordering if you have any doubts.
Enhance Your Home with the 30° S-Shaped Corner Mount
Need to mount your video doorbell snugly in a corner or on very slim trim, especially around storm door frames? This **Fixed 30° S-Shaped Corner Mount** is engineered for these specific challenges! Its narrow 3/4" base fits where others won't, while the S-shape design provides a 30-degree outward angle and strategic offset from the corner vertex.
This ensures your camera captures the approach effectively, improving visibility and security by moving the doorbell slightly out and angling it for a better line of sight. The wire passthrough allows for a clean installation for wired doorbells.
Mount Specifications
- Fixed Angle: Provides a **30-degree horizontal angle** (angled outward from the corner).
- Design: "S-Shaped" for optimized corner placement with some offset.
- Base Wall Footprint Width: 3/4 inches (0.75").
- Base Wall Footprint Length: Approx. 2.5 inches.
- Base Mounting Hole Spacing: Standard **2 inches** (center-to-center). (Customizable via add-on service).
- Effective Offset: Doorbell center typically offset ~0.854" from corner vertex to accommodate doorbells up to ~2" wide when mount is flush in a 90° corner. (Wider doorbells require mount to be installed slightly away from corner edge).
Key Features & Benefits:
- 30° Fixed Outward Angle: Ideal for corner installations to direct view towards approach.
- "S-Shaped" Offset Design: Optimizes placement for doorbells up to ~2" wide in corners, helping clear storm door frames.
- Ultra-Narrow 3/4" Base: Fits 98% of tight corners and slim door trim.
- Standard 2" Hole Spacing: Often matches existing doorbell button holes (customizable).
- Requires Doorbell Model Selection: Get the correct pre-drilled top adapter bracket.
- Internal Wire Passthrough: For a clean, professional look with wired doorbells.
- Durable PETG Construction: Weather-resistant, much stronger than PLA for outdoor use.
- Includes All Assembly Screws: For connecting the adapter bracket to the mount base.
- Future-Proof System: Top adapter bracket is replaceable for future doorbell upgrades (available here).
Installing Your 30° Fixed Corner Mount
-
Tools & Prep: Gather: Drill, PH1 & PH2 Philips Bits, Level, Anchors (if needed), selected doorbell model & its specific backplate/screws if required by doorbell.
Turn OFF power at the breaker if hardwiring!
-
Position & Mount Angled Base: Place the **30° S-Shaped Corner Base** snugly into the corner, ensuring the 30° angle directs the doorbell as desired. Mark and drill pilot holes if needed. Secure the base to **one side** of the corner trim/wall using appropriate screws (#6 size likely, use PH2) and anchors through the 2" spaced holes.
Ensure base is level vertically. Do NOT overtighten wall screws. If your doorbell is wider than 2", install the base slightly offset from the corner to allow fit.
-
Attach Doorbell Adapter Bracket: Route wires through the **Doorbell Adapter Bracket** (this piece is specific to your selected doorbell model). Align this bracket onto the angled face of the mounted Corner Base. Attach using the small screws provided (likely #4 screws / PH1 driver).
Tighten screws snugly until bracket is flush and secure against the angled base. Clear any plastic debris from pilot holes if necessary.
- Wire Doorbell: Connect wires to your video doorbell per its manufacturer's instructions. Tuck excess wire into the mount's cavity or wall.
-
Attach Doorbell to Adapter Bracket:
- Align your doorbell (or its specific backplate, if it uses one and our adapter is designed for it) with the pre-drilled holes on the custom Doorbell Adapter Bracket.
- Secure the doorbell/plate using the small screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver).
- DO NOT USE screws that came with your doorbell for THIS step unless specifically for attaching to its own plate which is then attached to our bracket.
- Replace your doorbell's cover/faceplate if applicable.
Use correct PH1 driver for provided screws. Tighten gently to avoid stripping. - Final Check & Power On: Ensure doorbell is securely mounted. Turn power back on (if applicable) and test.
Follow safety rules & your doorbell's specific guidelines. Use appropriate wall anchors. Smallest extension (typically built-in to the S-shape for ~1" effective extension from corner) will be shipped unless custom extension length requested (additional cost applies).
Perfect Design for Tight Spaces & Corners
This S-Shaped Corner Doorbell Mount is strategically designed to fit snugly in tight areas, such as corners near storm doors. With its fixed 30º outward angle, this mount is ideal for those tricky spots, ensuring your doorbell remains accessible and provides an aesthetically pleasing, functional installation even when space is limited.
Durable Construction for Long-Lasting Use
Built to last with robust PETG materials that resist the elements, this mount withstands harsh weather, keeping your doorbell secure and functional year-round. Installation is straightforward and designed for longevity.
Easy Installation and Versatile Fit
Installing this Corner Doorbell Mount is user-friendly. Whether on trim or near a storm door frame, it provides a stable attachment point for many popular doorbell models (when your specific device is selected for the custom top bracket).
Optional Add-ons & Customizations:
Enhance your installation (verify compatibility for 3/4" base if needed):
-
Customize Base Hole SpacingNeed different spacing than the standard 2" for the base? Add this service and provide your measurements.
-
Further Extension from Corner
Need more than the standard ~1" effective extension from the corner? Contact us for custom length options.
Standard Black (except SimpliSafe/Wyze default White). For other colors, add this service.
Visualization & Installation Help

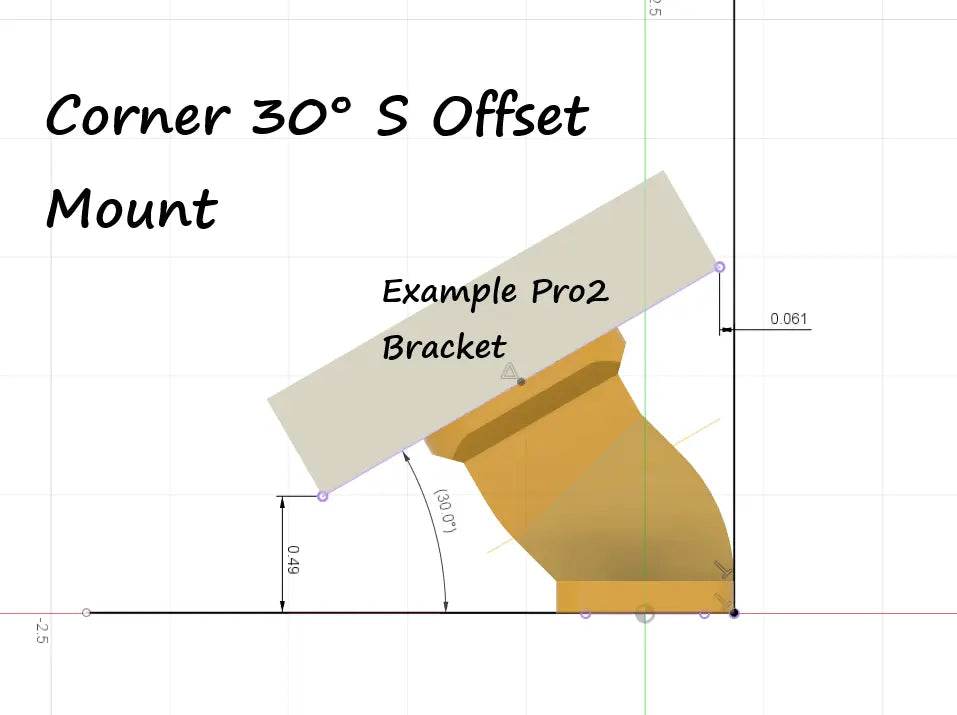

Product Image:
Questions? Need Fit Confirmation or Customization?
Please send pictures of your doorbell and mounting area if you're unsure about fit, especially with the corner placement and doorbell size! We can confirm if this mount or a custom solution is best.
- Email: shop@doorbellmount.com (Send Pictures!)
- Text/Call: 1-833-326-6868 (Text Pictures!)
Default Color: Black (except SimpliSafe/Wyze usually White). For other colors, add the Color Change Request item.
Doorbell Not Included. Includes the 30° angled S-shaped corner mount base, doorbell-specific top adapter bracket, and assembly screws.
Material: Printed in durable, outdoor-rated PETG (superior to PLA).
3D Printed Quality: While usually fantastic, minor cosmetic imperfections are inherent to 3D printing and don't affect function. We'll gladly replace if you're unhappy with quality.
Order your 30° S-Shaped Corner Mount today for a perfect fit in tight spaces! Remember to select your doorbell model.
