15º Offset Corner Doorbell Mount for Trim and Brick Storm Door Area ( 5/8 extension) |Universal Fit Mount

$35.00
$32.50
Fixed Corner Doorbell Mount (15° Angle, 1" Extension) | Select Your Model Designed for Corners & Narrow Trim! Select Your Doorbell Model. This mount provides a fixed **15-degree angle** and extends your doorbell approximately **1 inch out from the corner**....
Availability: Many In Stock
Product Type: Corner Mount

Fixed Corner Doorbell Mount (15° Angle, 1" Extension) | Select Your Model

Designed for Corners & Narrow Trim! Select Your Doorbell Model.

This mount provides a fixed **15-degree angle** and extends your doorbell approximately **1 inch out from the corner**. Its **narrow 3/4-inch base** is ideal for tight corner installations or slim door trim.

  • CRITICAL: You MUST Select Your Specific Doorbell Model from the options list to receive the correct custom-fitted top adapter bracket.
  • Sizing for Doorbells:
    • Designed for doorbells up to approx. 2 inches wide when mounted flush in a corner (e.g., Blink, Logitech, SimpliSafe, Google Nest Hello).
    • Wider doorbells (like Ring Battery models, approx. 2.5" wide) will require this mount to be installed at least 3/4" away from the absolute corner to fit.
  • WARNING: If your trim is very narrow and close to a door swing, part of the doorbell may enter the walkway or be hit by the door. Please send pictures of your mounting area for a fit assessment BEFORE ordering if unsure.

Enhance Your Home with the Perfect Corner View

Is your best doorbell mounting spot right in a corner, or on very narrow trim where standard mounts won't fit? This **Fixed Corner Doorbell Mount** is your solution! It's engineered to fit snugly into these challenging spaces, providing a stable platform that angles your doorbell **15 degrees outward** and positions it about **1 inch forward from the corner vertex**.

This ensures your camera captures the approach to your door effectively, improving visibility and security, especially useful for clearing storm door frames or achieving a better line of sight.

Mount Specifications

  • Fixed Angle: Provides a **15-degree horizontal angle** (out from corner).
  • Extension from Corner: Positions doorbell approx. **1 inch forward** from the corner point.
  • Base Wall Footprint Width: 3/4 inches.
  • Base Wall Footprint Length: Approx. 2.5 inches.
  • Base Mounting Hole Spacing: Standard **2 inches** (center-to-center). (Custom spacing available via add-on).

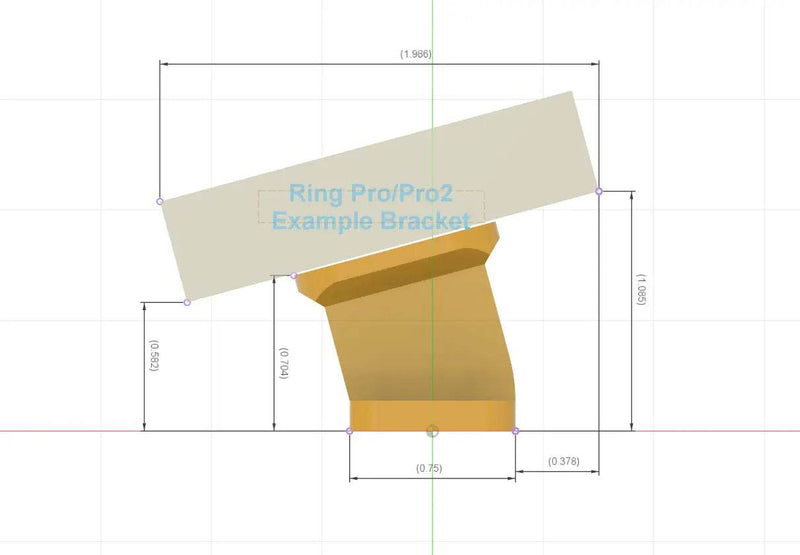

  • Max Doorbell Width (in true corner): Designed with a 0.854" offset from center to fit doorbells up to ~2" wide when installed flush in a 90° corner. Wider doorbells need the mount offset slightly from the corner.

Key Features & Benefits:

  • 15° Fixed Outward Angle: Ideal for corner installations to direct view towards approach.
  • ~5/8" Extension from Corner: Brings doorbell forward for better visibility.
  • Narrow 3/4" Base: Fits most tight corners and slim door trim.
  • Standard 2" Hole Spacing: Often matches existing doorbell button holes (customizable).
  • Requires Doorbell Model Selection: Get the correct pre-drilled top bracket.
  • Clean Wire Passthrough: Wires run neatly through the mount.
  • Durable PETG Construction: Weather-resistant, superior to PLA for outdoor use.
  • Includes All Necessary Screws: For mount assembly and doorbell attachment.
  • Future-Proof System: Top adapter bracket is replaceable for future doorbell upgrades (available here).

Installing Your Fixed Corner Mount

  1. Tools & Prep: Gather: Drill, PH1 & PH2 Philips Bits, Level, Anchors (if needed), selected doorbell model & its original hardware (if any needed for final faceplate).
    Turn OFF power at the breaker if hardwiring!
  2. Position & Mount Angled Base: Place the **15° Angled Corner Base** snugly into the corner, ensuring the angle directs the doorbell as desired (usually outwards). Mark and drill pilot holes if needed. Secure the base to **one side** of the corner trim/wall using appropriate screws (#6 size likely, use PH2) and anchors through the 2" spaced holes.
    Ensure base is level vertically. Do NOT overtighten screws.
  3. Attach Doorbell Adapter Bracket: Route wires through the Doorbell Adapter Bracket** (specific to your selected doorbell). Align this bracket onto the angled face of the mounted Corner Base. Attach using the small screws provided (likely **#4 screws / PH1 driver**).
    Tighten screws snugly until bracket is flush and secure.
Wire Doorbell: Connect wires to your video doorbell per its manufacturer's instructions. Tuck excess wire into the mount's cavity.Attach Doorbell to Adapter Bracket:Align your doorbell (or its specific backplate if used) with the pre-drilled holes on the custom Doorbell Adapter Bracket.Secure the doorbell/plate using the small screws PROVIDED WITH THIS MOUNT (typically #4 / PH1 driver).DO NOT USE screws that came with your doorbell for THIS step unless specified for your model's backplate.Replace your doorbell's cover/faceplate.Use correct PH1 driver. Tighten gently to avoid stripping.Final Check & Power On: Ensure doorbell is securely mounted. Turn power back on (if applicable) and test.

Follow safety rules & your doorbell's specific guidelines. Use appropriate wall anchors. Correct screwdriver size is key.

Enhance Your Home with the Corner Doorbell Mount

Perfect Design for Tight Spaces

The Corner Doorbell Mount is strategically designed to fit snugly in tight areas such as beside storm doors or in narrow corners. With a 15º outward angle and 1" extension, this mount is ideal for those tricky spots, ensuring your doorbell remains accessible and aesthetically pleasing.

Durable Construction for Long-Lasting Use

This Corner Doorbell Mount is built to last, featuring robust PETG materials that resist the elements. You can trust this mount to keep your doorbell secure and functional through harsh weather, ensuring it works whenever you need it.

Easy Installation and Versatile Fit

Installing the Corner Doorbell Mount is straightforward. Its user-friendly design and included instructions allow for a stable attachment point on trim or near brick. The system adapts to various doorbell models (select yours!) for a seamless fit.

Optional Add-ons & Customizations:

Enhance your installation (verify compatibility for 3/4" base if needed):

  • Color Change Request Add-on
    Custom Color

    Standard Black. For White, Brown, Grey, or other colors, add this service.

    • Visualization & Installation Help

    Conceptual image:

    Example of doorbell angled in a corner

    Questions? Need Fit Confirmation or Customization?

    Please send pictures of your doorbell and mounting area if you're unsure about fit, especially with the corner placement and doorbell size!

    Default Color: Black. For other colors (SimpliSafe/Wyze default White, others available), add the Color Change Request item.

    Doorbell Not Included. Includes the 15° angled corner mount base, doorbell-specific top adapter bracket, and assembly screws.

    Material: Printed in durable, outdoor-rated PETG (superior to PLA).

    3D Printed Quality: While usually fantastic, minor cosmetic imperfections are inherent to 3D printing and don't affect function. We'll gladly replace if you're unhappy with quality.

    Order your 15° Fixed Corner Mount today for a perfect fit in tight spaces! Remember to select your doorbell model.
