0-35° Adjustable Swivel Mount with Slotted Holes — Reuse Your Old Doorbell’s Screw Holes
Upgrade the Doorbell, Keep the Holes
Replacing an old doorbell shouldn’t mean drilling fresh holes next to the ones already in your wall. This 0-35° adjustable swivel mount rides on a slotted base that fits existing screw spacing from 2" to 2-3/8" — the spacing used by roughly 80% of older doorbells. Line the slots up, drive the screws, then use the 0-35° dual-axis head to aim your new video doorbell exactly where the action happens. Includes the custom adapter bracket for the doorbell model you select. Made in the USA, ships in 2-3 business days, free shipping on orders over $100.
Slotted Holes — Reuse Your Old Doorbell’s Screw Holes
This version of our 0-35° swivel line swaps the standard fixed-hole base for a slotted base: two vertical slots that accept any screw spacing from 2" to 2-3/8" (center-to-center). That range covers roughly 80% of older doorbells — so you can remove the old unit, line the slots up with the holes that are already in your wall, and screw the new mount straight in. No new drilling, no patching, no anchors in fresh brick or siding.
Not sure of your spacing? Measure center-to-center between your two existing screw holes, or text us a photo with a tape measure and we’ll confirm before you order.
Custom Bracket for Your Doorbell – Please Select Your Model
Pick your doorbell from the Doorbell Model list above and we include the exact adapter bracket for it — Ring, Google Nest, Blink, Eufy, Wyze, Arlo, Reolink, TP-Link Tapo, Ubiquiti UniFi and more. Don’t see yours? Choose Other (Not Listed) and text a photo of your doorbell to 833-326-6868.

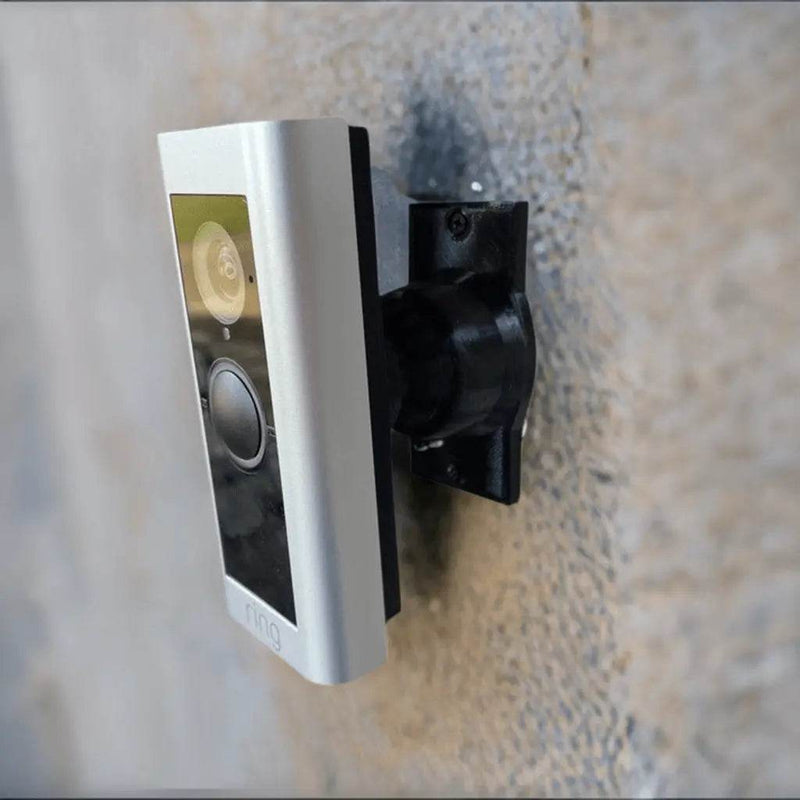

Dual-Axis Swivel: Precision Aiming from 0-35 Degrees
The head tilts and rotates up to 35 degrees off the wall in any direction — enough to pull a walkway, driveway edge or porch step into frame without the fisheye distortion of wedge stacks. Set the angle once and lock it with the set screws.
Mount Specifications
- Base Width: 1.5 inches (slimmer than our standard 1.8" base)
- Base Height: 3.1 inches
- Slotted Wall Holes: fit any vertical screw spacing from 2" to 2-3/8" (center-to-center) — covers roughly 80% of older doorbell installs
- Material: UV-stabilized outdoor PETG, 3D-printed in the USA
- Need the standard fixed-hole base (2-5/8" spacing) instead? See the Customization section below.
Key Features & Benefits
- Slotted 2"–2-3/8" wall holes — reuse existing screw holes from ~80% of old doorbells; zero new drilling.
- Model-specific adapter bracket included — select your doorbell and the right bracket ships with the mount.
- 0-35° dual-axis adjustment — tilt and swivel to pull walkways, porches and package drop zones into frame.
- Set-screw locking — your aim stays put through door slams, wind and deliveries.
- Outdoor-rated PETG, made in the USA — UV-stabilized, weather-resistant, 3D-printed to order; ships in 2-3 business days, free shipping on orders over $100.
Installation — Reusing Your Existing Holes
- Power Off (wired doorbells): Turn OFF the doorbell circuit at the breaker and verify with a multimeter.
- Remove the old doorbell: Unscrew your old doorbell or bracket and leave the two wall screws/anchors in place if they are sound, or back the screws out for reuse.
- Align the slots: Place the slotted base over your existing holes — the slots cover any vertical spacing from 2" to 2-3/8" center-to-center. Level the base, then drive the screws through the slots. Do not overtighten.
- Route the wires: Feed existing 16-24V wires through the center opening of the base (wired models).
- Attach your doorbell’s adapter bracket: Fasten the included model-specific adapter bracket using the four small #4 screws — use a #1 Phillips PRECISION screwdriver. Screws come preinstalled in the bracket in most cases so you can see exactly where each one goes.
- Connect and seat the doorbell: Connect the wires (polarity does not matter for AC), then secure the doorbell to the bracket with the provided screws.
- Aim and lock: Loosen the pivot, aim the doorbell where you need it (0-35 degree frontal tilt), and snug the set screws.
Frequently Asked Questions
✔ Replacement Guarantee — The Right Part, Guaranteed
Send a picture of your install area and your doorbell BEFORE you order. We’ll send you the exact link to what you need. If you order and it doesn’t fit, we’ll send the correct part at NO ADDITIONAL COST.
- Before you order: Text or email pictures of (1) your install location and (2) your doorbell. We’ll confirm the exact product/variant that fits and send a direct link.
- If the part doesn’t fit: Send a picture of the doorbell and a picture of how the part doesn’t fit. We’ll ship the correct replacement at no extra cost.
- How to send pictures: Upload them on this listing during checkout, OR text/email them to 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).
This guarantee covers fitment issues only. We can’t replace parts damaged during install or after install.
Got Questions or Need a Special Fit?
We’re here to help before and after your order. Email shop@doorbellmount.com or call/text 833-326-6868. Every mount ships in Black — want a different color? Add the Color Change Request to your order.
Slotted Range Note: The slotted wall holes accept vertical screw spacing from 2" up to 2-3/8" (center-to-center). If your existing holes are outside this range, our standard fixed-hole mount (2-5/8" spacing) or a fresh install may be the better path — text us a photo and we’ll confirm.
3D-Printed Parts: Mounts are 3D-printed to order in UV-stabilized PETG. Minor layer lines are normal and do not affect strength or weather resistance.
Order your slotted-hole swivel mount today — new doorbell, old holes, perfect aim.
