Brick Face Extension for Ring Wired Doorbell Pro PoE (2026) | Retinal 4K + PoE | Custom Depth | Extend to Face of Bricks

$46.00
$35.00
Brick Face Extension for the Ring Wired Doorbell Pro PoE (2026) — Cat-5e Pass-Through, Flush Brick Mount ✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee Cat-5e Pass-Through Brick Face Extension for the...
Availability: Many In Stock
Product Type: Brick Face Mount

Brick Face Extension for the Ring Wired Doorbell Pro PoE (2026) — Cat-5e Pass-Through, Flush Brick Mount

✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee

Cat-5e Pass-Through Brick Face Extension for the Wired Pro PoE — Sensor Sits Flush

Running PoE to a recessed install behind brick? This Brick Face Extension for the Ring Wired Pro PoE routes a single Cat-5e cable through the back-to-front cavity and ends flush with the brick face — no awkward recess, no exposed cable. Custom-cut depth: measure your trim-to-brick gap, subtract 1 inch (doorbell thickness), and pick that variant.

Designed for the Ring Wired Pro PoE (Amazon ASIN B0F7TFNLD1) — the first Ring doorbell with native 802.3af PoE. The center pass-through is sized for a Cat-5e cable with the RJ45 already crimped. 3D-printed in the USA from UV-stable PETG, freeze-tolerant. Free shipping over $100, ships in 2-3 business days, Replacement Guarantee included.

CRITICAL: How to Measure for Brick Face Extensions

Brick Face Extensions are custom-cut to your exact depth. Measuring is the most important step — if the depth is wrong, the doorbell won’t sit flush. Two methods:

How to measure trim to brick face for Wired Pro PoE brick face extension
Method A — You HAVE your doorbell: Hold the doorbell against the brick face. Measure from the wood trim (where the bracket base will mount) to the BACK of the doorbell. Order that exact length.
Method B — You DON’T have your doorbell yet: Measure from the wood trim straight to the FRONT face of the brick. Then subtract 1 inch for the doorbell’s depth. Order that result.

Example: If trim sits 3 inches behind the brick face, order the 2-inch extension — the doorbell’s 1-inch body added to the 2-inch extension equals 3 inches, putting the front of the doorbell flush with the brick face.

Not sure? Send a photo and your measurement to shop@doorbellmount.com — we’ll confirm the right depth before you order. Wrong size? Replacement Guarantee covers a free swap.

Compatibility — Custom-Cut for the Ring Wired Doorbell Pro PoE (Retinal 4K + PoE)

  • This brick face extension is custom-cut for the Ring Wired Doorbell Pro PoE (2026) — Amazon ASIN B0F7TFNLD1. Ring’s first PoE-capable wired doorbell with Retinal 4K and 802.3af Power over Ethernet.
  • Does NOT fit: the Wired 2nd Gen, the Wired Plus 2nd Gen, the Wired Pro 3rd Gen, the Wired Elite, the older Ring Pro / Pro 2, or any battery Ring doorbell. Each Ring model has its own dedicated brick face extension on our store.
  • Not sure which Ring you have? Send a photo of the back of your doorbell to shop@doorbellmount.com — we’ll confirm fit before you order.
Don’t have the doorbell yet? Buy the Ring Wired Doorbell Pro PoE on Amazon →

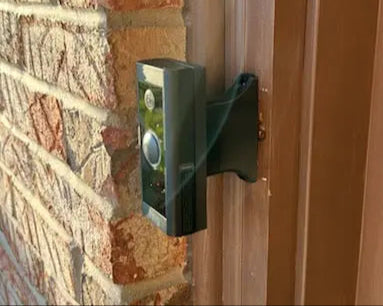

Brick Face Extension — The Doorbell Sits Flush with the Brick

This is the right pick when your doorbell would otherwise be recessed BEHIND the front face of the brick. Common when the trim or mounting surface sits significantly behind the brick face (often more than 1.5"). The extension fills that gap so the doorbell ends flush with the brick.

Pick the right offset for your install: Use Standard Offset Brick Mount if you only need to push the doorbell forward a bit (clear a storm door). Use Full Offset Brick Mount if your install is on the side of a brick edge or you need wider clearance. Use this Brick Face Extension if your doorbell would be recessed and you want it FLUSH with the brick face.

Brick Face Extension Dimensions & Material

  • Front Face Width: Sized to fit your specific doorbell model (custom adapter bracket on front)
  • Base Width: 9/16 inch (slim profile, fits cleanly within standard wood trim)
  • Depth: Custom-cut from 1-1/2 inch up to 8 inches in 1/8 inch increments
  • Pricing: Scales with depth from $30 (1-1/2") up to $110 (8")
  • Base Mounting: 2 holes in the rear of the base, designed to anchor in WOOD TRIM with #6 screws (#2 Phillips driver)
  • Optional Brick Anchor: 1 hole in the side of the extension for an optional brick face screw (recommended for extensions over 3" or any battery doorbell)
  • Material: UV-stable PETG, 3D-printed in the USA, freeze-tolerant

Key Features & Benefits

  • Custom-Cut Depth: 45 sizes from 1-1/2" to 8" in 1/8" increments — pick your exact gap.
  • Flush Brick Face Install: Doorbell sits flush with the brick face, not recessed.
  • Custom-Fit Front Bracket: Adapter bracket sized exactly for your doorbell model on the front face.
  • Trim-Mount Rear: Back anchors into wood trim with 2 #6 screws — no masonry drilling required for most installs.
  • Optional Brick Face Anchor: 1 side hole for a brick anchor screw (recommended for >3" extensions or battery installs).
  • Internal Wire Routing: 16-24V AC doorbell wires (or PoE) route through the back-to-front cavity — no exposed wiring at the joint.
  • Complete Hardware Kit: 2× #6 base screws, 4× #4 small screws (preinstalled in adapter bracket), doorbell-mount screws.
  • UV-Stable PETG: Freeze-tolerant 3D-printed PETG — real-world brick face installs at 4+ years and counting.
  • Made in the USA: 3D-printed to-order in the USA. No inventory wait, no overseas shipping.
  • Replacement Guarantee: If your measurement is off, we ship the right depth at no extra cost.

Customization & Add-On Options

Brick face installs can be tricky. Add-ons for tough cases:

Installing Your Brick Face Extension on the Ring Wired Doorbell Pro PoE

  1. Prepare: If a Ring doorbell is already installed, remove it. For wired installs: turn OFF power at the breaker, disconnect the existing 16-24V wires, cap with wire nuts.
    For the Wired Pro PoE: doorbell needs Pro PoE supports either 16-24V AC OR 802.3af PoE (44-57V DC over Cat-5e). For PoE installs, route a single Cat-5e through the center hole — no separate transformer needed. For AC installs, 30VA transformer recommended.
  2. Route Wires: Lead the existing 16-24V doorbell wires through the rear of the brick face extension and out the front opening. Make sure the wires reach into the doorbell’s back cavity with a few inches of slack for connection.
  3. Mount the Extension Base: Position the back of the extension over the wood trim (or recessed mounting surface) where your old doorbell was. The base anchors to the trim with 2 provided #6 wood screws using a #2 Phillips screwdriver. The front face will sit flush with (or just inside) the front face of the brick.
    For deeper extensions (over 3 inches), drive the optional brick anchor screw through the extension into the brick face for extra pull-out strength. This is recommended on any extension over 3" or any battery doorbell install.
  4. Attach the Mounting Bracket: Fasten the Wired Pro PoE adapter bracket to the front of the extension using the 4 small #4 center screws (preinstalled). USE #1 Phillips PRECISION screwdriver for the smaller screws.
  5. Connect the Doorbell: Strip the wires (1/4" stripping) and connect to the Wired Pro PoE terminals. Polarity does NOT matter for AC. Tuck excess wire neatly behind the doorbell.
  6. Secure and Finalize: Mount the Ring Wired Doorbell Pro PoE to the bracket using the screws PROVIDED WITH THIS MOUNT (not the original Ring screws). Reinstall the cover. Apply silicone caulk along the back perimeter where the extension meets the trim/brick if needed (skip the bottom edge for drainage). Restore power. Open the Ring app → Live View. Verify framing and redraw motion zones.

Tools recap: #2 Phillips screwdriver (#6 wood screws into trim), #1 Phillips PRECISION screwdriver (#4 adapter screws and doorbell screws), drill (optional pilot holes), level, multimeter (wired models), clear silicone caulk. OPTIONAL only for deep extensions or battery installs: 1/8" masonry bit + brick anchor screw.

FAQ — Ring Wired Doorbell Pro PoE Brick Face Extension

Will this brick face extension fit the Ring Wired Doorbell Pro PoE?
Yes. The front-face mounting plate is shaped for the Ring Wired Doorbell Pro PoE (Amazon ASIN B0F7TFNLD1). For other Ring models, see our model-specific brick face extension listings.
How do I measure for the right depth?
Measure from the surface where the bracket base will mount (the wood trim, or recessed surface where the old doorbell was) straight out to the FRONT FACE of the brick. THEN subtract 1 inch (the thickness of the doorbell itself) and pick the variant matching that result. Example: if your trim sits 3 inches behind the brick face, order the 2 inch extension — the doorbell will then sit flush with the brick. If your doorbell isn’t in hand yet, just measure trim-to-brick-face and subtract 1 inch.
How is the Brick Face Extension different from the Standard Offset and Full Offset?
The Standard Offset ($38) and Full Offset ($50) push your doorbell PAST the face of the brick (small to medium projection forward). The Brick Face Extension (this listing, $30-$110) extends from a recessed mounting surface OUT TO the brick face so the doorbell sits flush with the brick. Pick Standard/Full Offset if your trim sits at or near the brick face. Pick Brick Face Extension if your doorbell would otherwise be recessed in a hole.
What if I order the wrong depth and it doesn’t fit?
Send us a picture of your install attempt and the doorbell. Under our Replacement Guarantee, we’ll ship the correct depth at NO additional cost. Just reach out via text/email before installing the wrong one (so we can re-print at the right depth).
What screwdriver do I need for the small bracket screws?
A #1 Phillips PRECISION screwdriver. The #4 center screws that attach the doorbell adapter bracket to the extension front are too small for a regular #1 Phillips — you need a precision driver (the kind used for eyeglasses or electronics). A regular #1 will be too big and strip the screw heads.
Is the brick face extension weatherproof?
Yes — UV-stable PETG (not PLA), freeze-tolerant across normal North American climate ranges. Apply a small bead of clear silicone along the top and side edges if needed (skip the bottom edge for drainage). Real-world brick face installs are 4+ years and counting.
Do I lose any Ring features (HDR / Smart Notifications / Live View) using this extension?
No. The extension is a passive 3D-printed PETG part with no electronics. All Ring Wired Doorbell Pro PoE features — Retinal 4K + PoE head-to-toe view, motion zones, Smart Notifications, Live View — work exactly as on the stock plate. After install, redraw motion zones to match the new mounting position.
Can I get this in a brick-matching color?
Default ships in Black. For brick-matching prints (red, tan, or gray), use the Color Change Request product at checkout. Custom color adds 1-2 days to fulfillment but matches your brick exactly.
What depths are available?
From 1-1/2 inch to 8 inches in 1/8 inch increments. The default 2 inch size is the most common pick for standard 3-inch brick where the trim sits ~1 inch behind the brick face. Pricing scales with depth from $30 (1-1/2 inch) up to $110 (8 inch).

✔ Replacement Guarantee — The Right Depth, Guaranteed

Send a picture of your install area BEFORE you order. We’ll confirm the exact depth that fits. If you order and the depth is wrong, we’ll send the correct one at NO ADDITIONAL COST.

  • Before you order: Text or email pictures of (1) your install location and (2) your measurement. We’ll confirm the exact depth and send a direct link.
  • If the depth is wrong: Send a picture showing the gap. We’ll ship the correct depth at no extra cost.
  • How to send pictures: Upload them on this listing during checkout, OR text/email 833-326-6868 / shop@doorbellmount.com. Send before purchase or immediately after (must arrive before we ship).

This guarantee covers fitment/depth issues only. We can’t replace parts damaged during install or after install.

Need to Buy the Doorbell, Tools, or Caulk?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help with a Brick Face Install?

Brick face installs are tricky. Send pictures — we’ll confirm the right depth before you order:

Standard Color: Ships in Black. For brick-matching prints (red, tan, gray), use the Color Change Request.

Install Note: The base mounts into wood trim with #6 screws. The brick face is preserved — only the optional side anchor screw contacts the brick (and only when used).

3D-Printed Parts: Minor cosmetic variations or layer lines may be present and do not affect strength or weather resistance.

Add yours today — Brick Face Extension for the Ring Wired Doorbell Pro PoE — flush brick install, free shipping over $100, Replacement Guarantee included.
