Standard Offset Brick Extension for Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) | Custom Depth

$51.00
$39.00
Standard Offset Brick Extension for the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) — Custom Depth Brick Install ✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee Standard Offset Brick Mount Engineered...
Availability: Many In Stock
Product Type: Brick Mount

Standard Offset Brick Extension for the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) — Custom Depth Brick Install

✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee

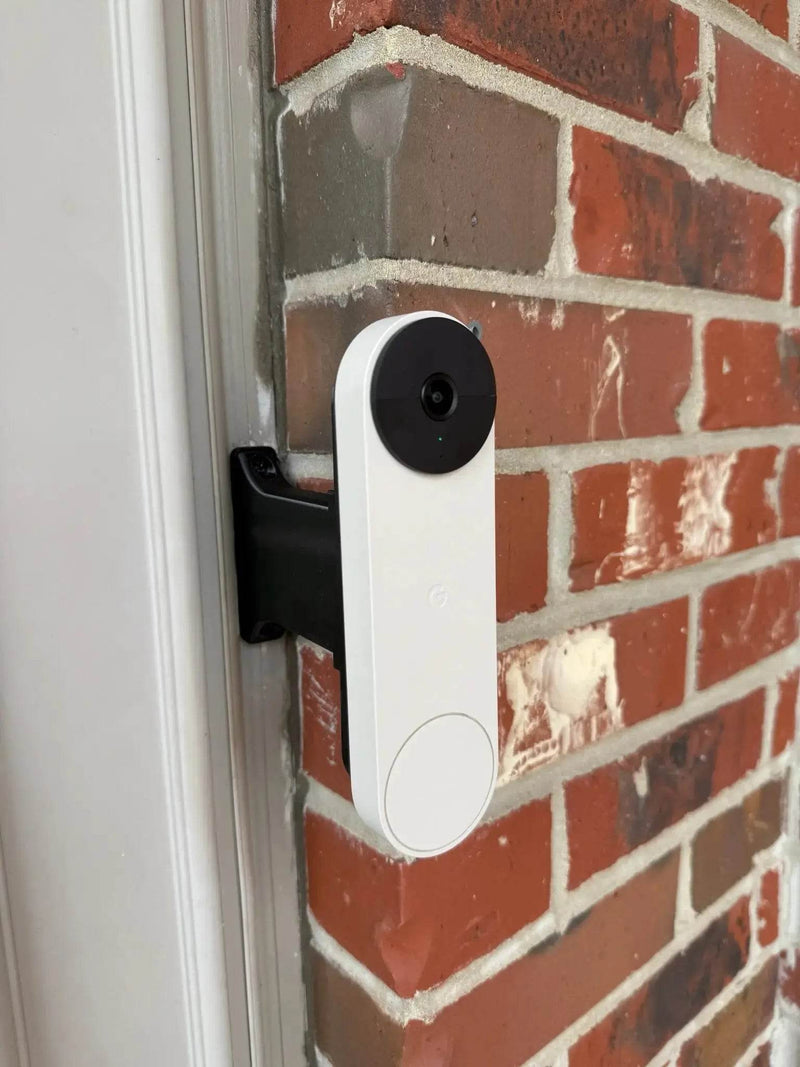

Standard Offset Brick Mount Engineered for the Nest Wired Gen 3

The Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) has a 2K HDR with Gemini AI sensor and 152-degree field of view, and brick installs benefit from getting the doorbell projection right. This Standard Offset Brick Extension is custom-cut for your exact gap from 3/4" up to 8" in 1/8" increments, with a slim 9/16" base that fits standard wood trim. Front bracket sized exactly for the Nest Wired Gen 3 mounting back — no shimming, no improvising.

Engineered for the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) (Amazon ASIN B0F4ZQHQVQ). 3D-printed to-order in the USA from UV-stable PETG, freeze-tolerant. Free shipping on orders over $100, ships in 2-3 business days, Replacement Guarantee covers a depth swap if your measurement is off.

Compatibility — Custom-Cut for the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini)

  • This Standard Offset extension is custom-cut for the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) — Amazon ASIN B0F4ZQHQVQ. Google’s 2025 flagship wired doorbell with 2K HDR, head-to-toe view, on-device Gemini AI, and free 6-month Google Home Premium. SKUs GA09967-US / GA09968-US / GA09969-US (3 colors).
  • Does NOT fit: the Nest Hello (1st Gen), Nest Wired Gen 2, or Nest Battery/Wireless. The Gen 3 (Gemini) has a refined back-plate spec and needs its own bracket.
  • Not sure which Nest you have? Send a photo of the back of your doorbell to shop@doorbellmount.com — we’ll confirm fit before you order.
Don’t have the doorbell yet? Buy the Google Nest Wired Doorbell (3rd Gen, 2025, Gemini) on Amazon →

Standard Offset Brick Mount — Push Past Storm Doors and Trim

Standard Offset is the most popular brick mount choice. It pushes the doorbell forward enough to clear storm doors, weather stripping, and most trim — without the deeper projection of Full Offset. Default 3 inch size fits the majority of installs.

Pick the right offset for your install: Use Standard Offset ($38-$120) to clear a storm door or trim. Use Full Offset ($50-$140) for maximum projection past brick edges. Use Brick Face Extension ($30-$110) if your doorbell would be recessed BEHIND the brick face and you want it flush with the brick.

Standard Offset Brick Extension Dimensions & Material

  • Front Face Width: Sized to fit the Nest Wired Gen 3 mounting back exactly
  • Base Width: 9/16 inch (slim profile, fits within standard wood trim)
  • Projection Depth: Custom-cut from 1/4 inch up to 8 inches in 1/8 inch increments
  • Pricing: Scales with depth from $38 to $120
  • Base Mounting: 2 holes, anchor in WOOD TRIM with #6 screws (#2 Phillips driver)
  • Material: UV-stable PETG, 3D-printed in the USA, freeze-tolerant

Customization & Add-On Options

Installing Your Standard Offset Brick Extension on the Nest Wired Gen 3 (Gemini)

  1. Prepare: Turn OFF power at the breaker. Disconnect existing 16-24V wires.
    Nest Wired Gen 3 (Gemini) requires 16-24V AC. The Gemini AI processing benefits from a solid 30VA transformer for smooth on-device inference.
  2. Route Wires: Lead the 16-24V wires through the rear of the brick extension and out the front.
  3. Mount the Extension Base: Anchor the back over wood trim with 2 provided #6 wood screws using a #2 Phillips screwdriver.
  4. Attach the Mounting Bracket: Fasten the Nest Wired Gen 3 adapter bracket to the front using the 4 small #4 center screws. USE #1 Phillips PRECISION screwdriver.
  5. Connect the Doorbell: Strip wires (1/4 inch) and connect to the Nest Wired Gen 3 terminals. Polarity does NOT matter for AC.
  6. Secure and Finalize: Mount the Nest Wired Gen 3 to the bracket. Reinstall cover. Open the Google Home app → Live View. Verify framing.

FAQ — Nest Wired Gen 3 (Gemini, 2025) Standard Offset Brick Extension

Will this Standard Offset fit the Nest Wired Gen 3 (Gemini)?
Yes. The front-face mounting plate is shaped for the Google Nest Wired 3rd Gen Gemini doorbell (SKUs GA09967-US / GA09968-US / GA09969-US, 2025).
How do the three brick mount types compare?
Standard Offset ($38-$120) clears storm doors and trim. Full Offset ($50-$140) projects further. Brick Face Extension ($30-$110) sits flush when recessed behind brick.
What if I order the wrong depth?
Send us a picture before installing. Under our Replacement Guarantee, we will ship the correct depth at NO additional cost.
Is the brick extension weatherproof?
Yes — UV-stable PETG, freeze-tolerant. Real-world installs at 4+ years.
Do I lose any Gemini AI features using this extension?
No. The extension is a passive 3D-printed PETG part with no electronics. All Gemini AI features — 2K HDR, head-to-toe view, on-device intelligence, motion zones, Live View — work exactly as on the stock plate.
What depths are available?
From 1/4 inch to 8 inches in 1/8 inch increments. Default 3 inch. Pricing $38-$120.

✔ Replacement Guarantee — The Right Depth, Guaranteed

Send a picture of your install area BEFORE you order. We’ll confirm the exact depth that fits.

Need to Buy the Doorbell, Tools, or Caulk?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help Picking the Right Depth?

Email: shop@doorbellmount.com | Text/Call: 1-833-326-6868

Order your Standard Offset Brick Extension for the Nest Wired Gen 3 (Gemini, 2025) today — free shipping over $100, Replacement Guarantee included.
