Full Offset Brick Extension for Ring Wired Doorbell Plus (2nd Gen, 2025) | Retinal 2K | Custom Depth | Storm Door Clearance

$64.00
$49.00
Full Offset Brick Extension for Ring Wired Doorbell Plus (2nd Gen, 2025) — Maximum Side-Trim Clearance ✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee Maximum Projection Brick Mount for the Wired Plus...
Availability: Many In Stock
Product Type: Brick Mount

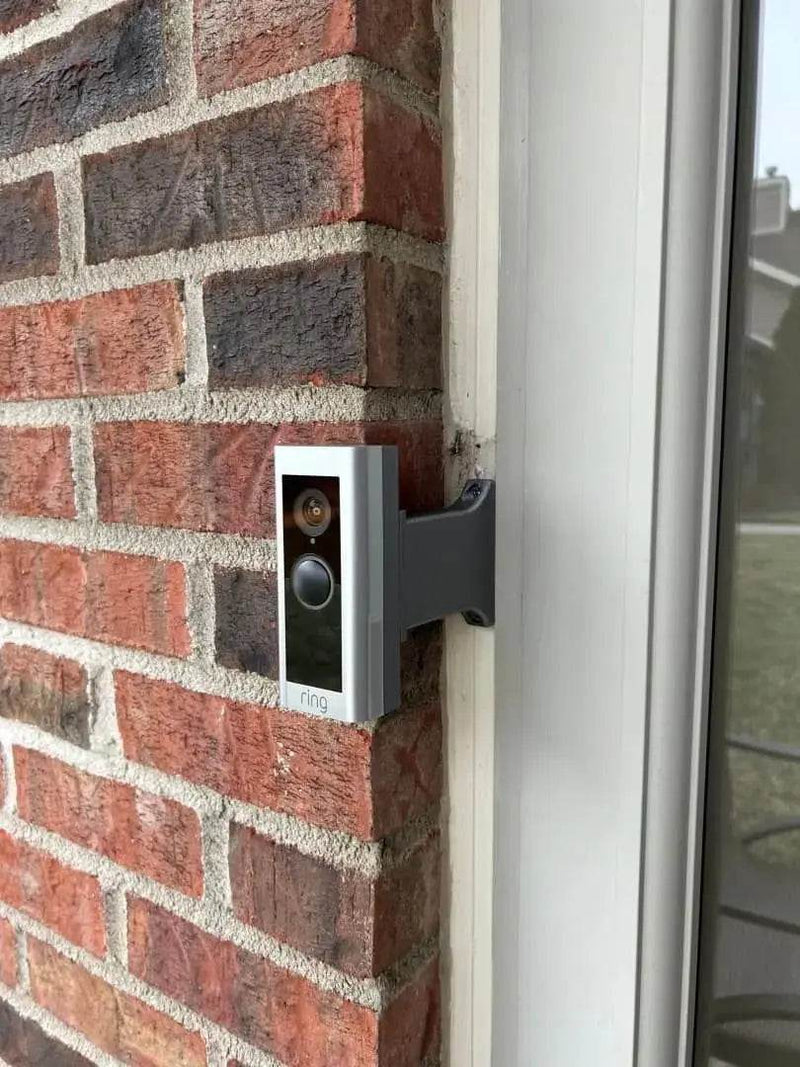

Full Offset Brick Extension for Ring Wired Doorbell Plus (2nd Gen, 2025) — Maximum Side-Trim Clearance

✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee

Maximum Projection Brick Mount for the Wired Plus 2nd Gen — Get Past the Brick Edge

Doorbell sitting too close to a brick edge or storm-door swing arc? This Full Offset Brick Extension for the Ring Wired Doorbell Plus 2nd Gen pushes the doorbell out further than a Standard Offset can reach — ideal when the brick juts out, the trim is set deep, or you need the camera to swing past a wide storm door. Pick the depth that matches your gap from 1/4" up to 8".

Built for the Ring Wired Plus 2nd Gen (Amazon ASIN B0F9CN26NX) with Retinal 2K Color Night Vision and head-to-toe view. 3D-printed in the USA from UV-stable PETG, freeze-tolerant. Free shipping over $100. Replacement Guarantee covers a swap if your depth is off.

Compatibility — Custom-Cut for the Ring Wired Doorbell Plus 2nd Gen (Retinal 2K)

  • This Full Offset extension is custom-cut for the Ring Wired Doorbell Plus (2nd Gen, 2025) — Amazon ASIN B0F9CN26NX. Ring’s mid-tier wired doorbell with Retinal 2K Color Night Vision and 3D Motion.
  • Does NOT fit: the Wired 2nd Gen, the Pro 3rd Gen / Pro PoE, the Wired Elite, the older Ring Pro / Pro 2, the older Wired Plus / Pro Original, or any battery Ring doorbell. Each Ring model has its own dedicated Full Offset extension on our store.
  • Not sure which Ring you have? Send a photo of the back of your doorbell to shop@doorbellmount.com — we’ll confirm fit before you order.
Don’t have the doorbell yet? Buy the Ring Wired Doorbell Plus 2nd Gen on Amazon →

Full Offset vs. Standard Offset vs. Brick Face

This is the Full Offset variant — the deepest projection brick mount we make. Use it when you need the doorbell pushed maximally out from the wall.

Pick the right offset for your install: Use Standard Offset Brick Mount ($38) if you only need a small bump forward to clear a normal storm door. Use this Full Offset ($50-$140) when you need maximum projection — wide storm doors, brick edge corners, side-trim obstructions. Use Brick Face Extension ($30-$110) if your doorbell would be recessed BEHIND the brick face and you want it flush with the brick.

Full Offset Brick Extension Dimensions & Material

  • Front Face Width: Sized to fit your specific doorbell model (custom adapter bracket on front)
  • Base Width: 9/16 inch (slim profile, fits cleanly within standard wood trim)
  • Projection Depth: Custom-cut from 1/4 inch up to 8 inches in 1/8 inch increments
  • Pricing: Scales with depth from $50 (1/4") up to $140 (8")
  • Base Mounting: 2 holes in the rear of the base, designed to anchor in WOOD TRIM with #6 screws (#2 Phillips driver)
  • Material: UV-stable PETG, 3D-printed in the USA, freeze-tolerant

Key Features & Benefits

  • Custom-Cut Depth: 52 sizes from 1/4" to 8" in 1/8" increments — pick the exact projection.
  • Maximum Storm-Door Clearance: Full Offset projects further than Standard Offset, swings clear of wide storm doors.
  • Custom-Fit Front Bracket: Adapter bracket sized exactly for your doorbell on the front face.
  • Trim-Mount Rear: Back anchors into wood trim with 2 #6 screws — no masonry drilling.
  • Internal Wire Routing: 16-24V AC doorbell wires route through the back-to-front cavity — no exposed wiring.
  • Complete Hardware Kit: 2× #6 base screws, 4× #4 small screws, doorbell-mount screws.
  • UV-Stable PETG: Freeze-tolerant 3D-printed PETG — real-world installs at 4+ years and counting.
  • Made in the USA: 3D-printed to-order in the USA. No inventory wait.
  • Replacement Guarantee: If your measurement is off, we ship the right depth at no extra cost.

Customization & Add-On Options

Installing Your Full Offset Brick Extension on the Ring Wired Doorbell Plus 2nd Gen

  1. Prepare: Turn OFF power at the breaker. Remove existing doorbell. Disconnect 16-24V wires and cap with wire nuts.
    For the Wired Plus 2nd Gen: doorbell needs 16-24V AC, 10-40VA. 30VA transformer recommended for full Color Night Vision performance.
  2. Route Wires: Lead the existing 16-24V doorbell wires through the rear of the brick extension and out the front opening with a few inches of slack.
  3. Mount the Extension Base: Position the back of the extension over the wood trim. The base anchors with 2 provided #6 wood screws using a #2 Phillips screwdriver.
    For deep projections (over 4 inches), pre-drill 1/8 inch pilot holes to prevent trim splitting.
  4. Attach the Mounting Bracket: Fasten the Wired Plus 2nd Gen adapter bracket to the front of the extension using the 4 small #4 center screws (preinstalled). USE #1 Phillips PRECISION screwdriver.
  5. Connect the Doorbell: Strip wires (1/4 inch) and connect to the Wired Plus 2nd Gen terminals. Polarity does NOT matter for AC.
  6. Secure and Finalize: Mount the Ring Wired Doorbell Plus 2nd Gen to the bracket using the screws PROVIDED WITH THIS MOUNT. Reinstall cover. Apply silicone caulk along top/sides if needed (skip bottom for drainage). Restore power. Open Ring app → Live View. Verify framing and redraw motion zones.

Tools recap: #2 Phillips, #1 Phillips PRECISION, drill (optional), level, multimeter, clear silicone caulk.

FAQ — Ring Wired Doorbell Plus 2nd Gen Full Offset Brick Extension

Will this Full Offset fit the Ring Wired Doorbell Plus 2nd Gen?
Yes. The front-face mounting plate is shaped for the Ring Wired Doorbell Plus 2nd Gen (Amazon ASIN B0F9CN26NX). For other Ring models, see our model-specific Full Offset listings.
How much projection does Full Offset give compared to Standard Offset?
The Full Offset projects roughly 1-1/8 inches further out from the wall than the Standard Offset at the same nominal "depth" choice. Standard Offset starts at $38 and tops at $120. Full Offset starts at $50 and tops at $140. Pick Full Offset when you need extra clearance for a wide storm door swing or to push the camera past a brick edge.
What if I order the wrong depth?
Send us a picture before installing. Under our Replacement Guarantee, we will ship the correct depth at NO additional cost.
What screwdriver do I need?
#2 Phillips for the #6 wood screws, #1 Phillips PRECISION for the #4 adapter screws (regular #1 will strip the heads).
Is the brick extension weatherproof?
Yes — UV-stable PETG, freeze-tolerant. Real-world installs are 4+ years and counting. Apply clear silicone along top/sides if needed; skip the bottom edge for drainage.
Do I lose any Ring features using this extension?
No. The extension is a passive 3D-printed PETG part with no electronics. All Ring Wired Doorbell Plus 2nd Gen features — Retinal 2K, head-to-toe view, motion zones, Live View — work exactly as on the stock plate. After install, redraw motion zones.
Can I get this in a brick-matching color?
Default ships in Black. For brick-matching prints (red, tan, gray), use the Color Change Request product at checkout.
What depths are available?
From 1/4 inch to 8 inches in 1/8 inch increments. The default 3 inch is the most common pick. Pricing scales from $50 (1/4 inch) up to $140 (8 inch).

✔ Replacement Guarantee — The Right Depth, Guaranteed

Send a picture of your install area BEFORE you order. We’ll confirm the exact depth that fits. If you order and the depth is wrong, we’ll send the correct one at NO ADDITIONAL COST.

  • Before you order: Text/email pictures of (1) install location and (2) measurement to 833-326-6868 / shop@doorbellmount.com.
  • If wrong: Send a picture and we’ll ship the correct depth free.

Covers fitment/depth issues only. Cannot replace parts damaged during install.

Need to Buy the Doorbell, Tools, or Caulk?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help Picking the Right Depth?

Standard Color: Ships in Black. For brick-matching prints (red, tan, gray), use the Color Change Request.

Install Note: The base mounts into wood trim with #6 screws.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present.

Add yours today — Full Offset Brick Extension for the Ring Wired Doorbell Plus 2nd Gen — maximum storm-door clearance, free shipping over $100, Replacement Guarantee included.
