Full Offset Brick Extension for Ring Battery Doorbell (2nd Gen, 2026) | Retinal 2K | Custom Depth | Storm Door Clearance

$64.00
$49.00
Full Offset Brick Extension for Ring Battery Doorbell (2nd Gen, 2026) — Storm Door Clearance ✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee Battery-Friendly Maximum Projection Brick Mount for the Ring Battery...
Availability: Many In Stock
Product Type: Brick Mount

Full Offset Brick Extension for Ring Battery Doorbell (2nd Gen, 2026) — Storm Door Clearance

✔ Made in USA✔ Free Shipping Over $100✔ Ships in 2-3 Business Days✔ 30-Day Replacement Guarantee

Battery-Friendly Maximum Projection Brick Mount for the Ring Battery 2nd Gen

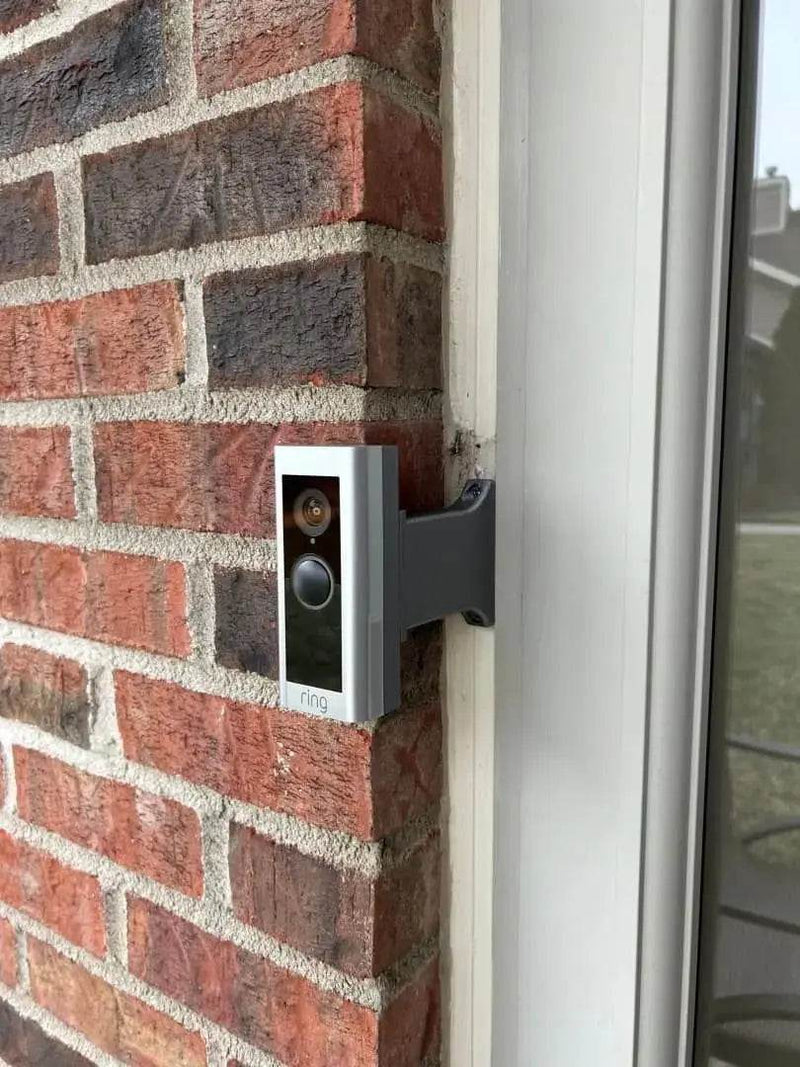

Battery doorbells need a clean line of sight, and a wide storm door swing or brick edge can block the view. This Full Offset Brick Extension for the Ring Battery 2nd Gen pushes the doorbell further out from the wall than a Standard Offset can, swinging clear of obstacles. No wiring required - the back-to-front cavity stays open in case you ever add a trickle-charge cable. Custom-cut depth from 1/4" to 8".

Sized for the Ring Battery 2nd Gen (Amazon ASIN B0G2D1R15Q) with built-in (non-removable) battery, Retinal 2K, head-to-toe view. 3D-printed in the USA from UV-stable PETG, freeze-tolerant. Free shipping over $100. Replacement Guarantee covers a depth swap free.

Compatibility — Custom-Cut for the Ring Battery Doorbell 2nd Gen (Retinal 2K)

  • This Full Offset extension is custom-cut for the Ring Battery Doorbell (2nd Gen, 2026) — Amazon ASIN B0G2D1R15Q. Ring’s entry-level battery doorbell with Retinal 2K, head-to-toe view, and a built-in (non-removable) rechargeable battery.
  • Does NOT fit: the Battery Plus 2nd Gen, the Battery Pro 2nd Gen, the older Battery 1st gen / 2/3/4 / Plus / Pro, the Ring Wired line, or the Ring Stick Up Cam. Each Ring model has its own dedicated Full Offset extension on our store.
  • Not sure which Ring you have? Send a photo of the back of your doorbell to shop@doorbellmount.com — we’ll confirm fit before you order.
Don’t have the doorbell yet? Buy the Ring Battery Doorbell 2nd Gen on Amazon →

Full Offset vs. Standard Offset vs. Brick Face

This is the Full Offset variant — the deepest projection brick mount we make. Use it when you need the doorbell pushed maximally out from the wall.

Pick the right offset for your install: Use Standard Offset Brick Mount ($38) for small bumps forward to clear a normal storm door. Use this Full Offset ($50-$140) when you need maximum projection — wide storm doors, brick edges, side-trim obstructions. Use Brick Face Extension ($30-$110) if your doorbell would be recessed BEHIND the brick face.

Full Offset Brick Extension Dimensions & Material

  • Front Face Width: Sized to fit your specific doorbell model
  • Base Width: 9/16 inch (slim profile, fits within standard wood trim)
  • Projection Depth: Custom-cut from 1/4 inch up to 8 inches in 1/8 inch increments
  • Pricing: Scales with depth from $50 (1/4") up to $140 (8")
  • Base Mounting: 2 holes, anchor in WOOD TRIM with #6 screws (#2 Phillips driver)
  • Material: UV-stable PETG, 3D-printed in the USA, freeze-tolerant

Key Features & Benefits

  • Custom-Cut Depth: 52 sizes from 1/4" to 8" in 1/8" increments.
  • Maximum Storm-Door Clearance: Full Offset projects further than Standard Offset.
  • Custom-Fit Front Bracket: Adapter sized for your doorbell.
  • Trim-Mount Rear: Back anchors into wood trim with 2 #6 screws.
  • Battery-Friendly Cavity: Back-to-front cavity stays open for optional trickle-charge cable routing.
  • Complete Hardware Kit: 2× #6 base screws, 4× #4 small screws, doorbell-mount screws.
  • UV-Stable PETG: Freeze-tolerant - real-world installs at 4+ years and counting.
  • Made in the USA: 3D-printed to-order in the USA.
  • Replacement Guarantee: Free depth swap if measurement is off.

Customization & Add-On Options

Installing Your Full Offset Brick Extension on the Ring Battery Doorbell 2nd Gen

  1. Prepare: Pop the battery out of the existing doorbell and set it aside. No wiring to disconnect.
    Battery 2nd Gen has a built-in non-removable battery - charge via 5V USB-C. To charge without unmounting, an optional trickle-charge cable can route through the back-to-front cavity.
  2. Wire Routing (Optional): Battery installs - skip wiring. If using a trickle-charge cable, lead it through the rear of the extension to the front.
  3. Mount the Extension Base: Position the back of the extension over the wood trim. The base anchors with 2 provided #6 wood screws using a #2 Phillips screwdriver.
    For deep projections (over 4 inches), pre-drill 1/8 inch pilot holes to prevent trim splitting. Battery doorbells are heavier - consider also using the optional brick face anchor screw.
  4. Attach the Mounting Bracket: Fasten the Battery 2nd Gen adapter bracket to the front using the 4 small #4 center screws (preinstalled). USE #1 Phillips PRECISION screwdriver.
  5. Mount the Doorbell: Slot the Battery 2nd Gen body onto the front face of the extension. Verify the battery release access stays clear.
  6. Secure and Finalize: Mount the Ring Battery Doorbell 2nd Gen to the bracket using the screws PROVIDED WITH THIS MOUNT. Reinstall cover. Apply silicone caulk along top/sides if needed (skip bottom for drainage). Open Ring app → Live View. Verify framing and redraw motion zones.

Tools recap: #2 Phillips, #1 Phillips PRECISION, drill (optional), level, clear silicone caulk.

FAQ — Ring Battery Doorbell 2nd Gen Full Offset Brick Extension

Will this Full Offset fit the Ring Battery Doorbell 2nd Gen?
Yes. The front-face mounting plate is shaped for the Ring Battery Doorbell 2nd Gen (Amazon ASIN B0G2D1R15Q). For other Ring models, see our model-specific Full Offset listings.
How much projection does Full Offset give compared to Standard Offset?
The Full Offset projects roughly 1-1/8 inches further out than the Standard Offset. Standard Offset $38-$120. Full Offset $50-$140. Pick Full Offset when you need extra clearance for a wide storm door swing or to push the camera past a brick edge.
Will the battery still come out for charging?
Yes. The bottom of the extension stays open so the Battery 2nd Gen battery release / quick-release slot is fully accessible. You can charge the battery without unmounting the doorbell.
What if I order the wrong depth?
Send us a picture before installing. Under our Replacement Guarantee, we will ship the correct depth at NO additional cost.
What screwdriver do I need?
#2 Phillips for the #6 wood screws, #1 Phillips PRECISION for the #4 adapter screws (regular #1 will strip the heads).
Is the brick extension weatherproof?
Yes - UV-stable PETG, freeze-tolerant. Real-world installs are 4+ years and counting.
Do I lose any Ring features using this extension?
No. The extension is a passive 3D-printed PETG part with no electronics. All Ring Battery Doorbell 2nd Gen features - Retinal 2K, head-to-toe view, motion zones, Live View - work exactly as on the stock plate.
What depths are available?
From 1/4 inch to 8 inches in 1/8 inch increments. Default 3 inch. Pricing $50-$140.

✔ Replacement Guarantee — The Right Depth, Guaranteed

Send a picture of your install area BEFORE you order. We’ll confirm the exact depth that fits. If you order and the depth is wrong, we’ll send the correct one at NO ADDITIONAL COST.

Covers fitment/depth issues only.

Need to Buy the Doorbell, Tools, or Caulk?

Affiliate Disclosure: As an Amazon Associate, DoorbellMount.com earns from qualifying purchases at no extra cost to you.

Questions? Need Help Picking the Right Depth?

Standard Color: Ships in Black. For brick-matching prints (red, tan, gray), use the Color Change Request.

Install Note: Base mounts into wood trim with #6 screws.

3D-Printed Parts: Minor cosmetic variations or layer lines may be present.

Pick up your Full Offset Brick Extension for the Ring Battery Doorbell 2nd Gen today — maximum storm-door clearance, free shipping over $100, Replacement Guarantee included.
