Adjustable Mount

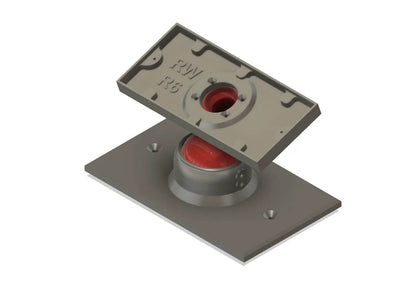

Single Outlet Gang Box with Integrated Adjustable Swivel 90° Mount | Universal Mount

Single Outlet Gang Box with Integrated Adjustable Swivel 90° Mount | Universal Mount

Adjustable Swivel Version for Perpendicular or Side wall Doorbell Inst

$57.50 USD
$50.00 USD $57.50 USD
Sale Sold out
Shipping calculated at checkout.

Gang Box Swivel Doorbell Mount (15-90° Angle) | Select Your Model

Fits Single Gang Boxes! Select Your Doorbell Model.

This Adjustable Swivel Mount features a larger base plate designed to fit standard **Single Outlet Gang Boxes** with 3.281-inch screw hole spacing. It provides a wide **15 to 90 degree** swivel adjustment, perfect for side wall installations.

  • CRITICAL: You MUST Select Your Specific Doorbell Model from the options list to receive the correct custom-fitted top adapter bracket. Compatible with many Ring, Nest, Eufy, Wyze, Blink, etc. models.
  • Mounting Surface: Designed for direct mounting to a Single Gang Electrical Box (or a flat surface drilled with 3.281" hole spacing).
  • Angle Range: This 15-90° version is ideal when your doorbell is on a wall perpendicular to your door, as shown below:
    Diagram showing doorbell on side wall perpendicular to door
  • Is your doorbell on the same wall as your door and needs less angle? 0-35 Degree Swivel Mount for Gang Box (Same Wall) Click here for our 0-35° Gang Box Swivel Mount.

Get the Perfect Sideways View with Our Gang Box Swivel Mount (15-90°)!

Is your video doorbell installed on a single gang box on a side wall, facing away from where visitors approach? Our **15-90° Adjustable Swivel Mount for Single Gang Boxes** is the solution! This mount features a specially designed base plate that fits standard 3.281" gang box hole spacing, allowing for a secure and professional installation directly onto your existing electrical box.

The wide swivel range (approximately 15 to 90 degrees, horizontally and vertically) allows you to precisely aim your doorbell towards the path of approach, ensuring you never miss important activity. Select your doorbell model for a custom-fit top bracket.

Mount Specifications & Adjustment Range

  • Base Type: Large plate designed to fit **Single Gang Electrical Boxes**.
  • Base Mounting Hole Spacing: Standard **3.281 inches** (center-to-center).
  • Swivel Adjustment Range: Approximately **15 to 90 degrees** (Horizontal & Vertical). Ideal for turning the doorbell significantly from its flush-mounted direction.

    (Note: The 90 degrees is relative to the wall; actual maximum angle might vary slightly based on doorbell size and swivel position.)

Key Features & Benefits:

  • Wide 15-90° Swivel Adjustment: Perfect for side wall installations needing significant angle correction (horizontal & vertical).
  • Single Gang Box Compatible Base: Mounts directly to standard gang boxes (3.281" hole spacing).
  • Requires Doorbell Model Selection: Ensures a custom-fit top adapter bracket for your specific device.
  • Clean Wire Passthrough: Center hole in swivel and base allows wires from gang box to pass through neatly.
  • Secure Angle Locking: Included screws lock the chosen angle firmly in place.
  • Durable PETG Construction: Weather-resistant and robust for outdoor use.
  • Includes All Necessary Screws: For mount assembly, doorbell attachment, and mounting the base to a gang box (typically #6-32 screws).
  • Future-Proof System: Top adapter bracket is replaceable if you change doorbell models (available here).

Installing Your Gang Box Swivel Mount (15-90°)

  1. Tools & Prep: Gather: PH1 & PH2 Philips Screwdrivers/Bits, Level, your doorbell model, and screws for gang box (typically #6-32, often included with this mount or your gang box).
    Turn OFF power at the breaker to the gang box!
  2. Mount Gang Box Base Plate: Pull wires from the gang box through the center hole of the **Swivel Mount Base Plate**. Align the base plate's mounting holes (3.281" spacing) with the screw holes on your single gang box. Secure the base plate to the gang box using appropriate screws (typically #6-32 machine screws - verify if included with this mount or use existing/new gang box screws).
    Ensure base plate is flush and secure. Do NOT overtighten.
  3. Attach Swivel Bracket to Base: Align the **Swivel Bracket** (U-shaped piece) onto the mounted Base Plate. Attach using the four small center screws provided (likely **#4 screws / PH1 driver**).
    Tighten until flush. Clear any plastic debris from pilot holes if needed. Do NOT over-torque.
  4. Attach Doorbell Adapter Bracket to Swivel: Align the **Doorbell Adapter Bracket** (specific to your selected doorbell) with the Swivel Bracket. Secure with the two side pivot screws (typically #4 / PH1), leaving them slightly loose for now to allow angle adjustment.
  5. Set Initial Angle (15-90°): Adjust the Doorbell Adapter Bracket to your desired horizontal and vertical angle.
  6. Wire Doorbell: Connect wires from the gang box to your video doorbell per its manufacturer's instructions. Tuck excess wire into the gang box.
  7. Mount Doorbell onto Adapter Bracket: Attach your video doorbell to the **Doorbell Adapter Bracket** using the screws PROVIDED WITH THIS MOUNT KIT (typically #4 / PH1).
    Use the correct screws provided by *us*. DO NOT use the long wall-mounting screws from your doorbell.
  8. Finalize Angle & Secure: Make any final angle adjustments. Fully tighten the two side pivot screws on the Swivel Bracket to lock the angle.
    Do not overtighten pivot screws!
  9. Restore Power & Test: Turn power back on and test your doorbell.

Follow all electrical safety rules & your doorbell's specific guidelines. Ensure secure attachment to the gang box.

Optimal Viewing for Side Wall Doorbells

This mount is tailored for situations where your doorbell is installed on a single gang box on a wall perpendicular to your door. The 15-90° swivel range ensures you can aim your camera precisely where needed, maximizing your field of view and enhancing security.

Professional & Secure Gang Box Installation

Achieve a clean, professional look with a mount designed to integrate perfectly with standard single gang boxes. The secure locking mechanism keeps your chosen angle fixed, even with daily use.

Optional Add-ons:


  •
    Custom Color

    Standard color is Black. For White, Grey, Brown, or other colors, please add this service to your order.


    Wire Extension Kit

    Need to extend wires within the gang box or to the doorbell? Purchase our extension wire kit.

Installation Video & Examples

General swivel mount installation concept (your base plate will be larger for gang box):

Watch General Swivel Installation Video

(Video demonstrates general assembly principles.)

Questions? Need Help Selecting Your Doorbell Model?

Unsure if this is the right mount for your gang box setup or need help identifying your doorbell model? We can help!

Standard Color: Black. For other colors, add the Color Change Request item.

Doorbell Not Included. Kit includes the 3-piece swivel mount (Gang Box Base Plate, Swivel Bracket, Doorbell-Specific Adapter Bracket) and assembly screws (including typical #6-32 screws for gang box).

Angle Range: Approx. 15-90° horizontal & vertical adjustment.

Material: Printed in durable, outdoor-rated PETG.

3D Printed Quality: Minor cosmetic variations inherent to 3D printing may exist but do not affect function. Contact us with quality concerns.

Order your 15-90° Gang Box Swivel Mount today for the perfect side-wall doorbell angle! Remember to select your doorbell model.
