Ring Wired Doorbell Pro

35° Adjustable Swivel Doorbell Mount |Wired Doorbell Plus |Angle the Doorbell 0-35degrees

35° Adjustable Swivel Doorbell Mount |Wired Doorbell Plus |Angle the Doorbell 0-35degrees

Regular price $40.00 USD
Regular price $50.00 USD Sale price $40.00 USD
Sale Sold out
Shipping calculated at checkout.

Fine-Tune Angle Mount (0-35°) for Ring Wired Doorbell Plus (Formerly Pro)

Which Ring Pro Do You Have? Check Compatibility!

This mount fits the Ring Wired Doorbell Plus (which Ring previously called the Ring Pro). Please confirm your doorbell matches the images below:

Ring Wired Doorbell Plus (Formerly Pro) - Front View Ring Wired Doorbell Plus (Formerly Pro) - Back View
(As an Amazon Associate, I earn from qualifying purchases.)

IMPORTANT: This mount WILL NOT FIT the newer Ring Pro 2 or the original (older) Ring Pro model (which had different mounting). Ring's naming can be very confusing!

Need help? Check our Ring Model Guide or send us a photo: Email shop@doorbellmount.com / Text 1-833-326-6868.

Precision Angle Adjustment (0-35°) for Your Ring Wired Doorbell Plus

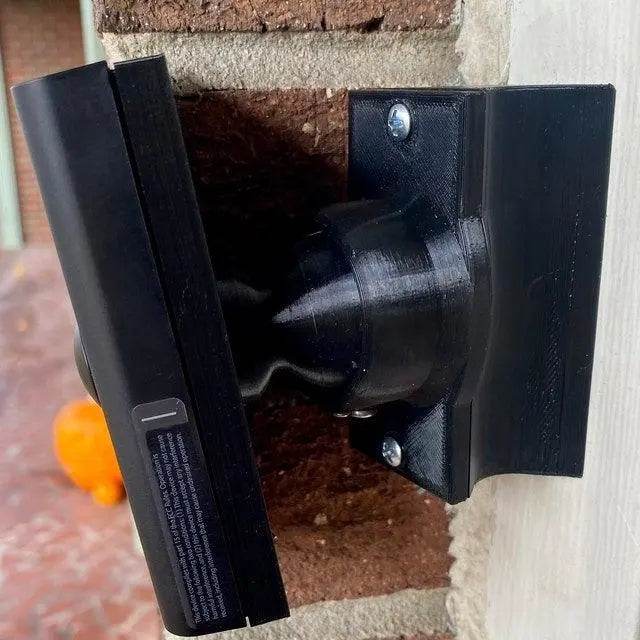

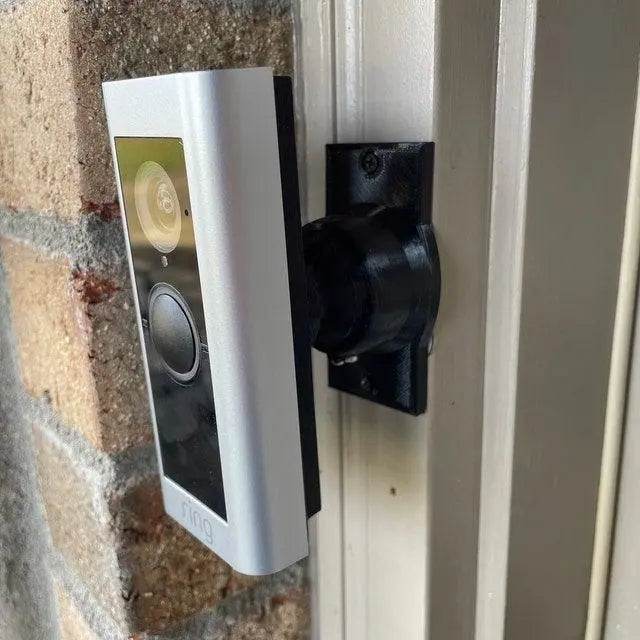

Need just a slight angle adjustment for your Ring Wired Doorbell Plus (Pro)? This low-profile swivel mount provides the perfect camera aiming solution, offering a 0° to 35° range. Ideal for correcting the view when mounted near your door frame, providing a much better alternative to fixed wedge kits.

The dual-axis joint allows smooth, precise control over both horizontal (side-to-side) and vertical (up/down) angles, ensuring you capture exactly the area needed without unnecessary bulk.

View All Mounts for Ring Wired Doorbell Plus (Pro)

Fine-Tune Your Camera View

Get granular control over your doorbell's perspective. Unlike static wedges, this adjustable bracket lets you dial in the exact angle needed within the 0-35° range, eliminating blind spots and optimizing motion detection zones.

Flexible Base Installation: Install the base plate vertically or horizontally on siding, trim, or other surfaces. Your Ring doorbell always remains upright.

Adjustable Bracket Dimensions

  • Base Width: 1.8 inches
  • Base Height: 3.1 inches
  • Mounting Hole Spacing (Base): 2-5/8 inches (center-to-center)
  • Total Extension (@ 0° Angle): Approx. 1.5 inches from wall (low profile)
  • (Base dimensions are consistent; adapters available for narrow surfaces.)

Key Features & Specifications:

  • Compatibility: Specifically for Ring Wired Doorbell Plus (Formerly Ring Pro) - Verify Model!
  • Precise Angle Control (0-35°): Dual-axis swivel for exact horizontal & vertical aiming. Perfect alternative to fixed wedge kits.
  • Low-Profile Design: Sits closer to the wall for a clean installation.
  • Secure Angle Locking: Includes set screws (likely #4 / PH1) to maintain your desired camera view.
  • Versatile Installation: Base mounts vertically or horizontally on surfaces up to 1.8" wide. Ideal siding mount solution.
  • Wire Management: Passthrough hole accommodates doorbell wiring.
  • Durable PETG Construction: Weather-resistant for outdoor longevity.
  • Complete Hardware Kit: Includes mounting screws for base, bracket, angle locking, and doorbell attachment.
  • Future-Proof System: Our adjustable doorbell base system is often universal! Upgrade your doorbell later? Just get a new, affordable adapter bracket (here, approx. $10), not a whole new mount.

Installing Your 0-35° Mount for Wired Doorbell Plus

  1. Tools & Power Off: Gather:
    • Drill (with bits).
    • Screwdrivers/Bits: PH2 Philips (#6 base screws) AND PH1 Philips (#4 bracket/set screws provided) AND the small star-shaped security screwdriver that came with your Ring Doorbell Plus (for side screws).
    • Wall anchors (if needed), Level (optional).
    CRITICAL: Turn OFF power to your existing doorbell/wiring at the circuit breaker!
  2. Mount Base: Route wires through base. Position (screws vertical or horizontal) & attach using #6 screws (PH2 driver) / anchors.
    Drill pilot holes if needed. Don't overtighten base screws.
  3. Attach Swivel Bracket: Route wires through bracket. Align onto base & attach using four center screws (likely #4 / PH1 driver).
    Use correct PH1 bit. Start screws gently to avoid stripping bracket.
  4. Set Initial Angle: Adjust swivel bracket (up/down & left/right) within 0-35°. Lightly tighten one/two set screws (likely #4 / PH1 driver).
  5. Wire Doorbell: Connect wires to the back of your Ring Wired Doorbell Plus per Ring's instructions. Tuck wires neatly.
  6. Attach Doorbell to Bracket:
    • Hook the top of the Ring Wired Doorbell Plus onto the top tab/edge of the swivel mount bracket.
    • Swing the bottom of the doorbell towards the bracket.
    • Secure the doorbell using the small, star-shaped security screws that came *with your Ring Doorbell Plus* into the holes on the *bottom sides* of the doorbell/bracket.
    Use the correct Ring security screwdriver. Do not overtighten these small screws.
  7. Finalize & Secure Angle: Make final view adjustments. Fully tighten all set screws (likely PH1 driver) gently but firmly.
    Hand-tighten set screws is sufficient. Overtightening can damage the mount.
    Turn power back on and test your doorbell.

Always follow electrical safety rules & Ring's guidelines. Use appropriate wall anchors. Using the correct screwdriver bits prevents damage.

Why Choose an Adjustable Mount?

Superior to Fixed Wedges

Standard wedge kits offer limited, fixed angles. Our adjustable swivel mount provides a full 0-35° range on both axes, allowing you to dial in the *exact* perfect view for your Ring Wired Doorbell Plus, improving motion detection accuracy and eliminating blind spots fixed wedges can't solve.

Clean & Professional Look

Achieve optimal camera aiming without bulky or stacked wedges. This low-profile mount provides a secure, purpose-built solution that integrates cleanly with your home's exterior, enhancing curb appeal while improving functionality.

Mount Features & Installation Concept

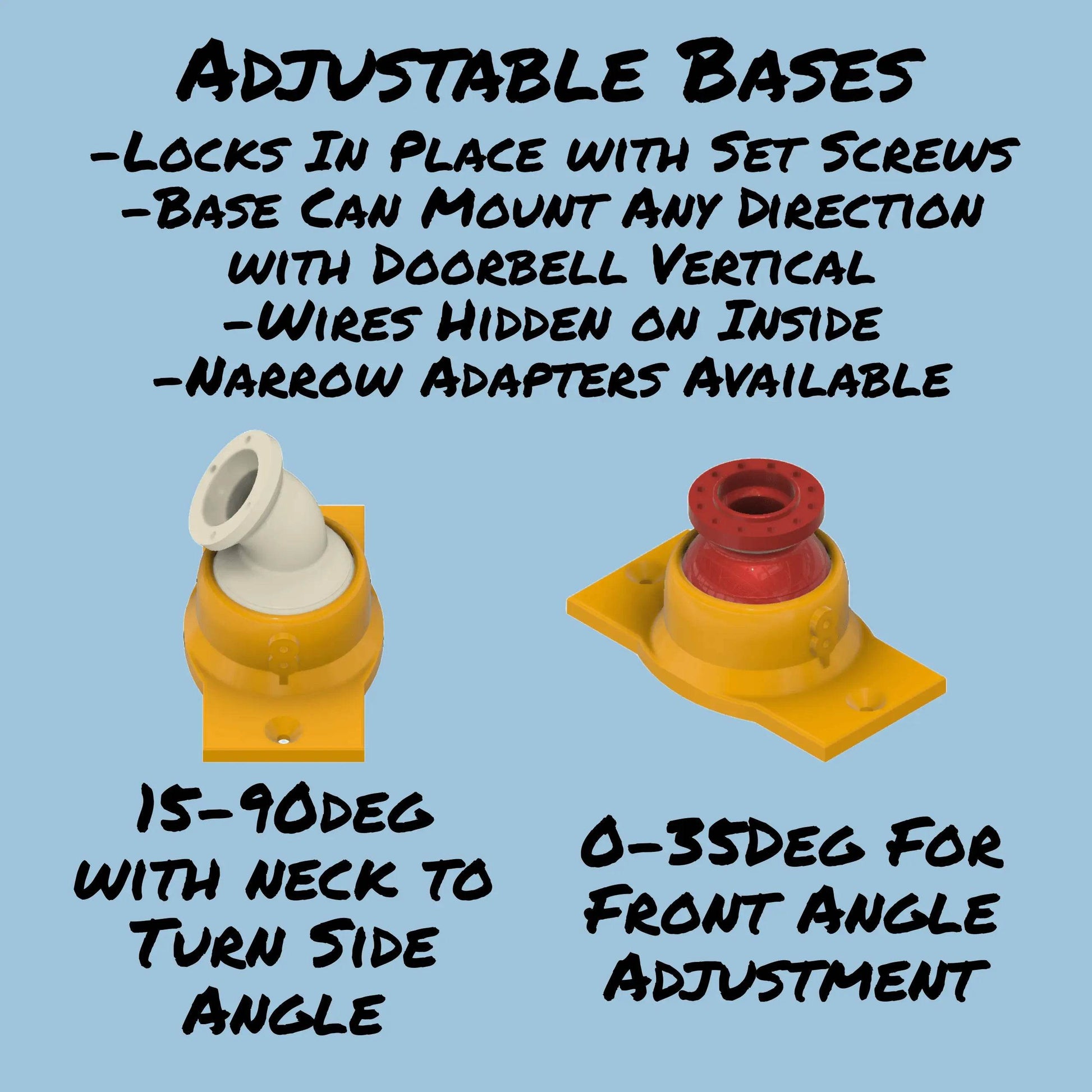

Universal Base Design (Included):

Adjustable Swivel Mount Base Components

General installation concept video:

Watch Installation Video Guide

Model Confirmation & Support

Verify Your Ring Pro Model! If you're unsure if you have the Wired Doorbell Plus (formerly Pro) or another Pro model, please send a picture before ordering!

Need adapters for narrow trim or custom solutions? Contact us!

Default Color is Black. For White, Grey, or Brown, please add the separate Color Change Request item to your order.

Angle Adjustment Note: Provides a continuous adjustment range from approx. 0° (flat) up to 35° relative to the mounting surface on both horizontal and vertical axes.

3D Printed Quality: Our mounts are 3D printed from durable PETG. While structurally sound and functional, minor layer lines or cosmetic imperfections inherent to the printing process may be present. If you have concerns about quality upon arrival, please contact us directly before leaving feedback.

Order this adjustable angle mount today for precise aiming of your Ring Wired Doorbell Plus!
